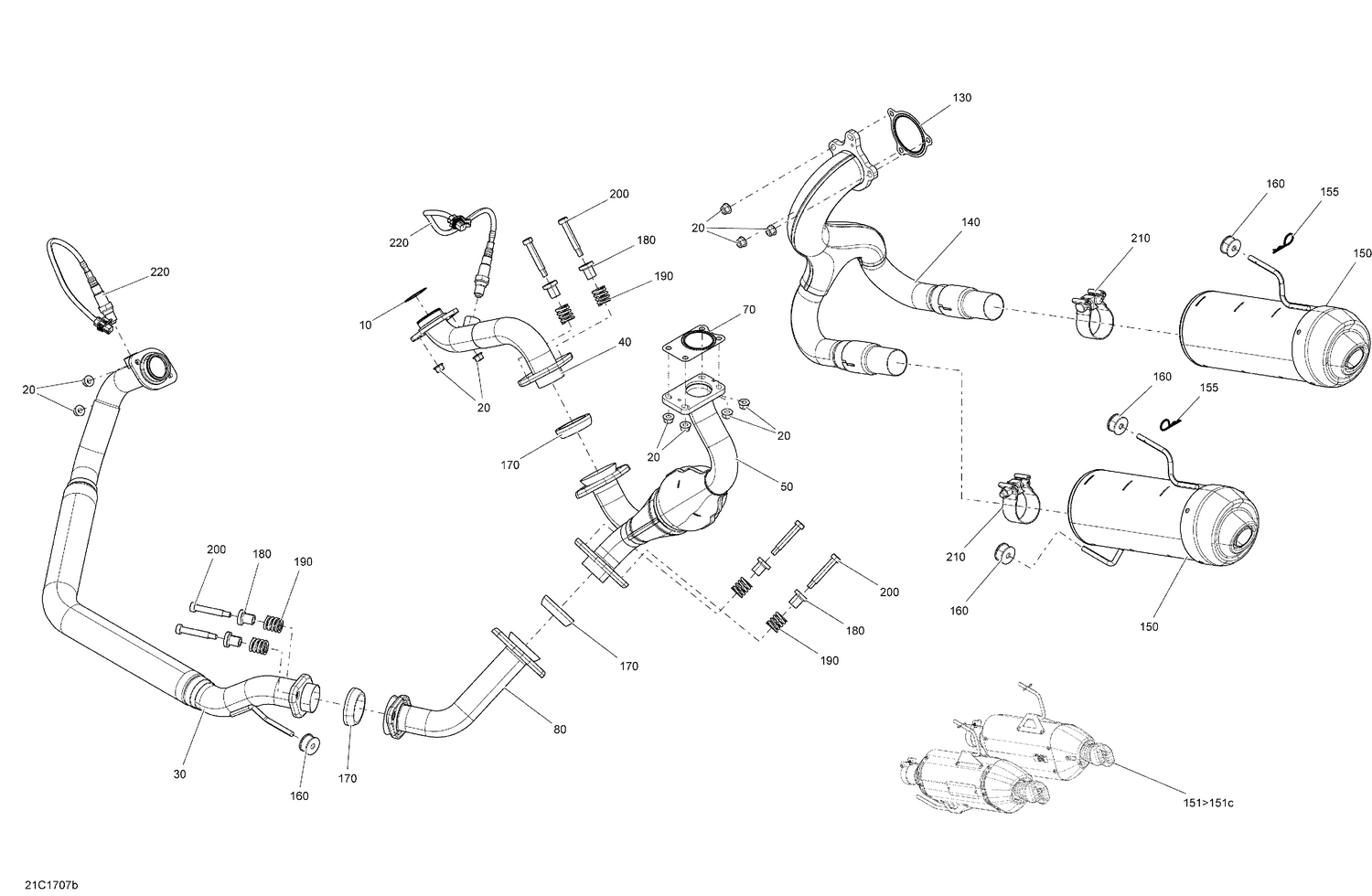

01- Exhaust System - Turbo
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081416 | Hex. Flange Nut M8 |
| 30 | 707601616 | FRONT HEAD PIPE - Call your local BRP dealership |
| 40 | 707602036 | REAR EXHAUST PIPE - Call your local BRP dealership |
| 50 | 707601464 | Head Pipe |
| 60 | 233081416 | Hex. Flange Nut M8 |
| 70 | 707601565 | Seal |
| 80 | 707601546 | PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 130 | 707601566 | Seal |
| 140 | 707601465 | PIPE_EXHAUST OUT WELD - Call your local BRP dealership |
| 145 | 233081416 | Hex. Flange Nut M8 |
| 150 | 707601636 | MUFFLER_EXHAUST - Call your local BRP dealership |
| 155 | 414575600 | Hair Pin |
| 160 | 707600702 | Anti-Vibration Rubber |
| 170 | 707601128 | Seal |
| 180 | 707601254 | Bushing |
| 190 | 707600682 | Spring |
| 200 | 250000658 | Socket Head Screw M10 X 50 |
| 210 | 293650231 | Gear Clamp |
