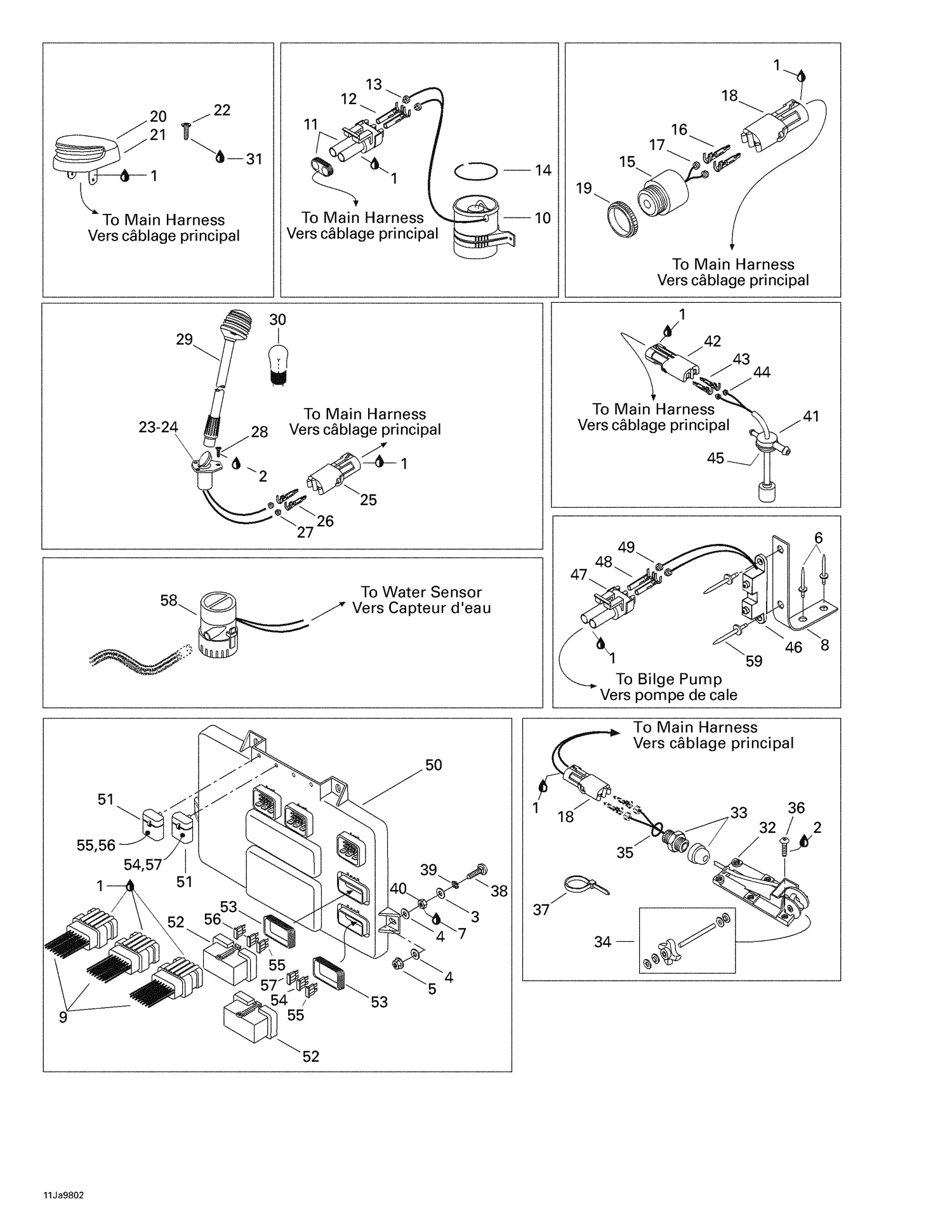

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 3 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 4 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 5 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Rivet 5/32 (For5613) |
| 7 |
293800005 |
Loctite 271, 10 ml |
| 8 |
204470058 |
Sensor Support |
| 9 |
204470186 |
Harness Ass'y (for 5613) |
| 11 |
278000220 |
Male Connector, 2 Circuits |
| 12 |
278000223 |
Female Terminal |
| 13 |
278000218 |
Wire Seal |
| 14 |
204000133 |
BROACH - Call your local BRP dealership |
| 16 |
278000222 |
Male Terminal |
| 17 |
278000218 |
Wire Seal |
| 18 |
278000217 |
Female Housing, 2 Circuits |
| 19 |
278000707 |
Buzzer Nut |
| 20 |
204470071 |
Front Lamp |
| 21 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 22 |
208641660 |
Phillips Screw M4 X 16 This part replaces 211000011. |
| 24 |
204471177 |
Rear Lamp Base Ass'y |
| 25 |
278000217 |
Female Housing, 2 Circuits |
| 26 |
278000222 |
Male Terminal |
| 27 |
278000218 |
Wire Seal |
| 28 |
211000136 |
Screw M4 x 30 |
| 30 |
204470053 |
Bulb |
| 31 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 33 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 34 |
295500108 |
Paddle Wheel Kit |
| 35 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 36 |
216351060 |
SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership |
| 37 |
293750001 |
Tie Wrap 94 mm |
| 38 |
211000182 |
Carriage Bolt 1/4-20 x 2 1/2 |
| 39 |
213400001 |
WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership |
| 40 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 42 |
278000217 |
Female Housing, 2 Circuits |
| 43 |
278000222 |
Male Terminal |
| 44 |
278000218 |
Wire Seal |
| 45 |
204470104 |
Grommet |
| 47 |
278000220 |
Male Connector, 2 Circuits |
| 48 |
278000223 |
Female Terminal |
| 49 |
278000218 |
Wire Seal |
| 51 |
278000379 |
Fuse Holder |
| 52 |
278002102 |
FUSE COVER - Call your local BRP dealership This part replaces 278001069. |
| 53 |
278001070 |
Cover Seal |
| 54 |
278001197 |
Fuse, 10 Amperes |
| 55 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 56 |
278000344 |
Fuse, 5 Amperes |
| 57 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 58 |
278002020 |
Bilge Pump This part replaces 204470220. |
| 204470271 |
Harness |
Ass'y (for 5618) 204470271 |
