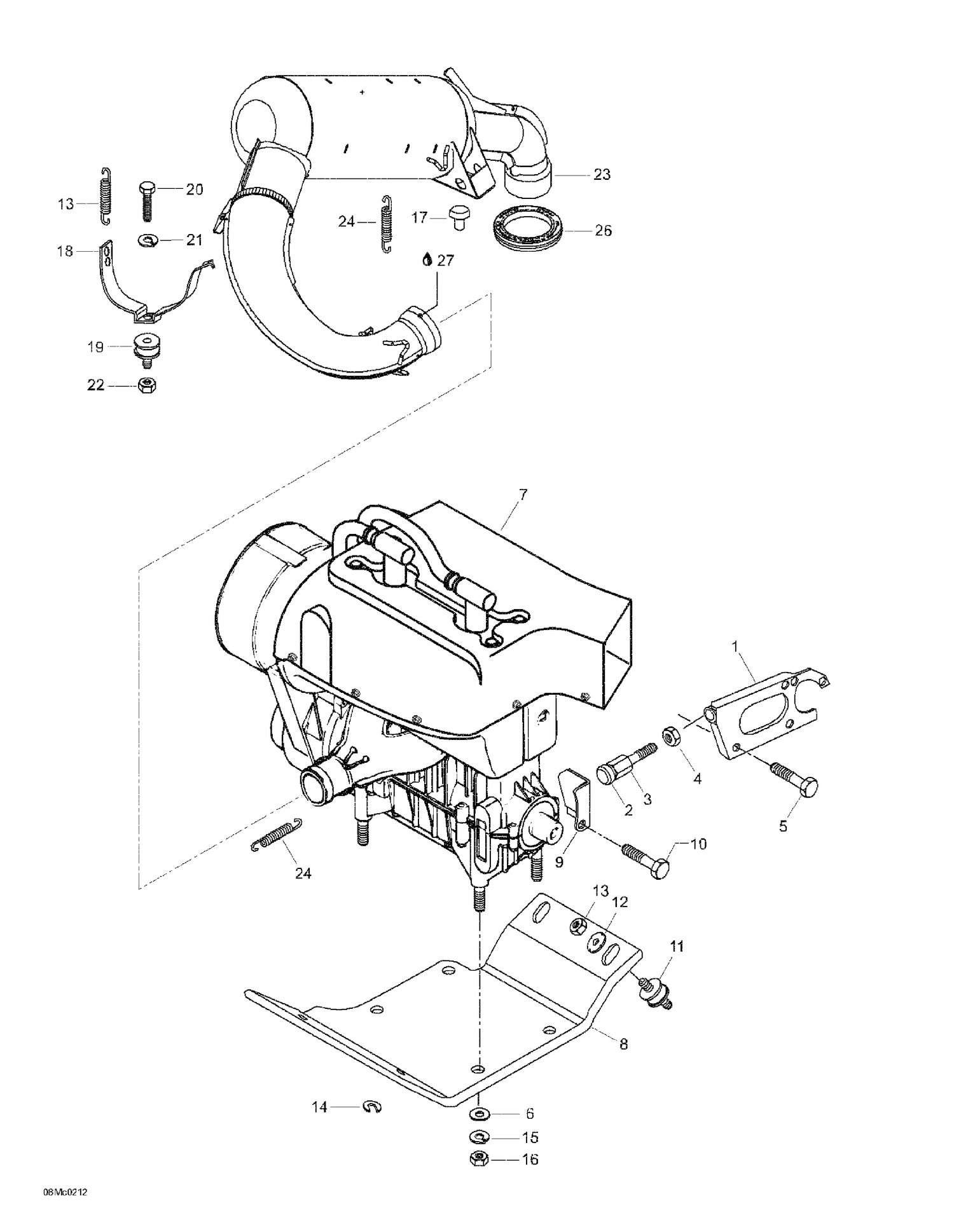

01- Engine Support And Muffler
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M5346583 | Support plate |
| 2 | 570025100 | Rod retainer |
| 3 | 517244200 | Screw |
| 4 | M33063 | Jam nut M12 |
| 5 | M40327 | SCREW-M6X12 - Call your local BRP dealership |
| 6 | 20005 | WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 7 | 400409427 | Moteur «443» |
| 8 | M5246291 | SUPPORT-ENGINE - Call your local BRP dealership |
| 9 | M5344446 | Welded Stopper Plate |
| 10 | 207181644 | Hex. Screw M8 x 16 |
| 11 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 12 | 512056700 | Lock Washer |
| 13 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 14 | M546221 | Washer |
| 15 | M20047 | Lock Washer |
| 16 | 232006414 | Hex. Nut M10 X 1.5 |
| 17 | 570044700 | Rubber Bumper |
| 18 | M535108 | Support |
| 19 | M28245 | Rubber Bumper |
| 20 | M40034 | Screw |
| 21 | 234181401 | Lock Washer 8 mm |
| 22 | 232581414 | Hex. Elastic Stop Nut M8 |
| 23 | 420979823 | Muffler_Exhaust - Call your local BRP dealership |
| 24 | 420938796 | Spring This part replaces 420938795. |
| 25 | M543225 | Spring |
| 26 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
