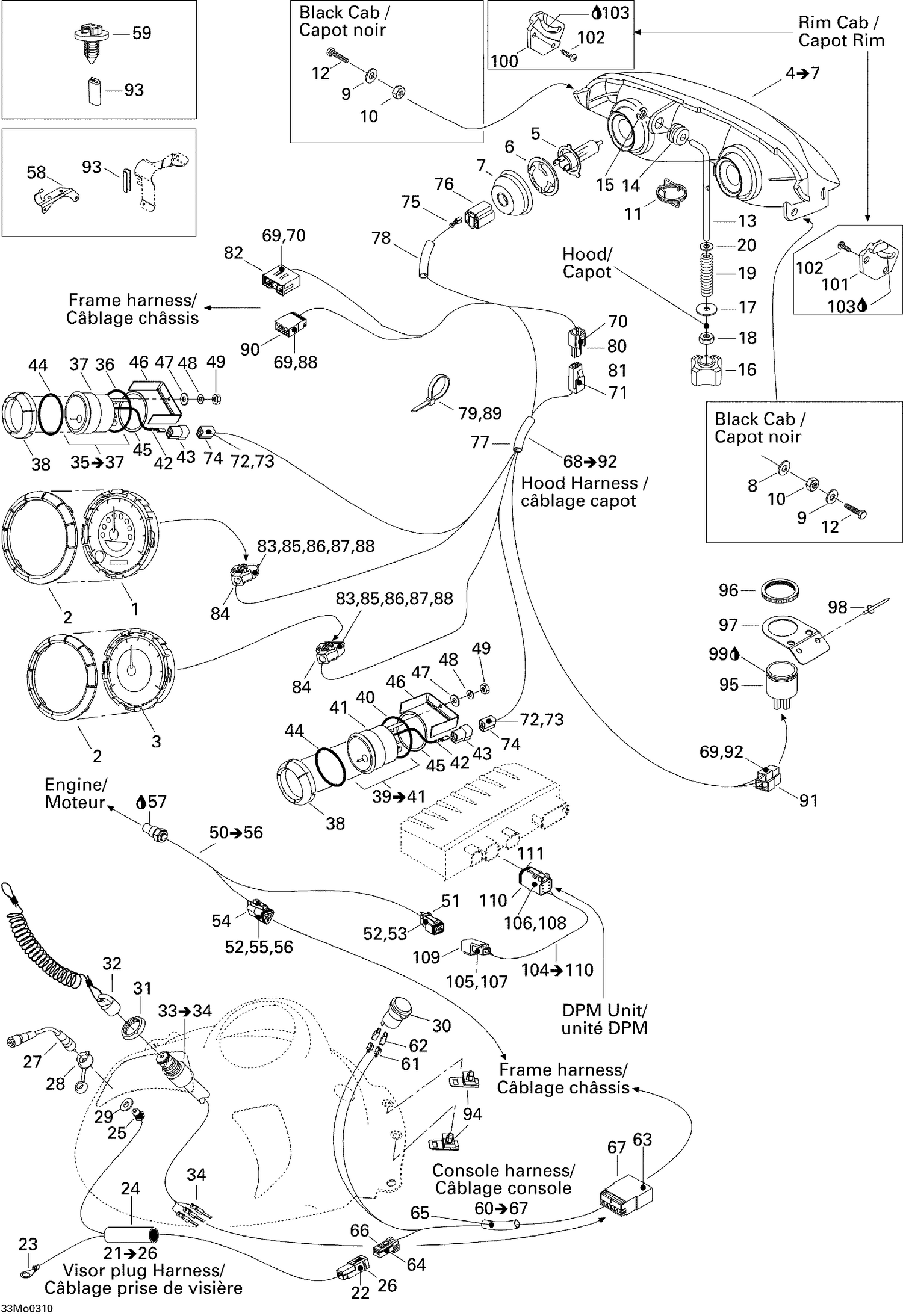

10- Cab Harness

10- Cab Harness

Parts (83)

RefPart NumberDescription
1 515176000 Speedometer
2 515179005 Gauge Ring This part replaces 515175651.
3 515176072 Tachometer
5 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401.
6 515176385 BULB HOLDER - Call your local BRP dealership This part replaces 515175910.
7 515175911 COVER - Call your local BRP dealership
13 517295800 ADJUSTER ROD - Call your local BRP dealership
14 415100800 Grommet - Call your local BRP dealership
15 732610072 Push Nut
16 515175548 Handle - Call your local BRP dealership
17 224060251 Washer
18 232561414 Elastic Stop Nut M6
19 415100600 SPRING - Call your local BRP dealership
20 234061410 Flat Washer 6 mm
22 515175232 Male Terminal
23 515175172 OPEN BARREL - Call your local BRP dealership
24 219704424 Vinyl Tubing, Low Temp 3000Mm Long
25 415096100 Visor Plug
26 515175654 Male Terminal Housing, 2 Circuits
27 515175971 EXTENSION - Call your local BRP dealership
28 572103300 Cap
29 503175800 Washer
30 861507200 Outlet Power Kit, 12 Volts
31 278002963 Safety Nut (DESS Switch) This part replaces 278000508.
32 515178284 DESS This part replaces 515166900.
34 515175232 Male Terminal
36 414807200 O-RING - Call your local BRP dealership
37 414806600 Case Holder
40 414807200 O-RING - Call your local BRP dealership
41 414806600 Case Holder
51 515175670 Female Terminal Housing, 2 Circuits
52 278000632 Female Terminal
53 515175675 Female Lock, 2 Circuits
54 515175671 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
55 515175676 Female Lock, 3 Circuits
56 293000052 Sealing Cap
57 219704455 Was 293800018 Loctite 592, 50 ml
58 515175254 Cable Support
59 293730040 Mount Dart This part replaces 293730018.
61 409010100 Female Terminal
62 409010400 Female Terminal Housing, 1 Circuit
63 515175232 Male Terminal
64 515175231 Female Terminal
65 515175314 GAINE LOW TEMP.VINYL - Call your local BRP dealership
66 515175658 Female Housing, 2 Circuits
67 515175662 Male Terminal Housing, 6 Circuits
69 515175232 Male Terminal
70 515175273 MALE TERMINAL - Call your local BRP dealership
71 515175282 Female Terminal
72 561503100 FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300.
73 561503100 FEMALE TERMINAL - Call your local BRP dealership This part replaces 409203300.
74 409204300 Female Housing
75 515175321 FEMALE TERMINAL - Call your local BRP dealership
76 409202700 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
77 219704408 Tubing 16 Mm 1000Mm Long
78 219704407 Tubing 10 MM 1000MM Long
79 293750001 Tie Wrap 94 mm
80 515175509 MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
81 515175510 FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
82 515175720 MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
83 515175812 Plug
84 515175801 Female Housing, 24 Circuits
85 515175802 Retainer Block
86 515175803 Wire Seal
87 515175804 BLOCK - Call your local BRP dealership
88 515175806 Female Terminal
89 414115200 Tie-Rap 180 mm
90 415128526 Male Terminal Housing, 10 Circuits
91 515176069 MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
92 515176071 Female Terminal
93 219704353 Was 271000110 Protection Trim
94 515175283 Housing Support
95 515176035 HORN - Call your local BRP dealership
96 414805101 PLASTIC NUT - Call your local BRP dealership
97 515175688 PLATE - Call your local BRP dealership
98 390402200 Pop Rivet 3/16"
99 296000309 Silicone Sealant 51388, 300 ml
105 278000631 Male Terminal
106 278000632 Female Terminal
107 409207500 Male Lock, 2 Circuits
108 293000052 Sealing Cap
109 515175665 Male Terminal Housing, 2 Circuits
110 515175673 Male Housing, 6 Circuits
