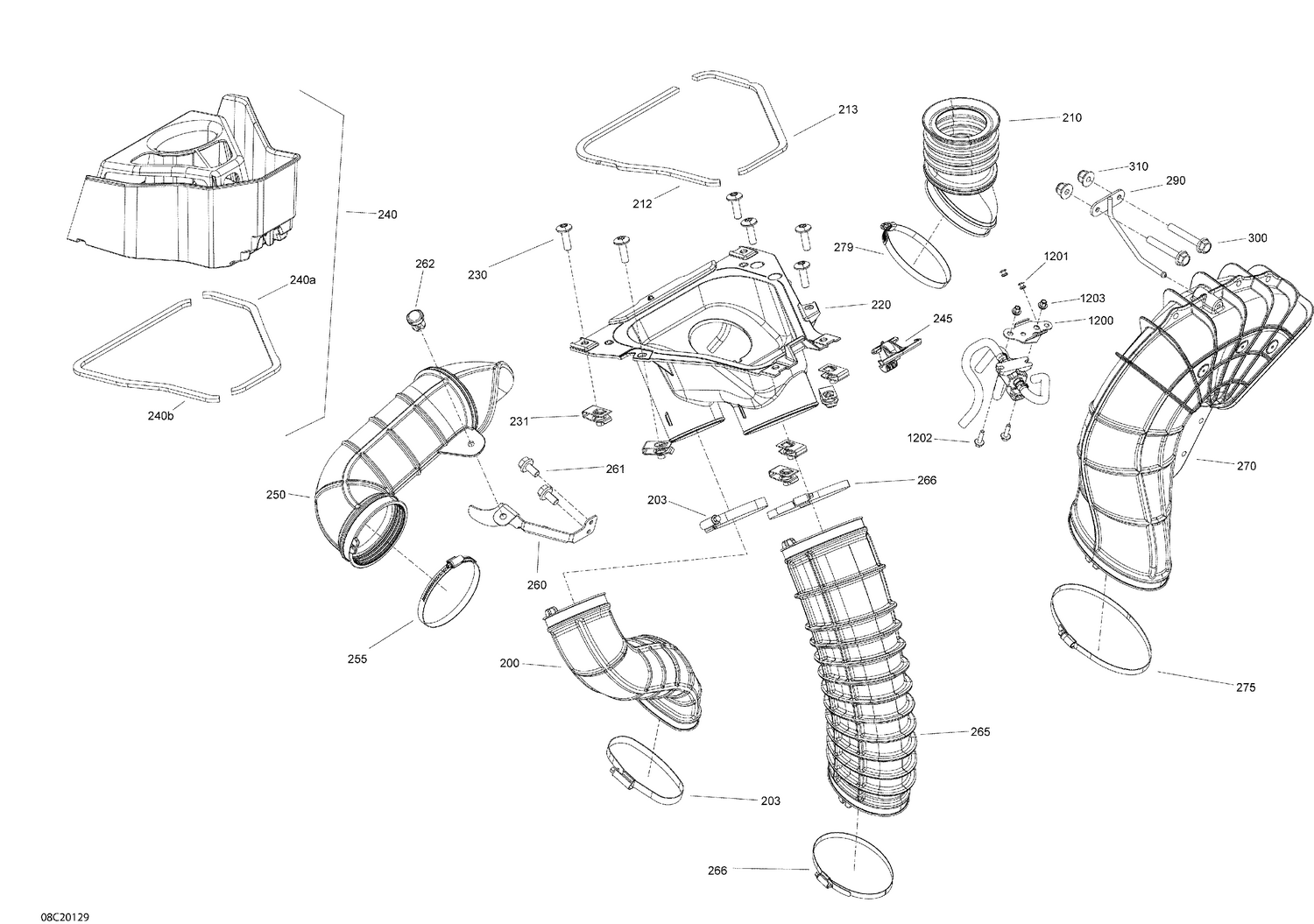

01- Engine - Vehicule - Air Duct
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 706600077 | Front Inlet Duct |
| 203 | 514052924 | Norma Clamp |
| 210 | 707800861 | Hose |
| 212 | 706600137 | Seal |
| 213 | 706600138 | Seal |
| 220 | 706600129 | Adaptor |
| 230 | 250000722 | Torx Screw M6 X 20 |
| 231 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 240a | 706600136 | Seal |
| 240b | 706600139 | Seal |
| 245 | 708000909 | Latch |
| 250 | 706600078 | Front Outlet Duct |
| 255 | 514052983 | Norma Gear Clamp |
| 260 | 706600147 | Hose Support |
| 261 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 262 | 293150230 | Tuflok Plastic Rivet |
| 265 | 706600080 | Rear Inlet Duct |
| 266 | 514052983 | Norma Gear Clamp |
| 270 | 706600081 | Rear Outlet Duct |
| 275 | 514052861 | Gear Clamp (Norma) |
| 279 | 293650096 | Norma Clamp |
| 290 | 707003352 | Rear Duct Support This part replaces 707002056. |
| 300 | 207664044 | Hex. Flange Screw M6 X 40 |
| 310 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1200 | 707002496 | Boost Valve Support |
| 1201 | 390402000 | Pop Rivet 3/16" |
| 1202 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
