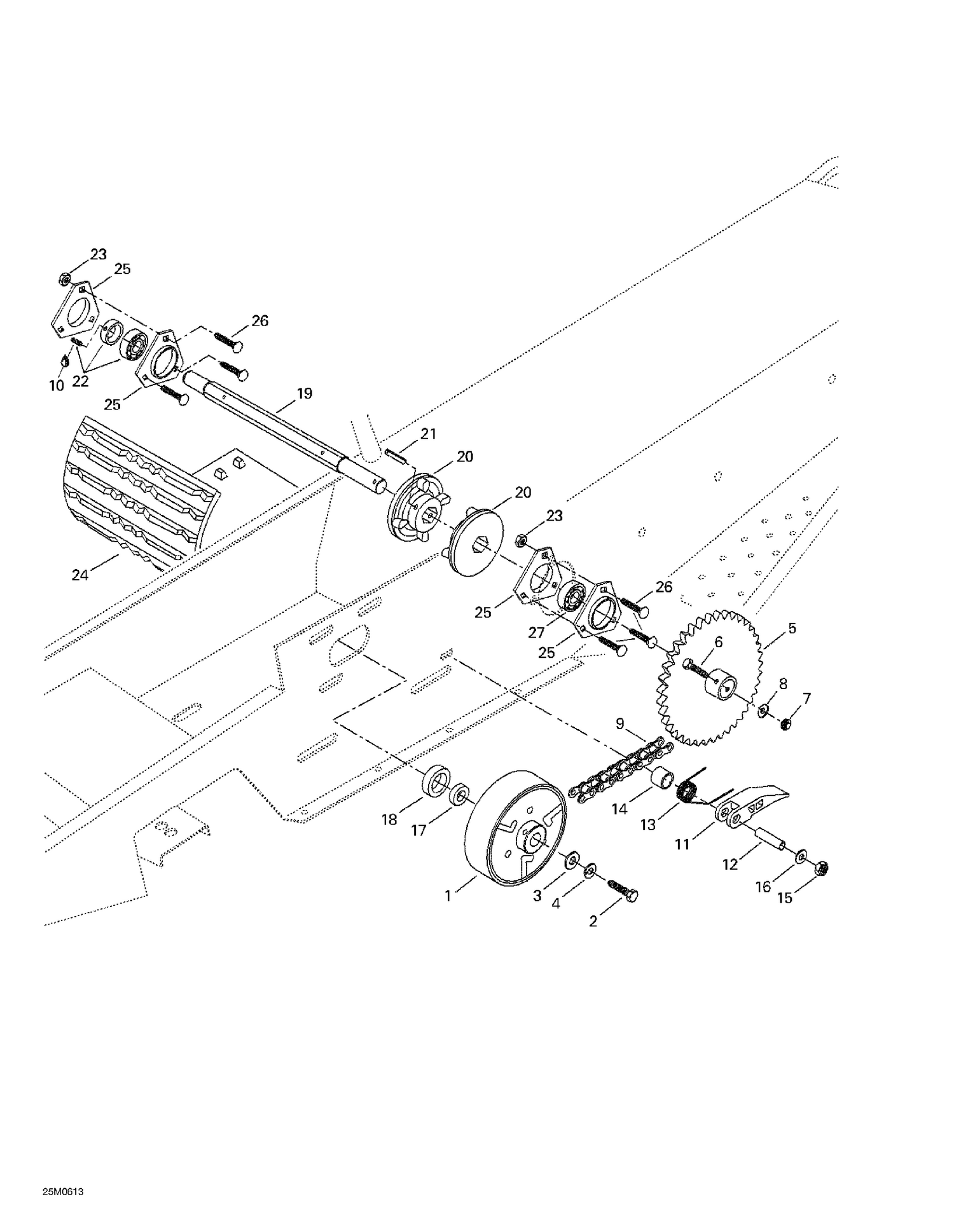

| Ref | Part Number | Description |
|---|
| 1 |
415129554 |
DRIVE PULLEY ASSY - Call your local BRP dealership This part replaces 417217200. |
| 2 |
309808900 |
Hex. Screw 5/16-24 |
| 3 |
234082410 |
Flat Washer 8 mm |
| 4 |
234181401 |
Lock Washer 8 mm |
| 5 |
504149500 |
Sprocket (48 Tooth-Large) |
| 6 |
417126304 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
234081410 |
Flat Washer 8 mm |
| 9 |
412107500 |
CHAIN - Call your local BRP dealership |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
572041600 |
CHAIN TENSIONER - Call your local BRP dealership |
| 12 |
504051600 |
Spacer |
| 13 |
415123000 |
SPRING - Call your local BRP dealership |
| 14 |
504018200 |
SPACER - Call your local BRP dealership |
| 15 |
232561414 |
Elastic Stop Nut M6 |
| 16 |
224061121 |
Flat Washer |
| 17 |
504150500 |
EXTENSION - Call your local BRP dealership |
| 18 |
504150600 |
Spacer |
| 19 |
504152025 |
Drive Axle |
| 20 |
504151794 |
Barbotin 4 dents - Appelez votre concessionnaire BRP local |
| 21 |
211400016 |
ROLLED PIN M6 X 40 - Call your local BRP dealership |
| 22 |
415129552 |
BALL BEARING - Call your local BRP dealership This part replaces 504152072. |
| 23 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 24 |
504152172 |
Track |
| 25 |
501025000 |
FLANGE - Call your local BRP dealership |
| 26 |
207781644 |
CARRIAGE BOLT M8 X 16 - Call your local BRP dealership |
