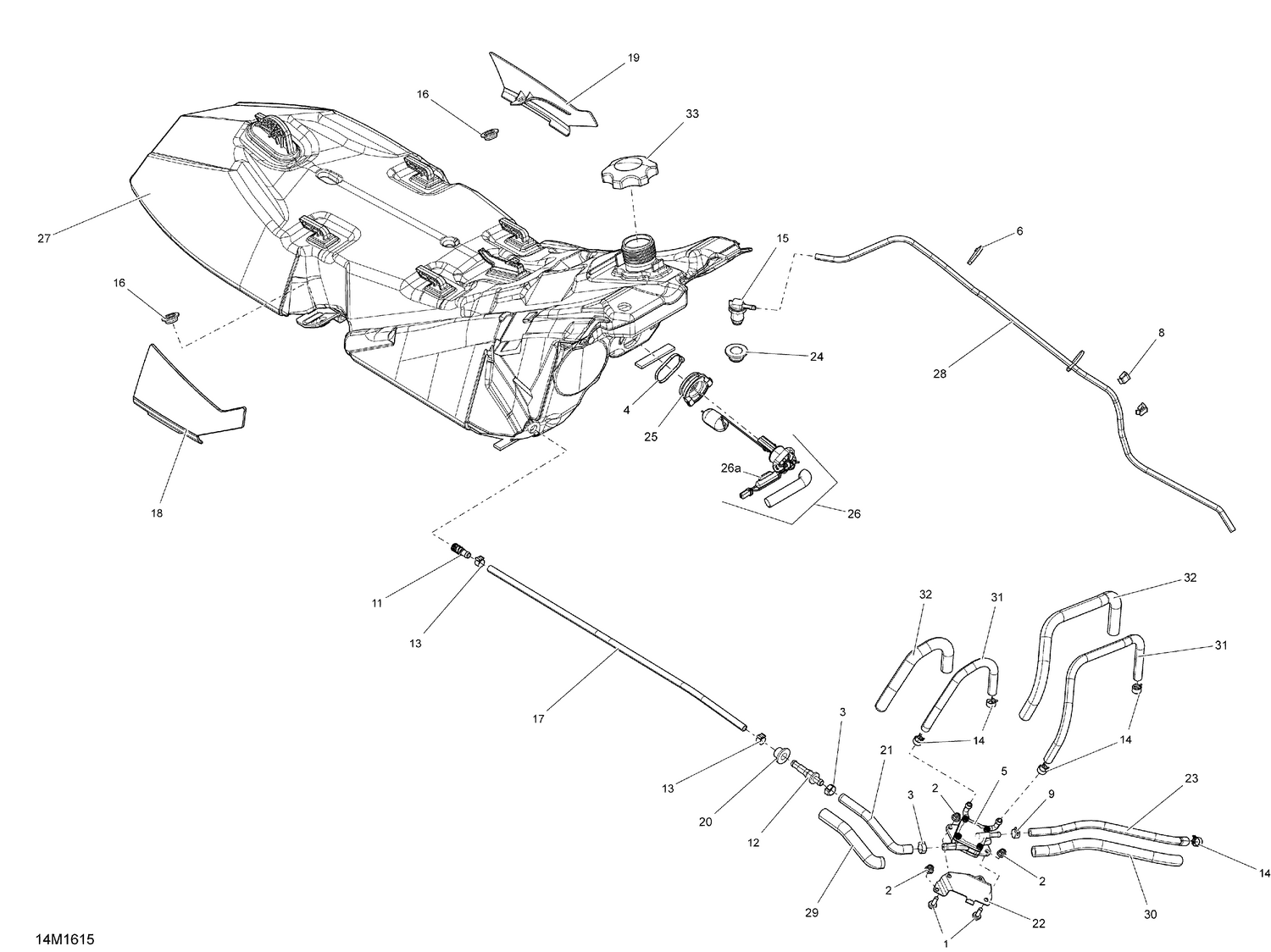

02- Fuel System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3 | 293650053 | Crimp Clamp |
| 4 | 293750008 | Tie Wrap 368 mm |
| 5 | 403901813 | Fuel Pump |
| 6 | 414115200 | Tie-Rap 180 mm |
| 8 | 414227300 | Clip |
| 9 | 414415200 | Spring Clamp |
| 11 | 414872100 | Fuel Filter Strainer |
| 12 | 414872700 | Male Connector |
| 13 | 513033010 | Norma Spring Clamp |
| 14 | 513033029 | Universal Spring Clamp |
| 15 | 513033842 | Check Valve This part replaces 513033188. |
| 16 | 513033326 | Shoulder Bushing |
| 17 | 219704391 | Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 18 | 513033418 | RH Cap |
| 19 | 513033419 | LH Cap |
| 20 | 513033435 | Grommet |
| 21 | 513033499 | Formed Hose |
| 22 | 513033543 | Pump Bracket |
| 23 | 513033553 | Formed Hose |
| 24 | 513033596 | Grommet |
| 25 | 513033606 | Grommet |
| 26 | 513033958 | Sensor Level Fuel This part replaces 513033642. |
| 26a | 710001995 | Fuse, 0.5 Ampère |
| 27 | 513033695 | Fuel Tank |
| 28 | 219704410 | Polyurethane Hose 10000Mm Long |
| 29 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 31 | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 32 | 219704408 | Tubing 16 Mm 1000Mm Long |
