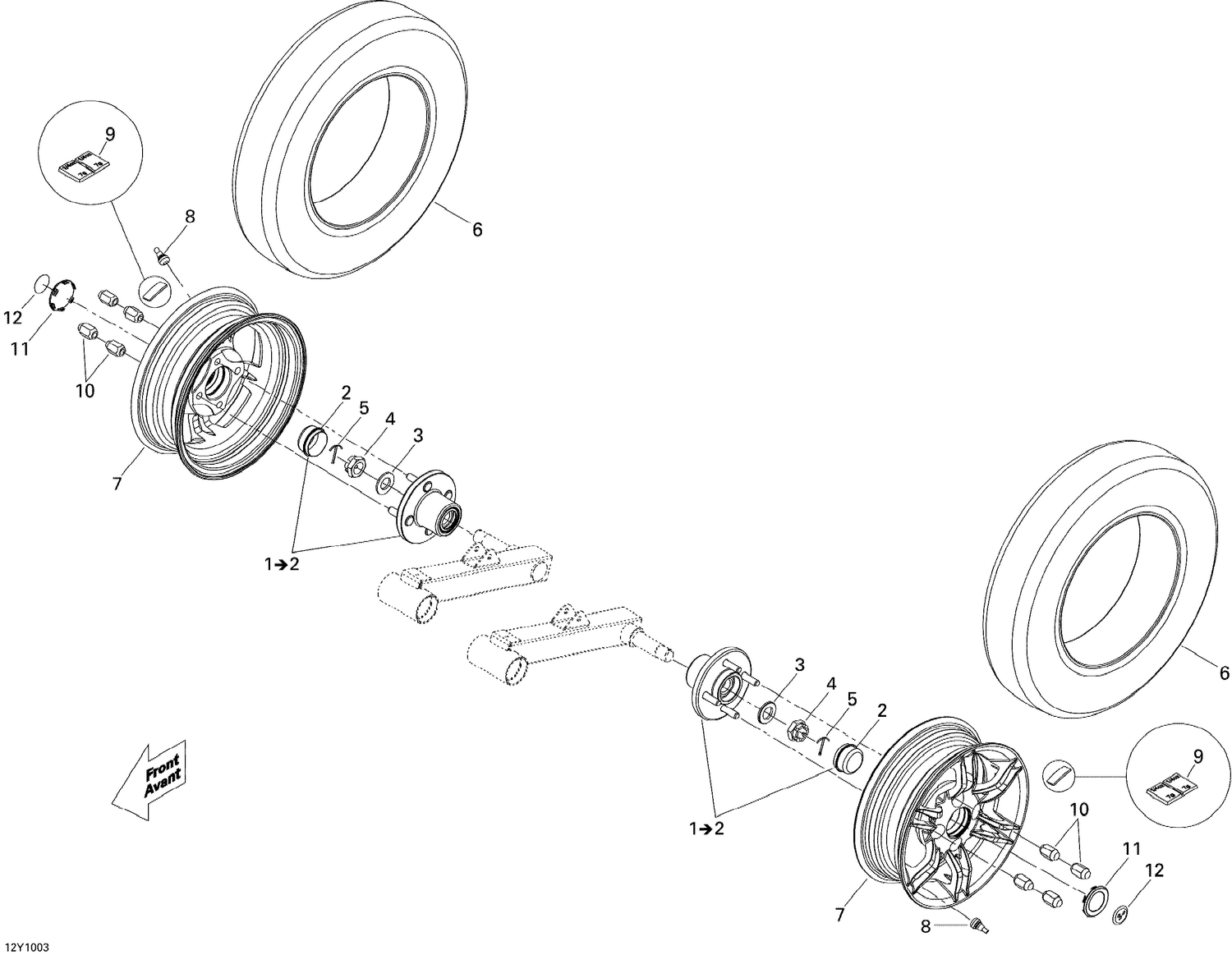

07- Drive System, Front
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219800147 | WHEEL HUB CAP - Call your local BRP dealership |
| 3 | 250200004 | HARDENED WASHER - Call your local BRP dealership |
| 4 | 250100006 | HEX. CASTELLATED NUT M24 - Call your local BRP dealership |
| 5 | 250400047 | Cotter Pin |
| 6 | 705400783 | TIRE_4,80X12 - Call your local BRP dealership |
| 8 | 705400193 | Rim Valve With Cap |
| 9 | 705502106 | Self Adhesive Weight, 5G 20mm This part replaces 705501430. |
| 10 | 250100154 | Chrome, Wheel Nut M12 X 1.5 This part replaces 250100057. |
| 11 | 705400812 | Wheel Cap |
