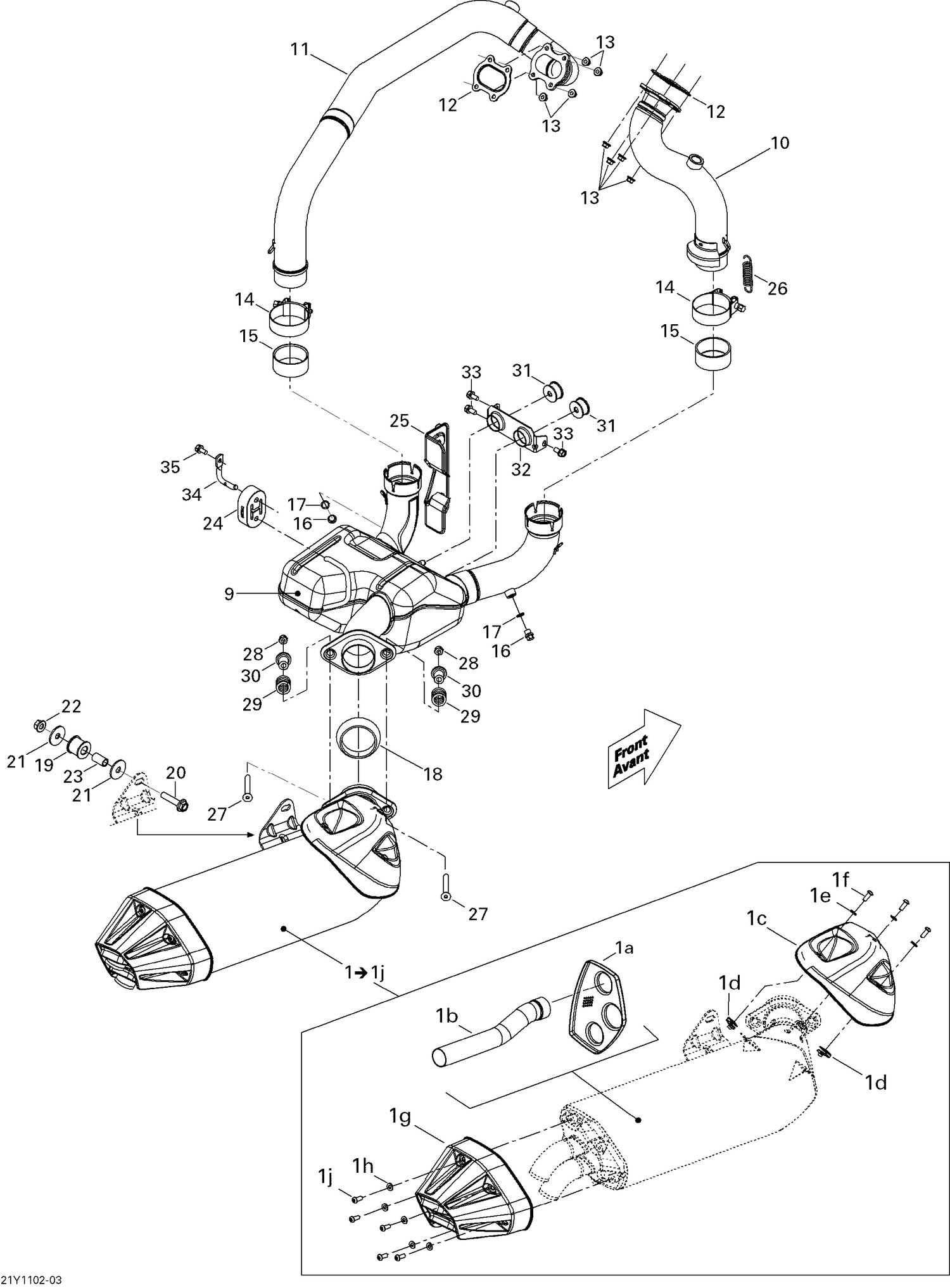

| Ref | Part Number | Description |
|---|
| 1a |
707600810 |
Perforated Back Baffle |
| 1b |
707600834 |
Inside Upper Pipe |
| 1c |
707600866 |
EXHAUST HEAT SHIELD - Call your local BRP dealership |
| 1d |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 1e |
234061600 |
Stainless Flat Washer M6 |
| 1f |
250000437 |
Stainless, Socket Screw, M6X16 S.Grip |
| 1g |
707600867 |
Crystal Silver Muffler End Cap |
| 1h |
234061600 |
Stainless Flat Washer M6 |
| 1j |
250000437 |
Stainless, Socket Screw, M6X16 S.Grip |
| 9 |
707800499 |
PRIMARY EXHAUST MUFFLER - Call your local BRP dealership This part replaces 707800297. |
| 10 |
707601367 |
REAR EXHAUST TUNED PIPE - Call your local BRP dealership This part replaces 707600649. |
| 11 |
707600634 |
PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 12 |
707600296 |
Seal |
| 13 |
233061414 |
Hex. Flange Nut M6 |
| 14 |
707601249 |
COLLAR - Call your local BRP dealership This part replaces 707600651. |
| 15 |
707600650 |
Pipe Slip Joint |
| 16 |
250100122 |
HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership |
| 17 |
414920600 |
Washer |
| 18 |
514053677 |
Exhaust Gasket |
| 19 |
707600683 |
ANTI-VIBRATION RUBBER - Call your local BRP dealership |
| 20 |
207504546 |
Hex. Flange Screw M10 X 45 Scotch Grip |
| 21 |
506150000 |
Washer 10 mm |
| 22 |
233101600 |
Hex. Flange Nut M10 |
| 23 |
705003206 |
BUSHING - Call your local BRP dealership |
| 24 |
707600638 |
Rubber Bumper |
| 25 |
707600653 |
DEFLECTOR - Call your local BRP dealership |
| 26 |
514054226 |
Spring |
| 27 |
250000404 |
SOCKET SCREW, M8 X 75 S. GRIP - Call your local BRP dealership |
| 28 |
232581600 |
Hex. Elastic Nut M8 |
| 29 |
707600682 |
Spring |
| 30 |
707600750 |
Bushing |
| 31 |
707600702 |
Anti-Vibration Rubber |
| 32 |
707600661 |
Front Bracket |
| 33 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 34 |
707600666 |
RETAINING ROD - Call your local BRP dealership |
