Parts Catalog

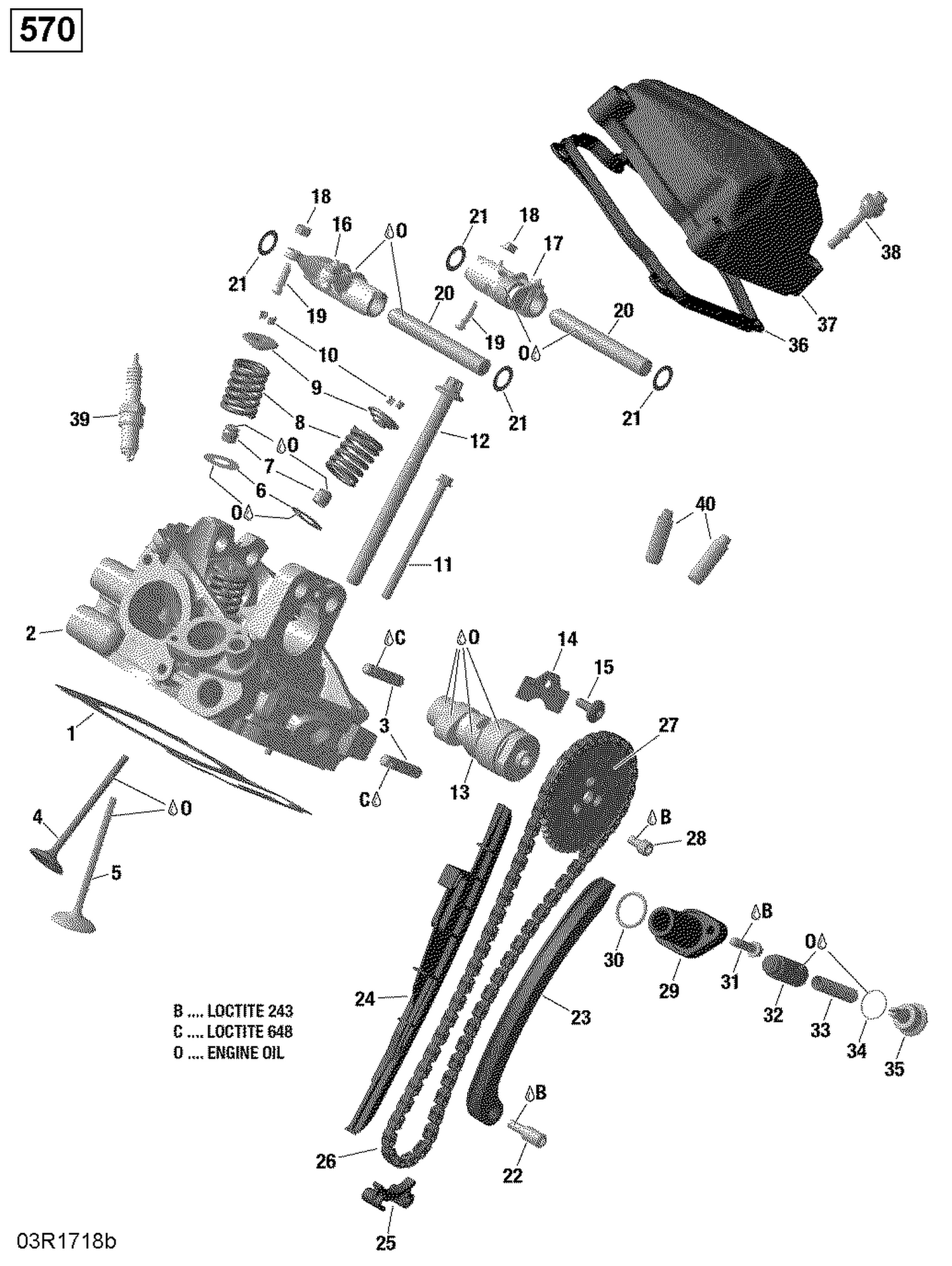

01- ROTAX - Cylinder Head, Rear

Parts (38)

Ref	Part Number	Description
1	420630852	Cylinder Head Gasket
3	420941014	Stud M8 x 26
4	420254359	Intake Valve 31MM This part replaces 420254352.
5	420253171	Exhaust Valve, 27 Mm This part replaces 420254362.
6	420627525	Thrust Washer This part replaces 420627770.
7	420230515	Valve Stem Seal
8	420239295	Valve Spring
9	420254132	Valve Spring Retainer
10	420254120	Cotter Valve
11	420641228	Torx Flange Screw M6 X 85
12	420641551	Torx Screw M10X140 This part replaces 420641550.
13	420281076	CAMSHAFT - Call your local BRP dealership This part replaces 420620744.
14	420627743	Holding Strip
15	420241522	Torx Screw M6 X 16 This part replaces 420241529.
16	420254907	Inlet Rocker Arm This part replaces 420254905.
17	420254911	Exhaust Rocker Arm This part replaces 420254915.
18	420241337	Adjustment Screw M6 X 0.75 This part replaces 420241335.
19	420242913	Hex Nut M6 This part replaces 420242910.
20	420229712	Pin #12, Small, M6 X 90
21	420944382	Shim
22	420240943	Bearing Screw M6
23	420436015	Chain Tension Guide
24	420236584	Chain Guide This part replaces 420236582.
25	420236351	Chain Guide This part replaces 420236350.
26	420297063	Silent Chain
27	420254438	Timing Gear 42T This part replaces 420254435.
28	420840032	Allen Screw M6 X 12 This part replaces 420840031.
29	420236510	Chain Tensioner Housing
30	420430373	O-Ring This part replaces 420430370.
31	420641238	Torx Flange Screw M6 X 25
32	420236521	Chain Tensioner Plunger This part replaces 420236520.
33	420238120	Spring
34	420250890	O-Ring
35	420641150	Plug Screw
36	420630260	Gasket
37	420610393	Valve Cover
38	420440568	Hex Screw M6 X 30 This part replaces 420440567.
39	715900637	Spark Plug NGK DCPR8E This part replaces 707000246.
