Home / BRP / STERN DRIVE / 1998 / 5 / 502BPBYC 1998 / CRANKCASE

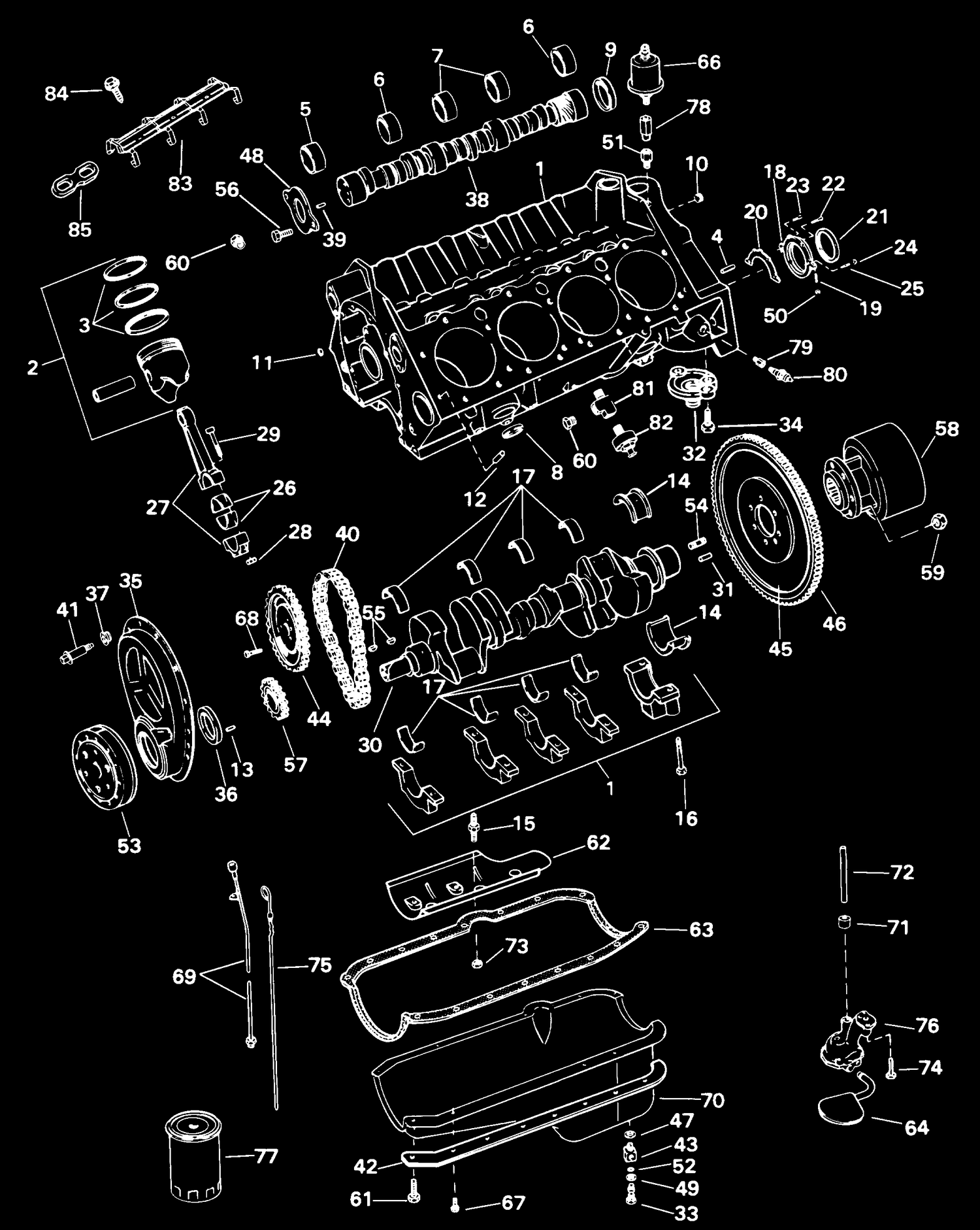

CRANKCASE

CRANKCASE

Parts (103)

RefPart NumberDescription
2 3855742 PISTON & PIN, Standard
2 3855743 PISTON & PIN, 0,5mm O.S.
2 3857667 PISTON & PIN, Standard
2 3857668 PISTON & PIN, 0.005 in. O/S
2 3857669 PISTON & PIN, 0.030 in. O/S
3 3855740 PISTON RING SET, Standard
3 3855741 PISTON RING SET, 0,5mm O.S.
3 3857670 PISTON RING SET, Standard
3 3857672 PISTON RING SET, 0.030 in. O/S
4 3853113 DOWEL PIN
5 3853210 BEARING, Camshaft, #1
6 3853211 BEARING, Camshaft, #2, #4
7 3853212 BEARING, Camshaft, #3
8 0311376 CORE PLUG, Side This part replaces 3852100.
9 3853209 PLUG, Balancer shaft
10 3852471 PLUG
11 3853208 PLUG, Oil gallery, front
12 3853114 DOWEL PIN, Cylinder head
13 3855972 PIN, Camshaft gear
14 3853221 BEARING ASSY, Rear, standard
14 3853222 BEARING ASSY, 0.001 in. U.S.
14 3853223 BEARING ASSY, 0.002 in. U.S.
14 3853224 BEARING ASSY, 0.010 in. U.S.
14 3853225 BEARING ASSY, 0.020 in. U.S.
15 3856146 STUD, Bearing cap
16 3853214 BOLT, Crankshaft, bearing cap
17 3853215 BEARING, #1, 2, 3 & 4, standard
17 3853218 BEARING, #1, 2, 3 & 4, 0.010 in. U/S
17 3853220 BEARING, #1, 2, 3 & 4, 0.020 in. U/S
17 3853381 BEARING, #1, 2, 3 & 4, 0.001 in. U/S
17 3853382 BEARING, #1, 2, 3 & 4, 0.002 in. U/S
18 3856925 RETAINER, Crankshaft seal
19 3853202 STUD, Oil pan
20 3852656 GASKET, Rear seal retainer
21 3856926 SEAL, Crankshaft
22 3853203 BOLT, Seal retainer
23 3853204 BOLT, Seal retainer
24 3853206 NUT, Rear seal retainer
25 3853205 STUD, Rear seal retainer
26 3853149 BEARING, Rod, standard
26 3853150 BEARING, Rod, 0.001 in. U.S.
26 3853151 BEARING, Rod, 0.002 in.
26 3853153 BEARING, Rod, 0.020 in.
26 3856117 BEARING, Rod, 0.010 in. U/S
27 3853957 CONNECTING ROD ASSY.
28 3853148 NUT, Connecting rod
29 3853162 BOLT, Connecting rod
30 3856923 CRANKSHAFT
31 3853200 PIN, Flywheel
32 0383944 ADAPTER & VALVE ASSY This part replaces 3852219.
33 3850822 RETAINER, Oil pan drain
34 0315476 BOLT, Adapter This part replaces 3852133.
35 3856594 COVER, Crankcase front end
36 3855732 SEAL, Front cover
37 3855739 GROMMET, Front cover
38 3856119 CAMSHAFT ASSY.
39 3855972 PIN, Camshaft gear
40 3852685 CHAIN, Camshaft
41 3855736 SCREW, Front cover, long
41 3855737 SCREW, Front cover, short
41 3855738 STUD, Front cover
42 3856120 REINFORCEMENT, Port
42 3856121 REINFORCEMENT, Starboard
43 3855112 FITTING, Oil drain
44 3856114 SPROCKET, Camshaft
45 3853958 FLYWHEEL
46 3853207 GEAR, Flywheel
47 3851981 GASKET, Fitting to oil pan
48 3855998 RETAINER, Camshaft
50 3856930 NUT, Oil pan
51 3855776 ADAPTER, Oil sender
52 3853674 O-RING, Oil drain
53 3856924 DAMPER ASSY.
54 3853274 STUD, Coupler
55 3852663 KEY, Crankshaft
56 3853172 BOLT, Balancer retainer
57 3852690 SPROCKET, Crankshaft
58 3853917 COUPLER ASSY.
59 3853273 LOCKNUT, Coupler
60 0909601 PLUG, Manifold This part replaces 3850802.
61 3853173 BOLT, Camshaft sprocket
62 3852744 BAFFLE, Oil pan
63 3856138 GASKET, Oil pan
64 3856126 PICKUP SCREEN
66 3857532 OIL PRESSURE SENDER
67 3852595 BOLT, Fuel rail
68 3853173 BOLT, Camshaft sprocket
69 3850249 TUBE ASSY., Oil drain
70 3850040 OIL PAN
71 3853199 RETAINER, Distributor to oil pump
72 3853198 SHAFT, Distributor to oil pump
73 3857664 NUT, Oil pan baffle
74 3853234 BOLT, Pump to block
75 3850474 GAUGE, Oil level
76 3856125 OIL PUMP ASSY.
77 0502901 OIL FILTER
78 3852503 ELBOW, Oil pressure switch
79 3850660 FITTING, Oil pressure switch
80 0379948 SCREW, Retainer to adapter This part replaces 3852215.
81 3850490 FITTING, Knock sensor
82 3850357 SENSOR, Knock
83 3856144 RETAINER, Lifter guide
84 3853171 SCREW, Oil pan, front
