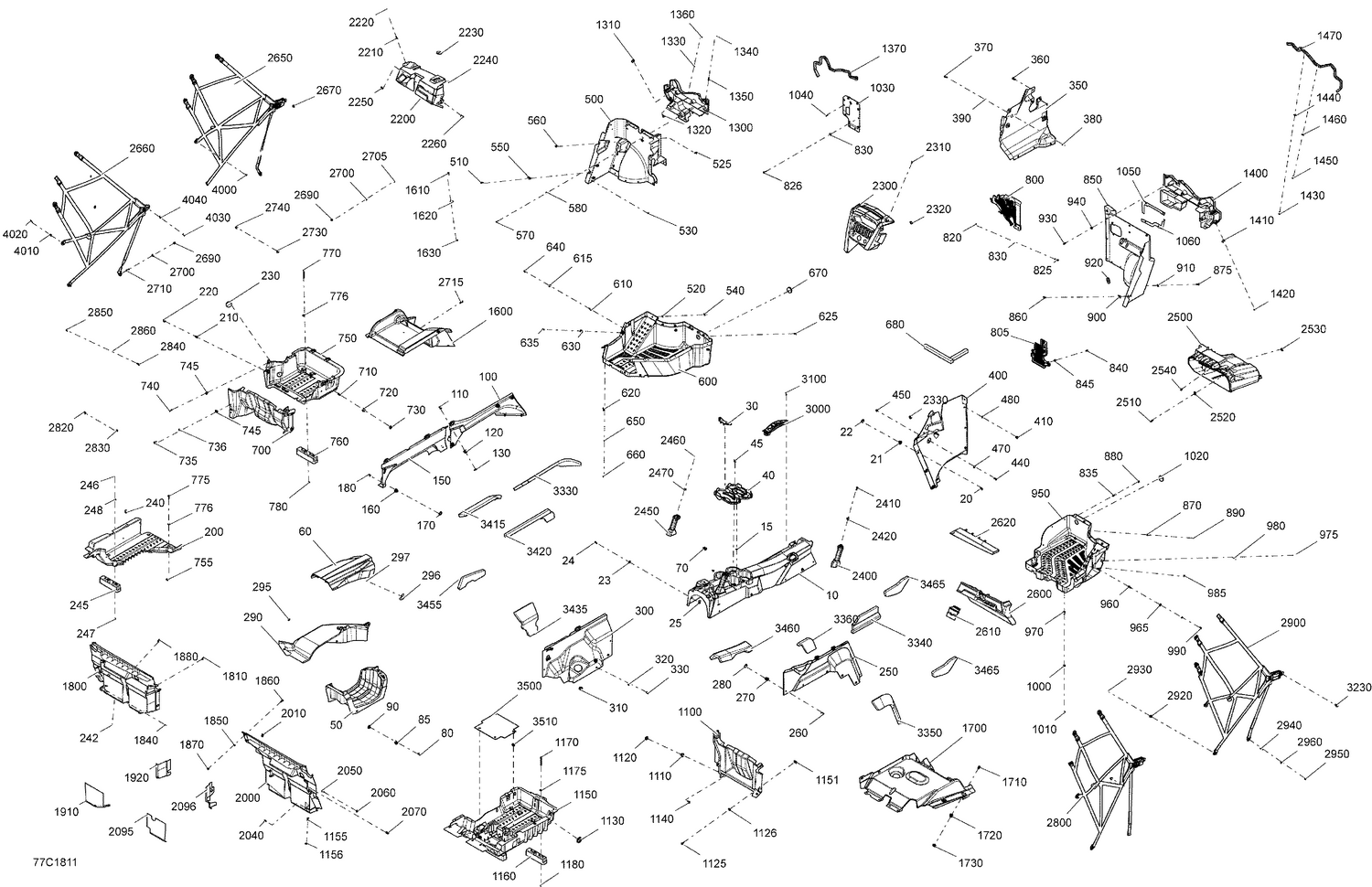

09- Cab Interior Maverick MAX - Except Package XMR
Parts (251)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715003370 | Front Console Kit |
| 15 | 732610072 | Push Nut |
| 20 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 21 | 707900133 | Insert |
| 22 | 503189273 | Washer |
| 23 | 234062670 | Stainless Steel Flat Washer |
| 24 | 250000722 | Torx Screw M6 X 20 |
| 25 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 30 | 707900036 | Cup Retainer |
| 40 | 707900100 | Cup Holder |
| 45 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 50 | 707900075 | Rear Central Console |
| 60 | 707900229 | Rear Console Cover Kit |
| 70 | 517303756 | Grommet |
| 80 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 85 | 707900133 | Insert |
| 90 | 503189273 | Washer |
| 100 | 707900001 | LH Side Console |
| 110 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 120 | 707900133 | Insert |
| 130 | 503189273 | Washer |
| 150 | 707900633 | Rear Left Dash |
| 160 | 707900133 | Insert |
| 170 | 503189273 | Washer |
| 180 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 200 | 707900387 | Under cover |
| 210 | 207662054 | Hex. Flange Screw M6 X 20 |
| 220 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 230 | 293250242 | Rubber Cover |
| 240 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 242 | 506151252 | Washer |
| 245 | 707900099 | Support Plate |
| 246 | 207667056 | Hex. Flange Screw M6 X 70 |
| 247 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 248 | 234062670 | Stainless Steel Flat Washer |
| 250 | 707900002 | RH Side Console |
| 260 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 270 | 707900133 | Insert |
| 280 | 503189273 | Washer |
| 290 | 707900388 | Rear Floor cap |
| 295 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 296 | 705205445 | INSERT SUPPORT - Call your local BRP dealership |
| 297 | 293150103 | Pop Rivet 3/16" |
| 300 | 707900080 | RH Rear Console Panel |
| 310 | 707900133 | Insert |
| 320 | 503189273 | Washer |
| 330 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 350 | 707900193 | Front Side Dash Panel |
| 360 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 370 | 250000722 | Torx Screw M6 X 20 |
| 380 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 390 | 234062670 | Stainless Steel Flat Washer |
| 400 | 707900021 | RH Fixe Side Console |
| 410 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 440 | 250000722 | Torx Screw M6 X 20 |
| 450 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 470 | 234062670 | Stainless Steel Flat Washer |
| 480 | 506151252 | Washer |
| 500 | 707900175 | LH Front Upper Floor |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 250000712 | Torx Screw M6 X 20 |
| 525 | 250000758 | Torx Screw M6 X 25 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 540 | 234062670 | Stainless Steel Flat Washer |
| 550 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 560 | 234062670 | Stainless Steel Flat Washer |
| 570 | 250000720 | Torx Screw K50 X 16 |
| 580 | 234062410 | Flat Washer 6 mm |
| 600 | 707900022 | LH Lower Floor |
| 610 | 250000712 | Torx Screw M6 X 20 |
| 615 | 234062670 | Stainless Steel Flat Washer |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 625 | 250000807 | Torx Truss Screw M6 X 25 |
| 630 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 635 | 250000722 | Torx Screw M6 X 20 |
| 640 | 233261494 | Hex. Flange Elastic Nut M6 |
| 650 | 234062670 | Stainless Steel Flat Washer |
| 660 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 670 | 293250242 | Rubber Cover |
| 680 | 219704382 | Was 293250381 Seal Tray |
| 700 | 707900082 | LH Rear Upper Floor Cover |
| 710 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 720 | 707900133 | Insert |
| 730 | 503189273 | Washer |
| 735 | 250000722 | Torx Screw M6 X 20 |
| 736 | 234062670 | Stainless Steel Flat Washer |
| 740 | 250000758 | Torx Screw M6 X 25 |
| 745 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 750 | 707900331 | Rear Floor |
| 755 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 760 | 707900099 | Support Plate |
| 770 | 207667056 | Hex. Flange Screw M6 X 70 |
| 775 | 207662054 | Hex. Flange Screw M6 X 20 |
| 776 | 234062670 | Stainless Steel Flat Washer |
| 780 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 800 | 707900178 | Grille |
| 805 | 707900180 | Grille |
| 820 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 825 | 250000843 | Torx Truss Screw M6 X 30 |
| 826 | 250000722 | Torx Screw M6 X 20 |
| 830 | 234062670 | Stainless Steel Flat Washer |
| 835 | 250000843 | Torx Truss Screw M6 X 30 |
| 840 | 250000720 | Torx Screw K50 X 16 |
| 845 | 250200025 | Washer M5 |
| 850 | 707900004 | RH Front Floor |
| 860 | 250000722 | Torx Screw M6 X 20 |
| 870 | 250000712 | Torx Screw M6 X 20 |
| 875 | 250000758 | Torx Screw M6 X 25 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
| 890 | 234062670 | Stainless Steel Flat Washer |
| 900 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 910 | 234062670 | Stainless Steel Flat Washer |
| 920 | 705003668 | Oblong Grommet |
| 930 | 250000720 | Torx Screw K50 X 16 |
| 940 | 234062410 | Flat Washer 6 mm |
| 950 | 707900023 | RH Lower Floor |
| 960 | 250000712 | Torx Screw M6 X 20 |
| 965 | 234062670 | Stainless Steel Flat Washer |
| 970 | 250000722 | Torx Screw M6 X 20 |
| 975 | 250000807 | Torx Truss Screw M6 X 25 |
| 980 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 985 | 250000722 | Torx Screw M6 X 20 |
| 990 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 234062670 | Stainless Steel Flat Washer |
| 1010 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 1020 | 293250242 | Rubber Cover |
| 1030 | 707900204 | Deflector |
| 1040 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1050 | 293250252 | Upper Seal |
| 1060 | 293250253 | Bottom Seal |
| 1100 | 707900083 | Seat Cover |
| 1110 | 707900133 | Insert |
| 1120 | 503189273 | Washer |
| 1125 | 250000722 | Torx Screw M6 X 20 |
| 1126 | 234062670 | Stainless Steel Flat Washer |
| 1130 | 293250242 | Rubber Cover |
| 1140 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1150 | 707900670 | RH Lower Rear Floor |
| 1151 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1155 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1156 | 506151252 | Washer |
| 1160 | 707900099 | Support Plate |
| 1170 | 207667056 | Hex. Flange Screw M6 X 70 |
| 1175 | 234062670 | Stainless Steel Flat Washer |
| 1180 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 1300 | 707900561 | Floor Support LH |
| 1310 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1320 | 250000722 | Torx Screw M6 X 20 |
| 1330 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1340 | 224060201 | Flat Washer |
| 1350 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1360 | 224060201 | Flat Washer |
| 1370 | 219704365 | Was 293200017 Neoprene Seal |
| 1400 | 707900562 | RIGHT FLOOR SUPPORT - Call your local BRP dealership |
| 1410 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1420 | 250000722 | Torx Screw M6 X 20 |
| 1430 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1440 | 224060201 | Flat Washer |
| 1450 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1460 | 224060201 | Flat Washer |
| 1470 | 219704365 | Was 293200017 Neoprene Seal |
| 1600 | 707900130 | Under Seat Cover |
| 1610 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1620 | 707900133 | Insert |
| 1630 | 503189273 | Washer |
| 1700 | 707900006 | RH Under Seat Plate |
| 1710 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1720 | 707900133 | Insert |
| 1730 | 503189273 | Washer |
| 1800 | 707900220 | DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership |
| 1810 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1840 | 250000720 | Torx Screw K50 X 16 |
| 1850 | 250200040 | Flat Washer |
| 1860 | 250000712 | Torx Screw M6 X 20 |
| 1870 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1880 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1910 | 707900182 | Heat Shield |
| 1920 | 707900183 | Heat Shield |
| 2000 | 707900219 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 2010 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2040 | 250000720 | Torx Screw K50 X 16 |
| 2050 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2060 | 234062670 | Stainless Steel Flat Washer |
| 2070 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2095 | 707900167 | Heat Shield |
| 2096 | 707900184 | Heat Shield |
| 2200 | 715001250 | Dashboard Ass'y |
| 2210 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2220 | 234062670 | Stainless Steel Flat Washer |
| 2230 | 705003841 | Support Plate |
| 2240 | 517302785 | Edge Clip |
| 2250 | 250000722 | Torx Screw M6 X 20 |
| 2260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2300 | 707900019 | Lower Central Dashboard Ass'y |
| 2310 | 250000724 | Torx Screw M5 X 20 |
| 2320 | 250000958 | Panel Nut M5 X 0.8 |
| 2330 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2400 | 707900011 | Passenger Handle |
| 2410 | 250000722 | Torx Screw M6 X 20 |
| 2420 | 707900048 | Connector Tube |
| 2450 | 707900103 | Handle |
| 2460 | 250000722 | Torx Screw M6 X 20 |
| 2470 | 707900048 | Connector Tube |
| 2500 | 707900009 | Storage Bin |
| 2510 | 207662054 | Hex. Flange Screw M6 X 20 |
| 2520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2530 | 414859400 | CAP - Call your local BRP dealership |
| 2540 | 293830005 | Rubber Bumper |
| 2600 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
| 2610 | 707900031 | Latch |
| 2620 | 707900062 | Trim Glove Box |
| 2650 | 707900237 | Front LH Safety Net |
| 2660 | 707900238 | Front RH Safety Net |
| 2670 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2690 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2700 | 234062410 | Flat Washer 6 mm |
| 2705 | 234062670 | Stainless Steel Flat Washer |
| 2710 | 207662054 | Hex. Flange Screw M6 X 20 |
| 2715 | 250000758 | Torx Screw M6 X 25 |
| 2730 | 234082410 | Flat Washer 8 mm |
| 2740 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2800 | 707900239 | Rear LH Safety Net |
| 2820 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2830 | 234082410 | Flat Washer 8 mm |
| 2840 | 207662054 | Hex. Flange Screw M6 X 20 |
| 2850 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2860 | 234062670 | Stainless Steel Flat Washer |
| 2900 | 707900240 | Rear RH Safety Net |
| 2920 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2930 | 234082410 | Flat Washer 8 mm |
| 2940 | 207662054 | Hex. Flange Screw M6 X 20 |
| 2950 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2960 | 234062670 | Stainless Steel Flat Washer |
| 3000 | 707900088 | Shift Lever Indicator |
| 3100 | 250000728 | Torx Screw M6 X 25 |
| 3330 | 707900621 | LH Lower Lateral Console Foam |
| 3340 | 707900622 | RH Lateral Console Foam |
| 3350 | 707900623 | RH Lateral Console Foam |
| 3360 | 707900624 | RH Lateral Console Foam |
| 3415 | 707900625 | LH Rear Lateral Foam |
| 3420 | 707900626 | LH Rear Lateral Foam |
| 3435 | 707900627 | RH Rear Lateral Foam |
| 3455 | 707900628 | Front Central Foam |
| 3460 | 707900629 | Front Central Foam |
| 3465 | 707900630 | Front Central Foam |
| 3500 | 707900163 | Battery Cover |
| 3510 | 705003264 | Grommet |
| 4000 | 250000742 | Torx Screw M5 X 14 |
| 4010 | 250200040 | Flat Washer |
| 4020 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 4030 | 207682044 | Hex. Flange Screw M8 X 20 |
