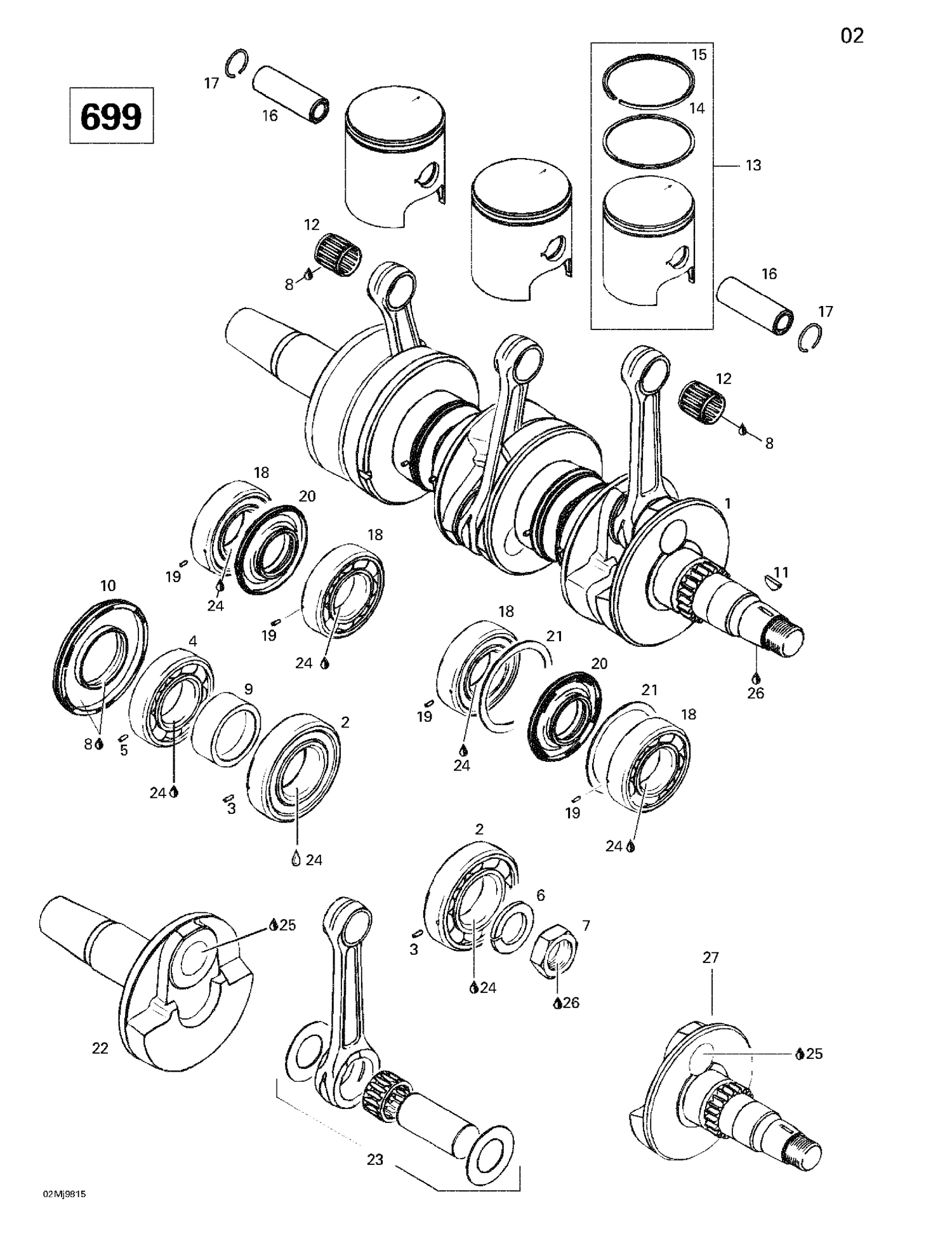

| Ref | Part Number | Description |
|---|
| 6 |
420945759 |
Lock Washer, 22 mm |
| 7 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 8 |
413707000 |
Dow Corning 111, 150 g |
| 9 |
420847857 |
Distance Sleeve |
| 10 |
420931280 |
Oil Seal |
| 11 |
420246015 |
Woodruff Key |
| 12 |
420832435 |
Needle Cage Bearing |
| 14 |
420915986 |
OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership |
| 15 |
420815046 |
Oversize Semi-trapez Ring 69.75 mm |
| 16 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 17 |
420945735 |
Piston Circlip |
| 19 |
420929972 |
Dowel Pin |
| 20 |
420831990 |
Oil Seal |
| 21 |
420827050 |
RETAINING DISK - Call your local BRP dealership |
| 22 |
420818617 |
Crankshaft P.T.O.-Side |
| 23 |
420887603 |
ROD REPAIR KIT P.T.O.-SIDE - Call your local BRP dealership |
| 24 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 25 |
Not |
Available As Spare Part - Loctite 14486, 10 cc |
| 26 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 420887604 |
Rod |
Repair Kit Mag, Side/Center 420887604 |
