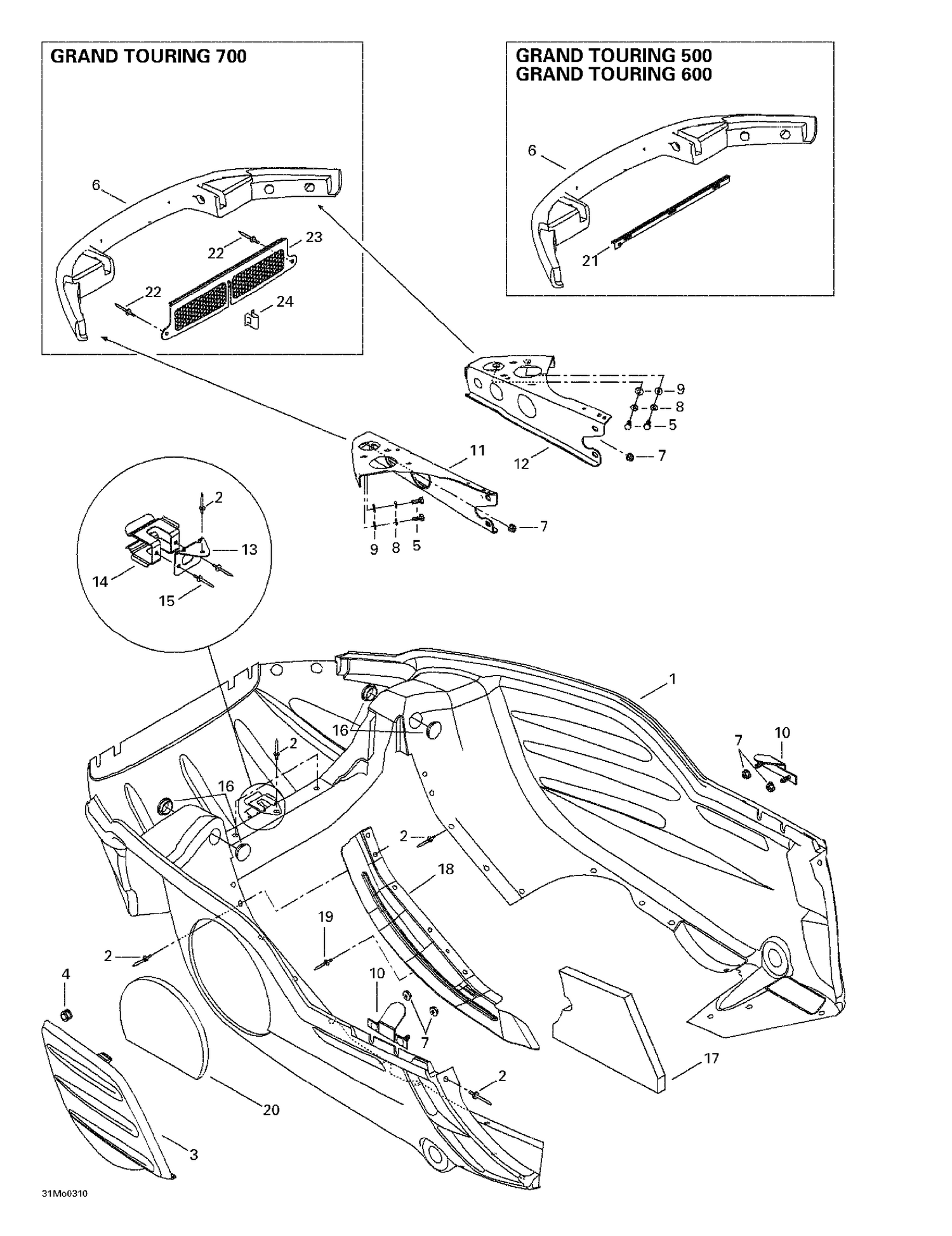

| Ref | Part Number | Description |
|---|
| 1 |
502006636 |
Full Moon, Bottom Pan |
| 2 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3 |
502006591 |
Full Moon, Bottom Pan Door |
| 4 |
414036300 |
Grommet |
| 5 |
207161444 |
Hex. Screw M6 X 14 |
| 6 |
502006719 |
Bumper, Black This part replaces 502006592. |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
234161471 |
Lock Washer M6, Black |
| 9 |
224061121 |
Flat Washer |
| 10 |
502006645 |
LH Bracket |
| 11 |
502006597 |
LH SUPPORT - Call your local BRP dealership |
| 12 |
502006602 |
RH Support |
| 13 |
502006599 |
Belt Support |
| 14 |
517281905 |
Bracket |
| 15 |
390402400 |
Pop Rivet 3/16" |
| 16 |
414916600 |
Black, Nylon Cap |
| 17 |
502006558 |
Bottom Foam |
| 20 |
502006559 |
Bottom Pan Door Foam |
| 502006506 |
BOTTOM |
PAN DOOR, BLACK, B-160 - Call your local BRP dealership 502006506 |
| 502006506 |
Porte |
De Coque, Noir, B-160 - Appelez votre concessionnaire BRP local 502006506 |
| 502006633 |
Coque, |
Noir, B-160 502006633 |
| 502006633 |
Deep |
Black, Bottom Pan 502006633 |
| 502006719 |
Bumper, |
Black This part replaces 502006536. 502006719 |
| 502006719 |
Pare-Choc, |
Noir This part replaces 502006536. 502006719 |
