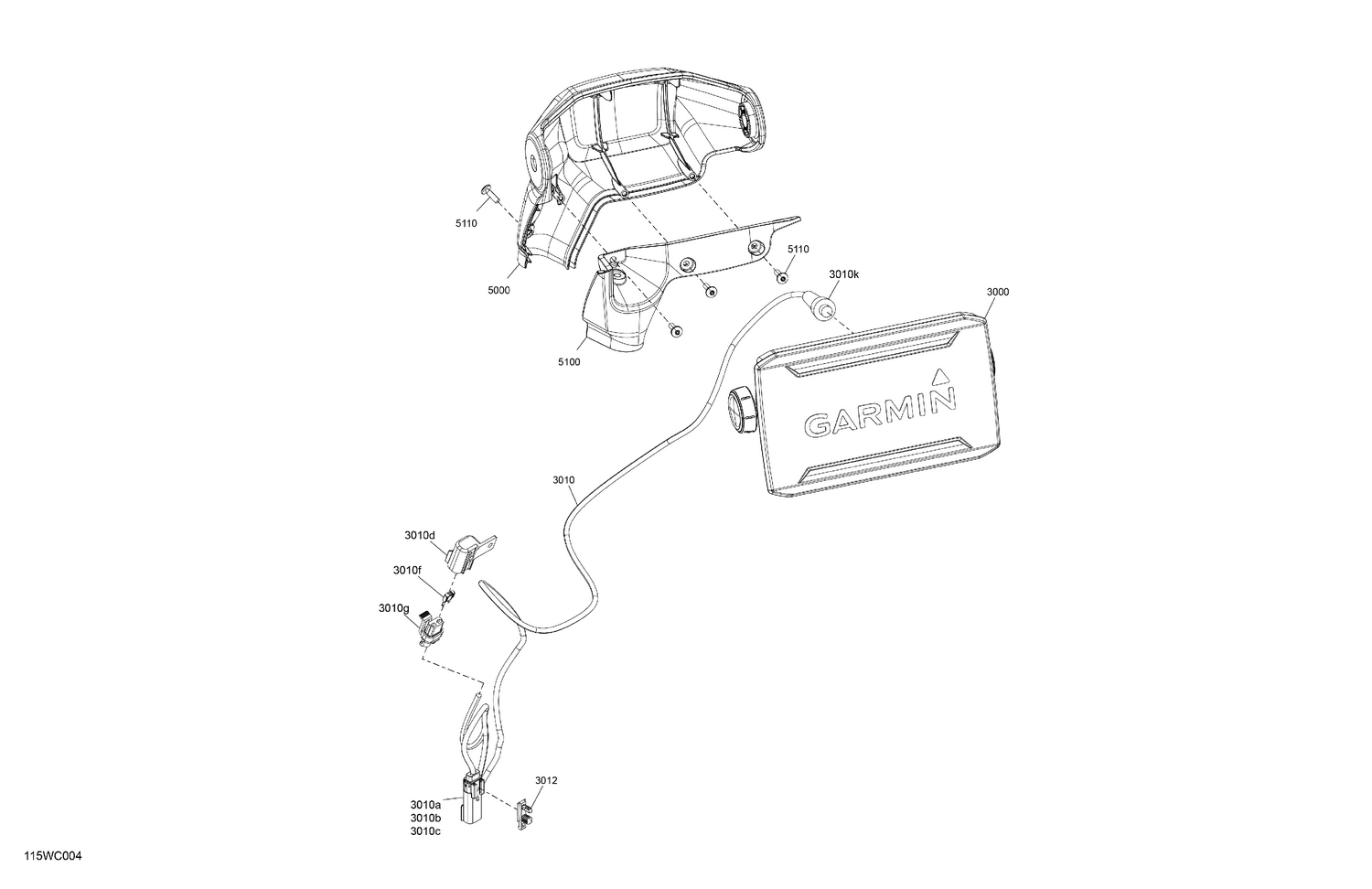

09- ELECTRONICS - Garmin ECHOMAP UHD 72sv GPS
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3000 | 295100975 | Echo Sounder Switch Kit |
| 3010a | 515178023 | Housing |
| 3010b | 278002860 | Sealing Cap |
| 3010c | 515178013 | Male Terminal |
| 3010d | 710002793 | Cover |
| 3010f | 710001008 | Little Fuse, 3 AMP |
| 3010g | 710002791 | Housing |
| 3010k | 278003975 | Power Supply Cable |
| 3012 | 515178223 | Clip Connector |
| 5000 | 281000094 | Rear GPS Support |
| 5100 | 281000124 | Front GPS Support |
