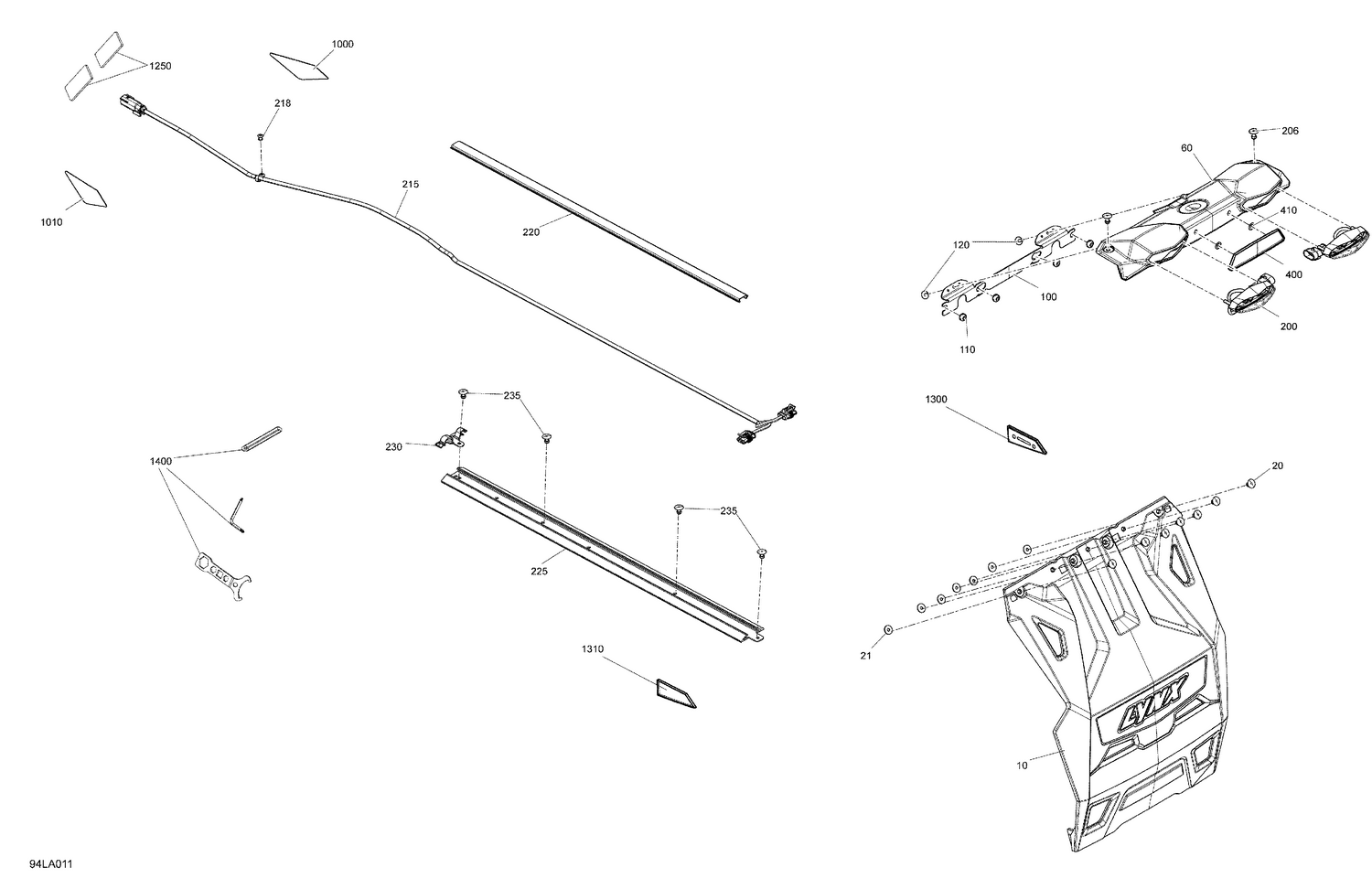

09- Miscellaneous - Utilities
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001646 | Snow Guard |
| 20 | 293150104 | Pop Rivet 3/16 |
| 21 | 517124300 | Washer |
| 60 | 520001701 | Light Fairing |
| 100 | 520001773 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 120 | 250000805 | Plastite Screw M4 X 10 |
| 200 | 520001302 | Rear Light |
| 206 | 293150100 | Pop Rivet 3/16 |
| 215 | 515178359 | WIRING HARNESS - Call your local BRP dealership |
| 218 | 390402200 | Pop Rivet 3/16 |
| 220 | 520002921 | Radiator Trim This part replaces 520001719. |
| 225 | 520002930 | Wire Protector This part replaces 520001703. |
| 230 | 520001722 | Cap |
| 235 | 293150104 | Pop Rivet 3/16 |
| 400 | 705014133 | Rear Reflector Red |
| 410 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1250 | 520000271 | Amber, Reflector |
| 1300 | 705007154 | Yellow, RH Reflector |
| 1310 | 705007155 | Yellow, LH Reflector |
