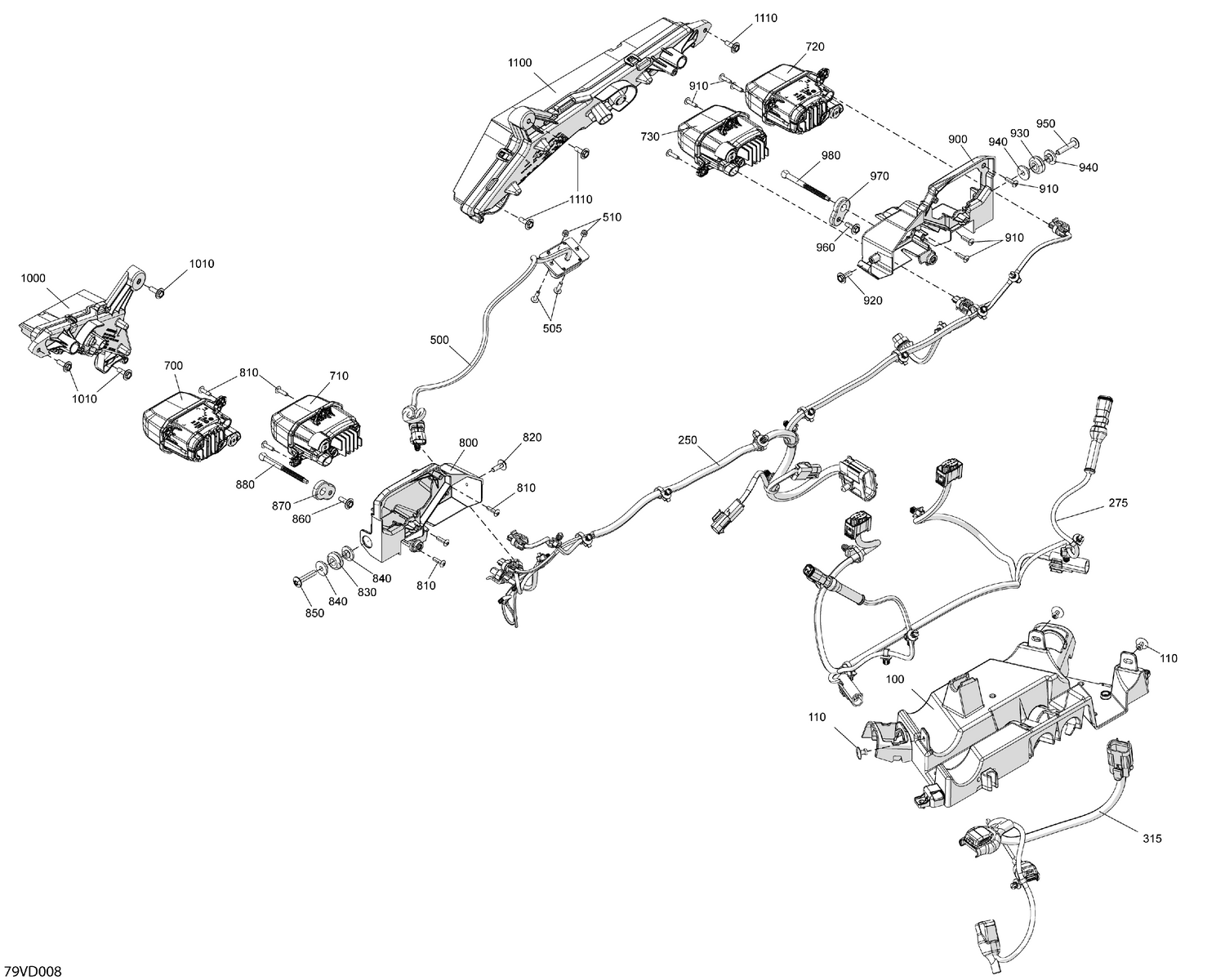

08- Electric - Front Section
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 710007813 | Multi Porpuse Support |
| 110 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 250 | 710007725 | Headlight Wiring Harness |
| 275 | 710007724 | Junction Wiring Harness |
| 315 | 710007357 | Differential Wiring Harness |
| 500 | 710007892 | Camera |
| 505 | 250000797 | Torx Head Screw M4 X 16 |
| 510 | 232541484 | Elastic Stop Nut M4 |
| 700 | 710008089 | Low Beam Light |
| 710 | 710006911 | High Beam Light |
| 720 | 710008089 | Low Beam Light |
| 730 | 710006911 | High Beam Light |
| 800 | 708500013 | LH Front Headlight Support |
| 810 | 250000759 | Torx Truss Pt K40 X 16 |
| 820 | 250000959 | Screw PT Type K-50 X 16 |
| 830 | 293720130 | Overmolded Grommet |
| 840 | 710004749 | Shoulder Bushing |
| 850 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 860 | 250000959 | Screw PT Type K-50 X 16 |
| 870 | 293900157 | Ball Socket |
| 880 | 710005837 | Ajustment Screw |
| 900 | 708500014 | RH Front Headlight Support |
| 910 | 250000759 | Torx Truss Pt K40 X 16 |
| 920 | 250000959 | Screw PT Type K-50 X 16 |
| 930 | 293720130 | Overmolded Grommet |
| 940 | 710004749 | Shoulder Bushing |
| 950 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 960 | 250000959 | Screw PT Type K-50 X 16 |
| 970 | 293900157 | Ball Socket |
| 980 | 710005837 | Ajustment Screw |
| 1000 | 710007638 | LH Auxiliary LED Light |
| 1010 | 250000959 | Screw PT Type K-50 X 16 |
| 1100 | 710007644 | RH Auxiliary LED Light |
