Parts Catalog

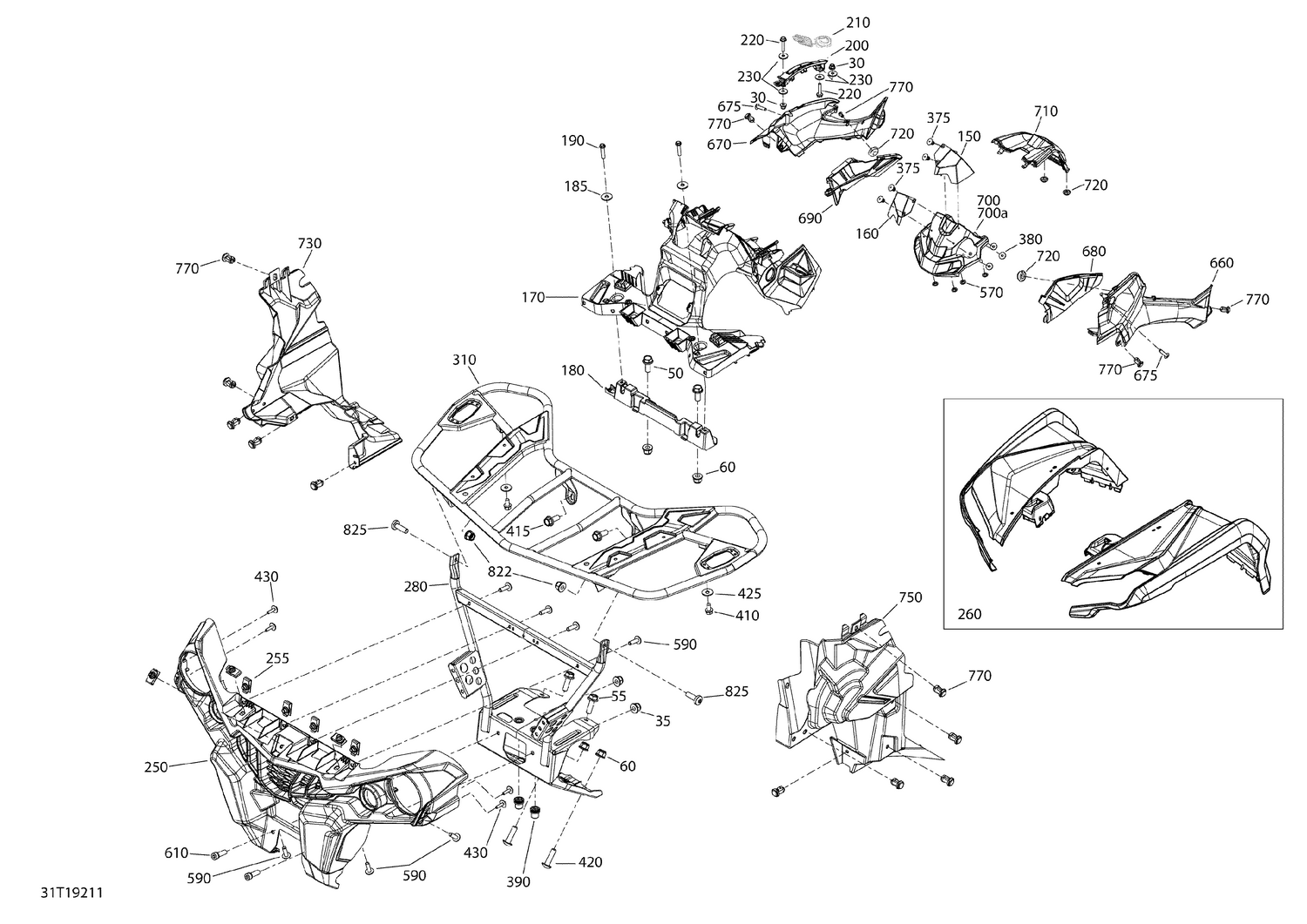

09- Body And Accessories 6X6 - 450 EFI - Squadron Green - Front

Parts (42)

Ref	Part Number	Description
30	233261434	Flange Elastic Nut M6
35	233201434	Hex. Flange Elastic Nut M10
50	207682044	Hex. Flange Screw M8 X 20
55	207582544	Hex. Flange Screw M8 X 25, Scotch Grip
60	233281434	Hex. Flange Elastic Nut M8
150	705006134	LH Air Deflector
160	705006135	RH Air Deflector
170	715006101	Console Support Ass'y This part replaces 715003984.
180	705010406	Console Support Insert
185	234062600	Flat Washer M6, Stainless
190	241152540	Hex. Flange Screw K50 X 2.24 X 25
200	715006171	Shifter Gate
210	705005003	Shiftgate Trim
220	207563034	Hex. Flange Screw M6 X 30, Scotch Grip
230	224061201	Flat Washer
250	705009335	Front Facia
255	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
260	715006160	Squadron Green Front Fender
280	705017337	Front Frame This part replaces 705009256.
310	705006887	Black, Front Luggage Rack
375	293150104	Pop Rivet 3/16"
380	517124300	Washer
390	293450307	Insert Half Hex Body M8 x 1.25
410	210261250	Hex. Flange Screw M6 X 12
415	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
420	250000886	Torx Screw M8 X 30
425	234062670	Stainless Steel Flat Washer
430	250000725	Screw M4 X 16
570	732610072	Push Nut
590	250000722	Torx Screw M6 X 20
610	205003044	Socket Screw M10 x 30
660	705009760	Squadron Green, LH Lateral Panel
670	705009764	Squadron Green, RH Lateral Panel
675	250000723	Phillips Screw K40 X 16
680	715007008	Deflector_Body Panel Kit This part replaces 705004147.
690	705003444	Engine Cover
710	715002783	Dash Kit
720	705003264	Grommet
730	705017023	RH Front Wheel Arch Protector This part replaces 705010714.
750	705017022	LH Front Wheel Arch Protector This part replaces 705012338.
770	293150230	Tuflok Plastic Rivet
822	233281464	Elastic Flange Nut M8
