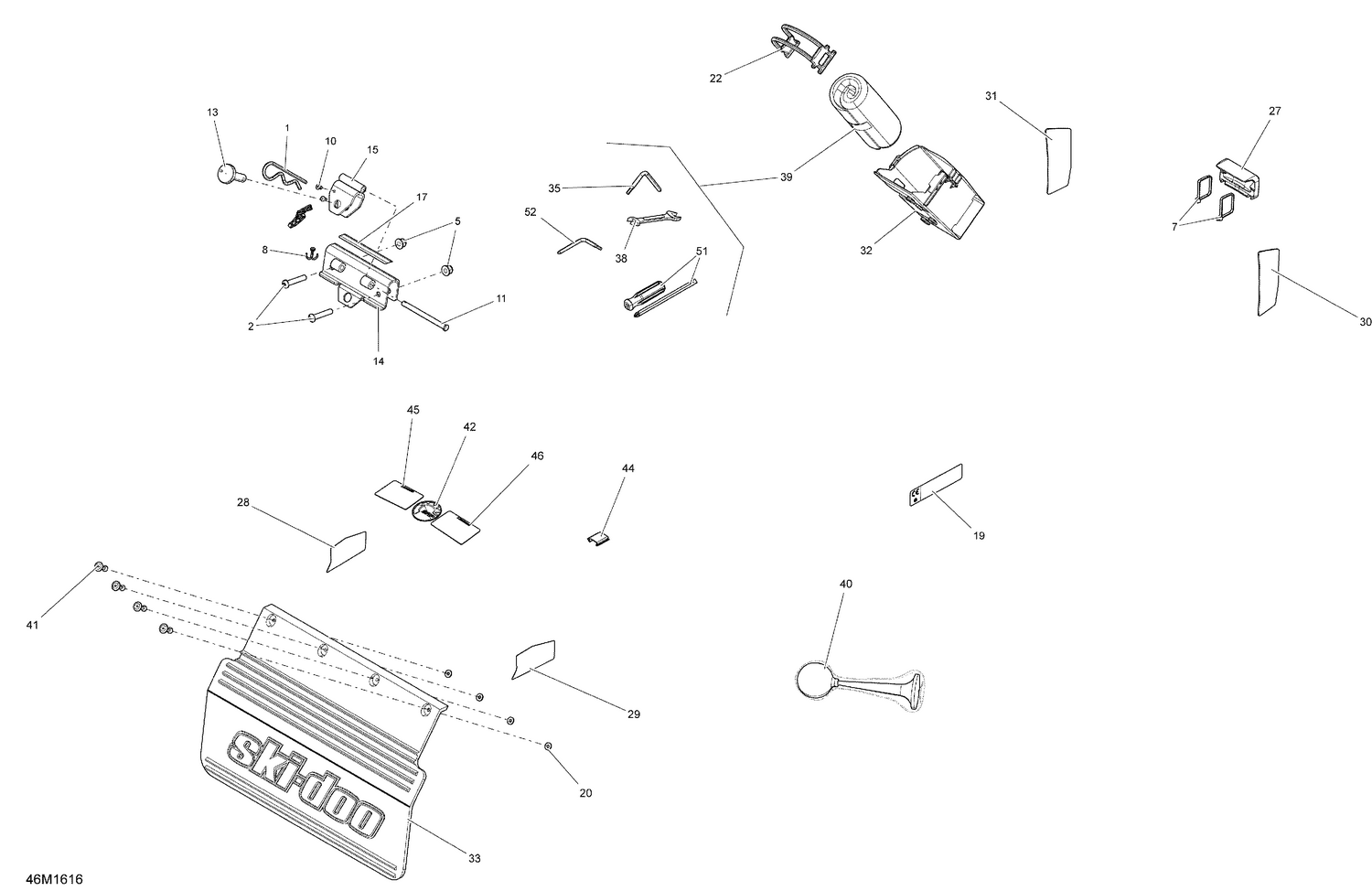

09- Utilities — Parts Catalog

Ref	Part Number	Description
1	114045200	Hair Pin
2	205484546	Socket Head Screw M8 X 45
3	219400038	Waranty Registration Form
5	233281414	Hex. Flange Elastic Nut M8
6	233281466	Elastic Flange Nut M8
7	293750018	Tie Rap 371 mm
8	371800200	Cotter Pin
10	390404300	Pop Rivet 5/32”
11	511001451	Lock Pin This part replaces 511000520.
12	511000521	Hitch Plate Welded
13	511000555	Pin
14	511000554	Support
15	511000588	HITCH PLATE - Call your local BRP dealership
16	511000768	Support
17	516004568	WARNING DECAL, SECURITY - Call your local BRP dealership
19	516006804	CE Decal
20	517124300	Washer
22	520000528	Latch
30	520000891	Yellow, RH Front Reflector
31	520000892	Yellow, LH Front Reflector
32	520000894	Tool Kit Rack
33	520000949	Snow Guard
35	520001142	Spacing Tool
38	529000002	FORK WRENCH, 10/13 MM - Call your local BRP dealership
39	520001593	Tools Kit This part replaces 529000078.
40	549011291	Horn
41	293150101	Pop Rivet 3/16” This part replaces 293150101.
42	516008738	BRP Logo 48mm This part replaces 516006887.
44	520000829	Radiator Trim
45	516006908	Warning Decal
46	516005587	RH Warning Decal, Safety
51	529000004	SCREWDRIVER - Call your local BRP dealership
