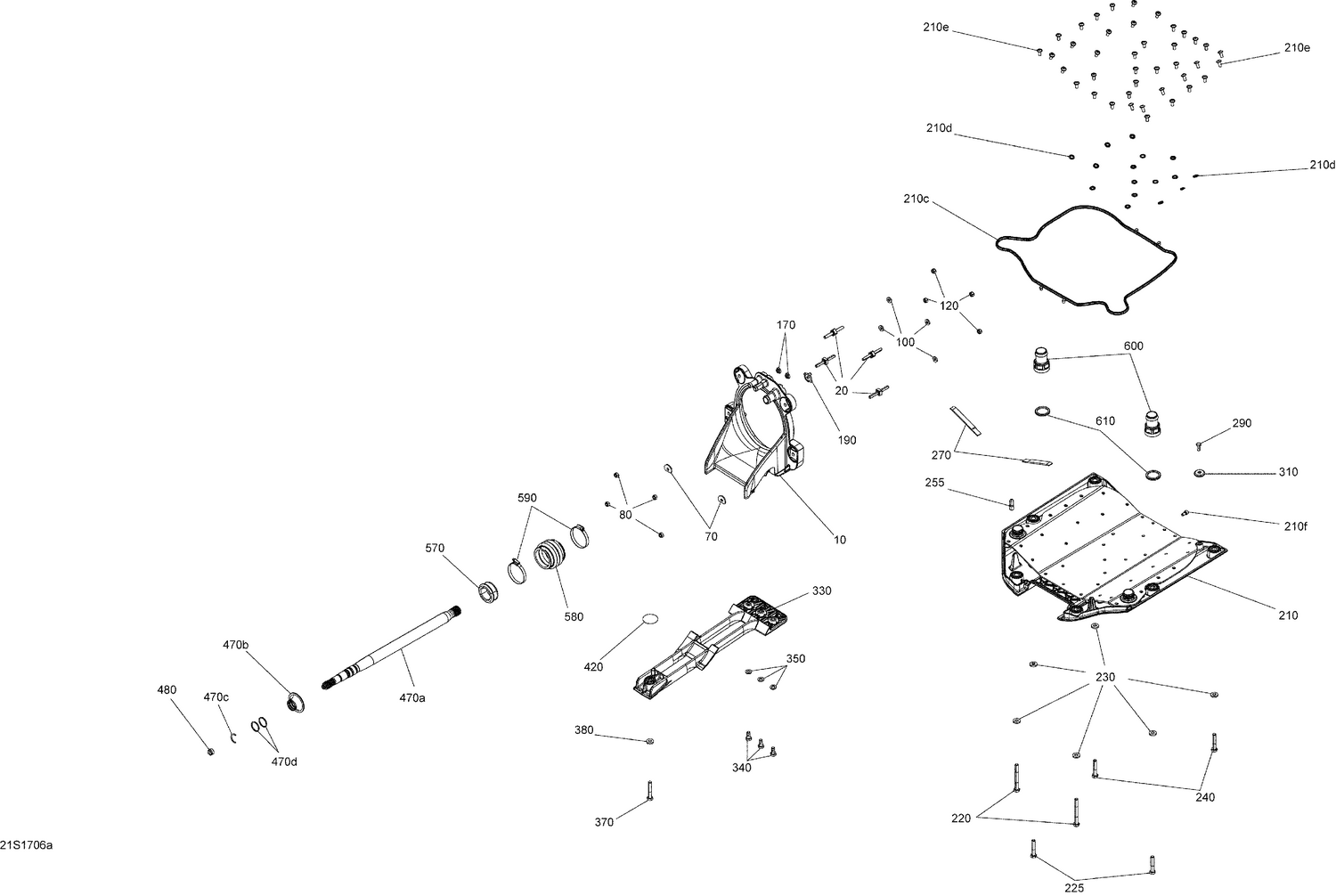

05- Propulsion - 130-155-215-230
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 271001964 | Pump Support |
| 20 | 250300046 | Square Stud |
| 70 | 279000326 | Flat Washer |
| 80 | 232581200 | Hex. Elastic Nut M8 Brass |
| 100 | 293050001 | Flat Washer M8.5 x 18 |
| 120 | 232581200 | Hex. Elastic Nut M8 Brass |
| 170 | 293250084 | Watertight Seal |
| 190 | 271002029 | Reducer, Green |
| 210c | 293250235 | Seal |
| 210d | 250200114 | Sealing Washer |
| 210e | 250000384 | Torx Screw M6 X 14 |
| 210f | 250500005 | Socket Drain Plug M6 X 12 |
| 220 | 250000812 | Hexagonal Head Cap Screw M8 X 75 |
| 225 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 230 | 293050001 | Flat Washer M8.5 x 18 |
| 240 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 255 | 293000105 | Cap Plug |
| 270 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 290 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 310 | 271001920 | Anode Zinc |
| 330 | 271001969 | Pump Grate |
| 340 | 207381660 | Hex. Screw M8 X 16, Scotch Grip |
| 350 | 234081600 | Stainless, Flat Washer 8 mm |
| 370 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 380 | 293050001 | Flat Washer M8.5 x 18 |
| 420 | 293830047 | PROTECTOR DISK - Call your local BRP dealership |
| 480 | 272000173 | Drive Shaft Plug |
| 580 | 271001933 | Bellow |
| 590 | 293650079 | Norma Clamp |
| 600 | 293710166 | Straight Fitting |
