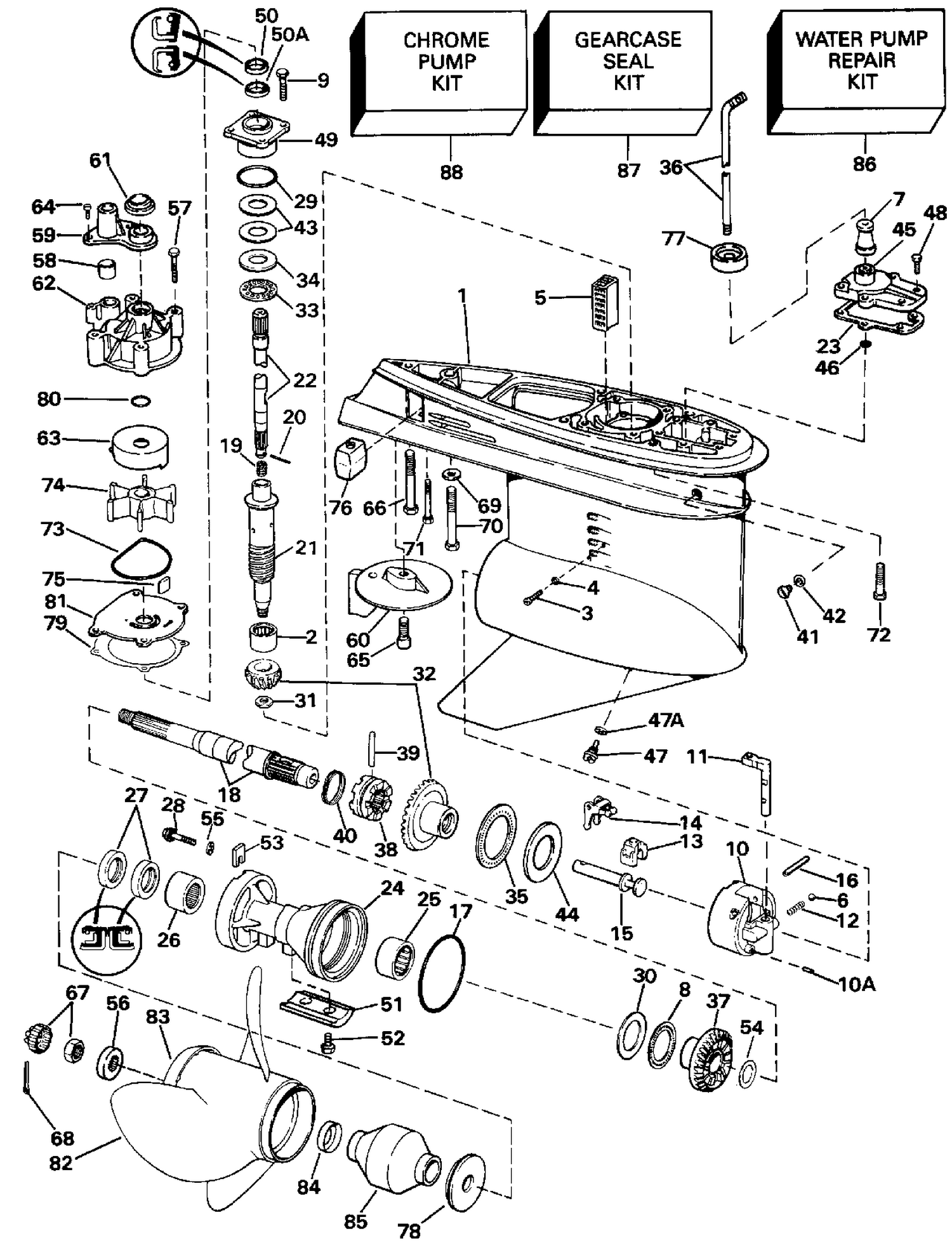

GEARCASE - 140TX STANDARD ROTATION

GEARCASE - 140TX STANDARD ROTATION

Parts (33)

RefPart NumberDescription
17 0305123 O RING
19 0335684 DRIVESHAFT SPRING
22 5007672 DRIVESHAFT Assembly, Upper This part replaces 0337059.
26 0434467 NEEDLE BEARING ASSY.
36 0329865 SHIFT ROD
57 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0327640.
62 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
66 0330263 SCREW, Mounting, 3/8 in. X 3.50 in.
70 0331998 SCREW, Gearcase to housing
72 0331999 SCREW, Gearcase housing
73 0331353 Seal, Impeller Housing Plate.
80 0332000 SEAL RING
81 0435027 CUP & PLATE This part replaces 0330380.
81 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
82 0389019 PROP, 14-1/2 x 23 SST
82 0389923 PROP, 14-1/2 x 21 SST
82 0389924 PROP, 14-1/2 x 19 SST
82 0389925 PROP, 15 x 16 SST
82 0390831 PROP, 14-1/2 x 14 SST
82 0391201 PROP, 14-1/2 x 19
82 0391202 PROP, 14-1/2 x 21
82 0391203 BEARING ASSY,Rear,std
82 0391290 PROP, 15 x 17 SST
82 0391535 PROP, 15-1/2 x 15
82 0391536 PROP, 15-1/2 x 13
82 0765187 PROPELLER, WDEX Models This part replaces 0391200.
86 5001594 WATER PUMP REPAIR KIT This part replaces 0395060.
87 5006373 GEARCASE SEAL KIT This part replaces 0434516.
0435506 0435506 GEARCASE ASSY., Complete
