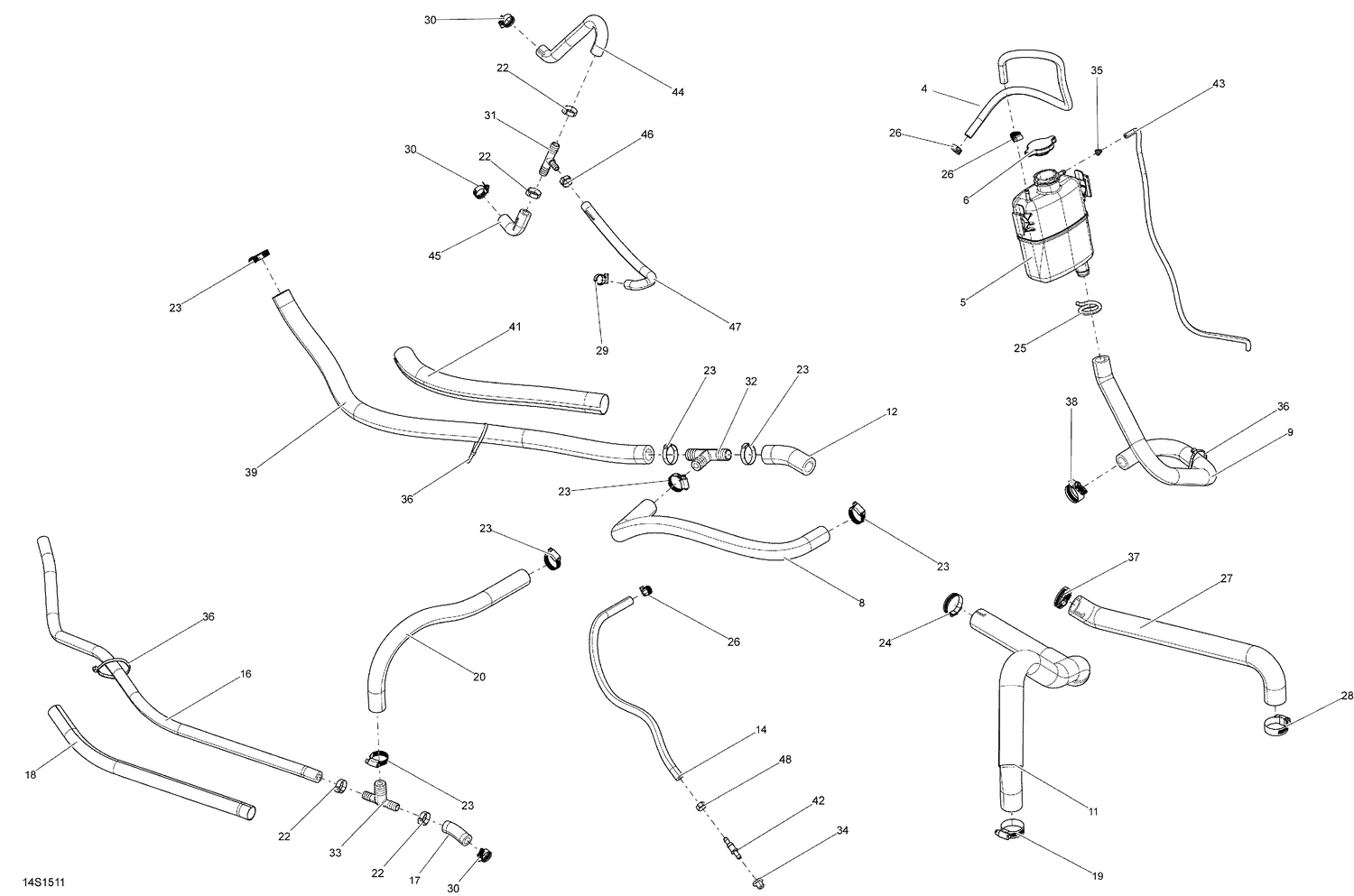

01- Cooling System _14S1511

Ref	Part Number	Description
4	204300184	HOSE 1/4 - Call your local BRP dealership
5	276000086	Coolant Tank
6	276000100	Pressure Cap
8	219704361	Hose 19.0Mm. 2000Mm Long
9	276000493	Formed Return Hose This part replaces 276000253.
11	276000492	Radiator Hose This part replaces 276000249.
12	219704361	Hose 19.0Mm. 2000Mm Long
14	219704357	Was 275500549 Hose 1/4"
16	219704394	Was 276000001 Hose 12.5 mm
17	219704394	Was 276000001 Hose 12.5 mm
18	219704423	Was 515175319 Tubing 22 mm
19	293650185	Tridon Gear Clamp
20	219704361	Hose 19.0Mm. 2000Mm Long
22	293650012	Oetiker Clamp
23	293650051	Tridon Gear Clamp
24	293650185	Tridon Gear Clamp
25	293650115	Spring Clamp
26	293650170	Tridon Gear Clamp
27	276000248	RH Radiator Hose
28	293650185	Tridon Gear Clamp
29	293650171	Tridon Gear Clamp
30	293650172	Tridon Gear Clamp
31	293710116	T-Fitting
32	293710131	T-Fitting
33	293710132	T-Fitting
34	293720029	Grommet
35	293750001	Tie Wrap 94 mm
36	293750008	Tie Wrap 368 mm
37	293650185	Tridon Gear Clamp
38	293650019	Tridon Gear Clamp
39	219704361	Hose 19.0Mm. 2000Mm Long
41	219704402	Tubing 25 MM 1000MM Long
42	414518500	Male Connector
43	219704410	Polyurethane Hose 10000Mm Long
44	276000484	Hose, Bypass Upper This part replaces 276000244.
45	276000455	Hose, Bypass Lower This part replaces 276000245.
46	293650030	Oetiker Clamp
47	276000246	Formed Hose
