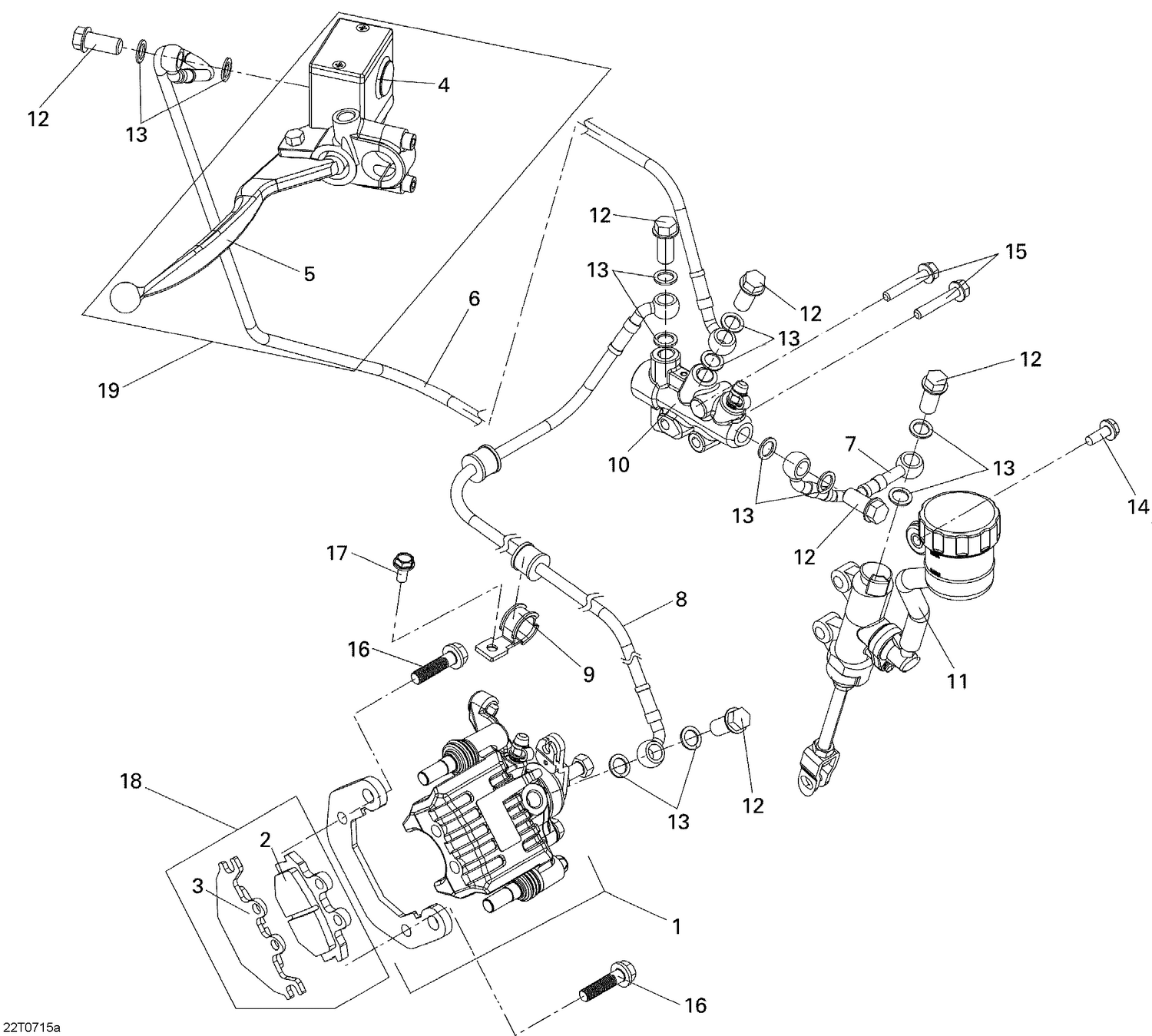

06- Brakes Rear
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S43100RCB000 | Rear Brake Caliper Ass'y |
| 2 | NASP/NDPR | Not Available As Spare Parts |
| 3 | NASP/NDPR | Not Available As Spare Parts |
| 4 | NASP/NDPR | Not Available As Spare Parts |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | S46202RCB000 | Brake Hose |
| 7 | S46205RCB000 | Foot Master Cylinder Hose |
| 8 | S46206RCB000 | Rear Brake Caliper Hose |
| 9 | S45156H3C000 | Hose Clamp |
| 10 | S46300RCB000 | Pressure Control Valve |
| 11 | S46500RCA000 | Foot Master Cylinder Ass'y |
| 12 | S90145M9Q000 | Banjo Bolt |
| 13 | S90545M9Q000 | Washer |
| 14 | S958010601807 | Flanged Bolt M6 X 18 |
| 15 | S958010604007 | Flanged Bolt M6 X 40 |
| 16 | S958010803007 | Flanged Bolt M8 X 30 |
| 17 | S958010601207 | Flanged Bolt M6 X 12 |
| 18 | S4311ARCA000 | Rear Brake Pad Kit |
