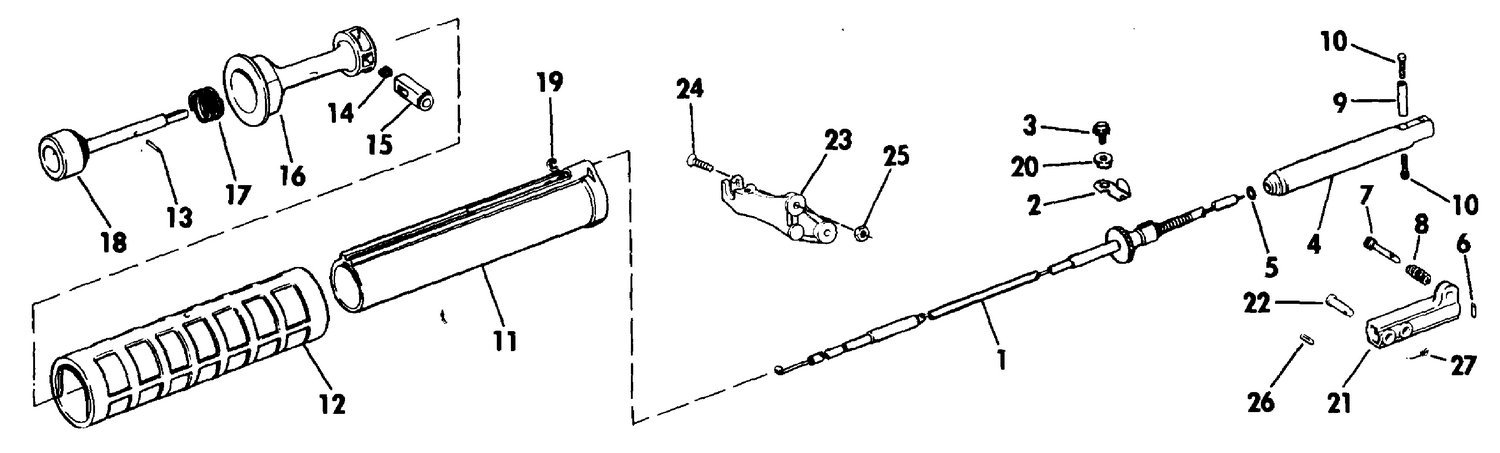

SHIFT HANDLE KIT 9.9 & 15
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0172803 | CABLE AND CASING ASSY |
| 2 | 0310687 | DETENT SPRING, Anchor block |
| 3 | 0320014 | SCREW, Detent clip |
| 5 | 0307063 | O RING |
| 11 | 0124145 | HANDLE, Inner |
| 12 | 0122136 | HANDLE, Outer |
| 13 | 0305989 | GROOVE PIN |
| 19 | 0304816 | RETAINING RING |
| 20 | 0310688 | SAPCER, Anchor block |
| 0172342 | 0172342 | DETENT ASSEMBLY |
| 0173986 | 0173986 | SHIFT HANDLE KIT - 9.9 - 15 |
| 0381444 | 0381444 | CASING GUIDE |
