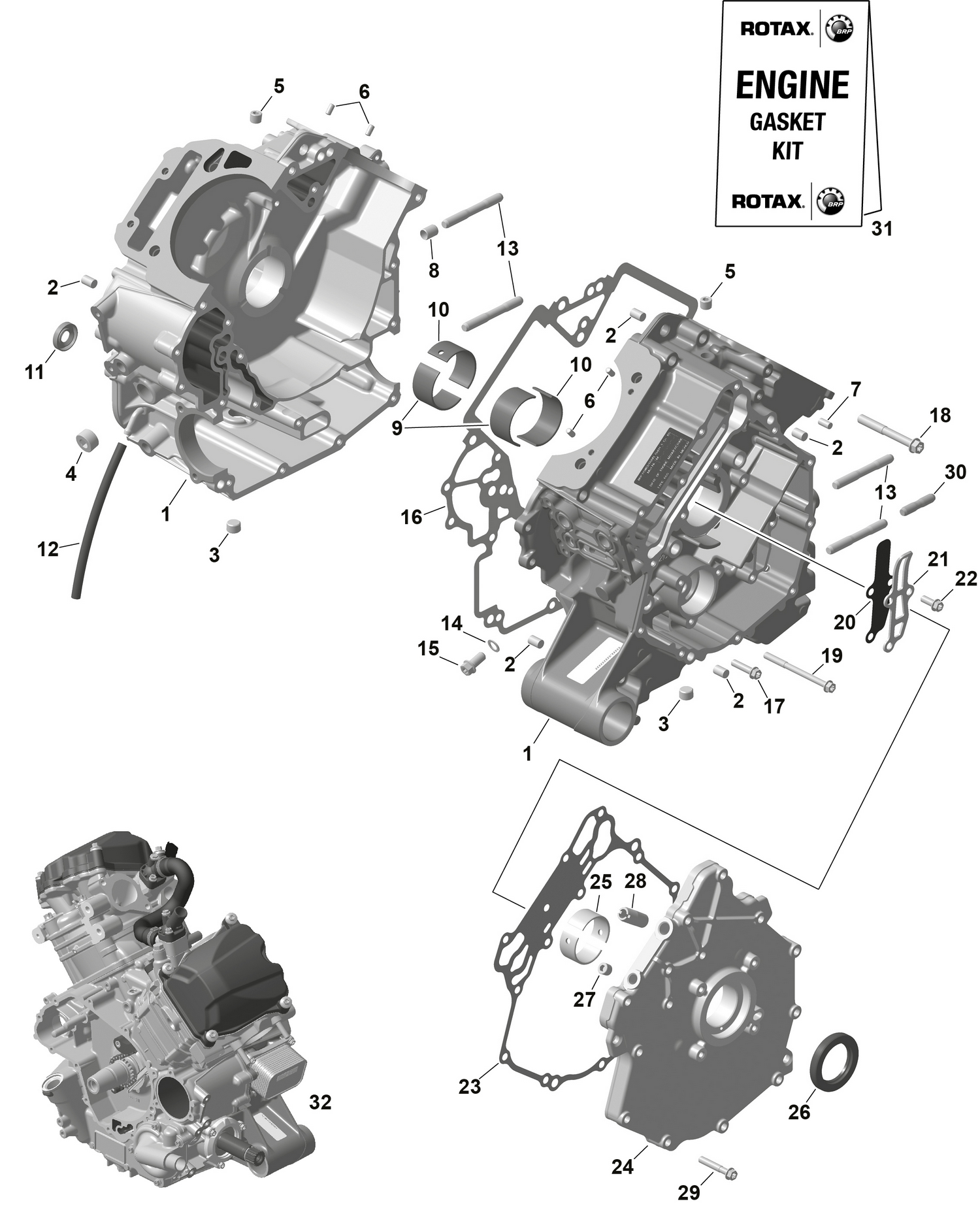

01- ROTAX - Crankcase
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420840658 | Plug Screw M12x1,5 |
| 4 | 420240170 | Plug Screw M18 X 1.5 - Call your local BRP dealership |
| 5 | 420641323 | Plug Screw M10 X 1 |
| 6 | 420929650 | Drive Pin 5 X 10 |
| 7 | 420932780 | Needle Pin |
| 8 | 420929670 | Dowel Pin 10 X 13 |
| 9 | 420233960 | Plain Bearing |
| 10 | 420233965 | Plain Bearing |
| 12 | 415110000 | Polyurethane Hose 5.2 mm |
| 13 | 420240816 | Stud |
| 15 | 420440852 | Torx Flange Screw M8 X 16 |
| 17 | 420440234 | Torx Flange Screw M6 X 25 |
| 18 | 420440402 | Torx Flange Screw M8 X 65 |
| 19 | 420440657 | Torx Flange Screw M6 X 75 |
| 20 | 420224721 | Reed Valve |
| 21 | 420224725 | Reed Valve Stop |
| 22 | 420440162 | Torx Flange Screw M6 X 16 |
| 25 | 420233995 | Bearing Sleeve |
| 27 | 420641323 | Plug Screw M10 X 1 |
| 28 | 420256332 | Hose Nipple |
| 29 | 420440274 | Torx Flange Screw M6 X 35 |
| 30 | 420241019 | Stud |
| 31 | 420684154 | Gasket Set |
