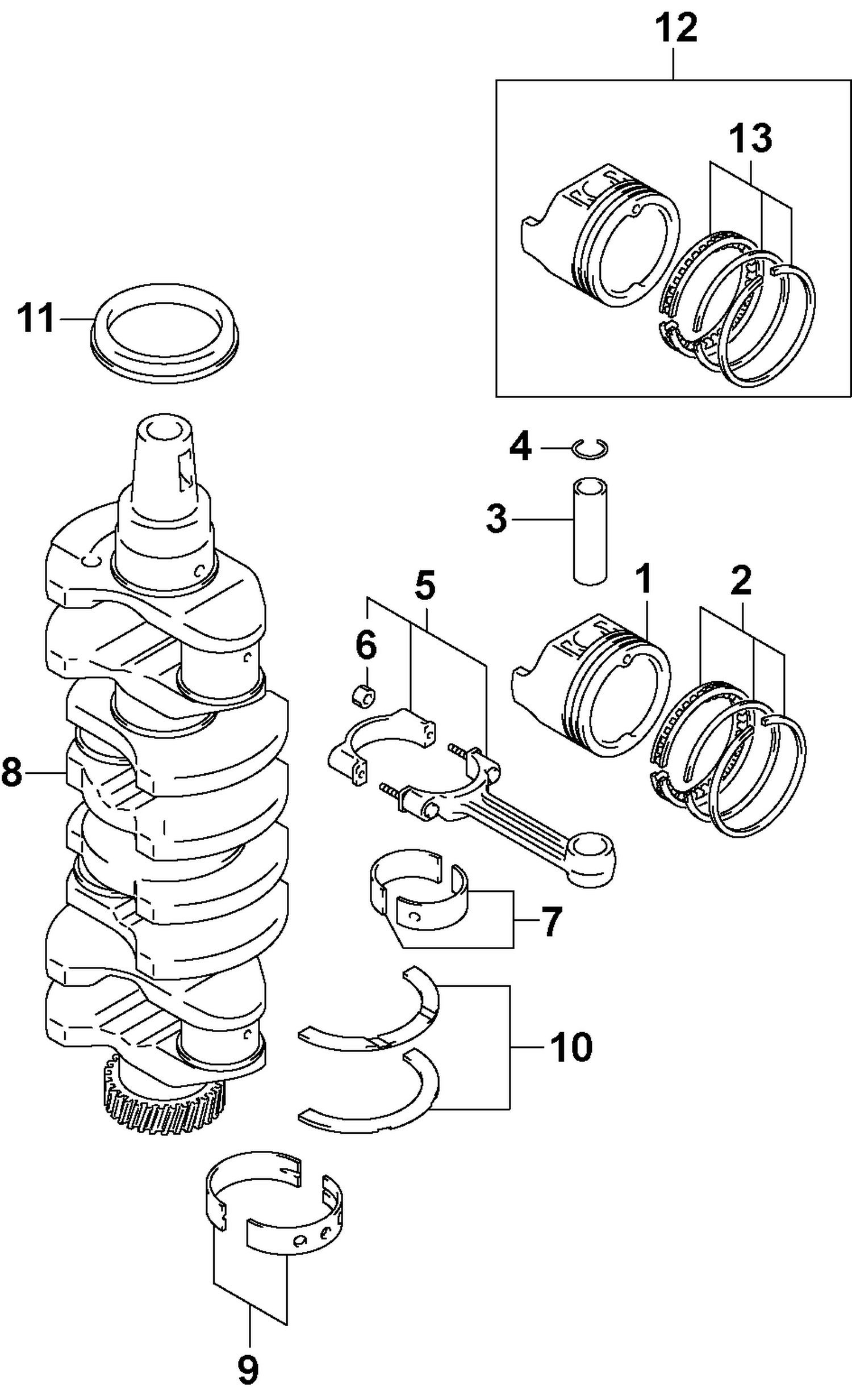

CRANKSHAFT & PISTONS
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033913 | PISTON |
| 2 | 5033914 | RING SET, PISTON |
| 3 | 5033871 | PIN, PISTON |
| 4 | 5033623 | CIRCLIP |
| 5 | 5033522 | CONNECTING ROD Assy |
| 7 | 5033521 | BEARING SET, CONNECTING ROD |
| 8 | 5033523 | CRANKSHAFT |
| 9 | 5033529 | BEARING SET, CRANKSHAFT - Green |
| 9 | 5033530 | BEARING SET, CRANKSHAFT - Black |
| 9 | 5033531 | BEARING SET, CRANKSHAFT - No color |
| 9 | 5033532 | BEARING SET, CRANKSHAFT - Yellow |
| 9 | 5033533 | BEARING SET, CRANKSHAFT - Blue |
| 10 | 5033872 | BEARING SET, CRANK THRUST |
| 11 | 5030550 | SEAL, OIL |
