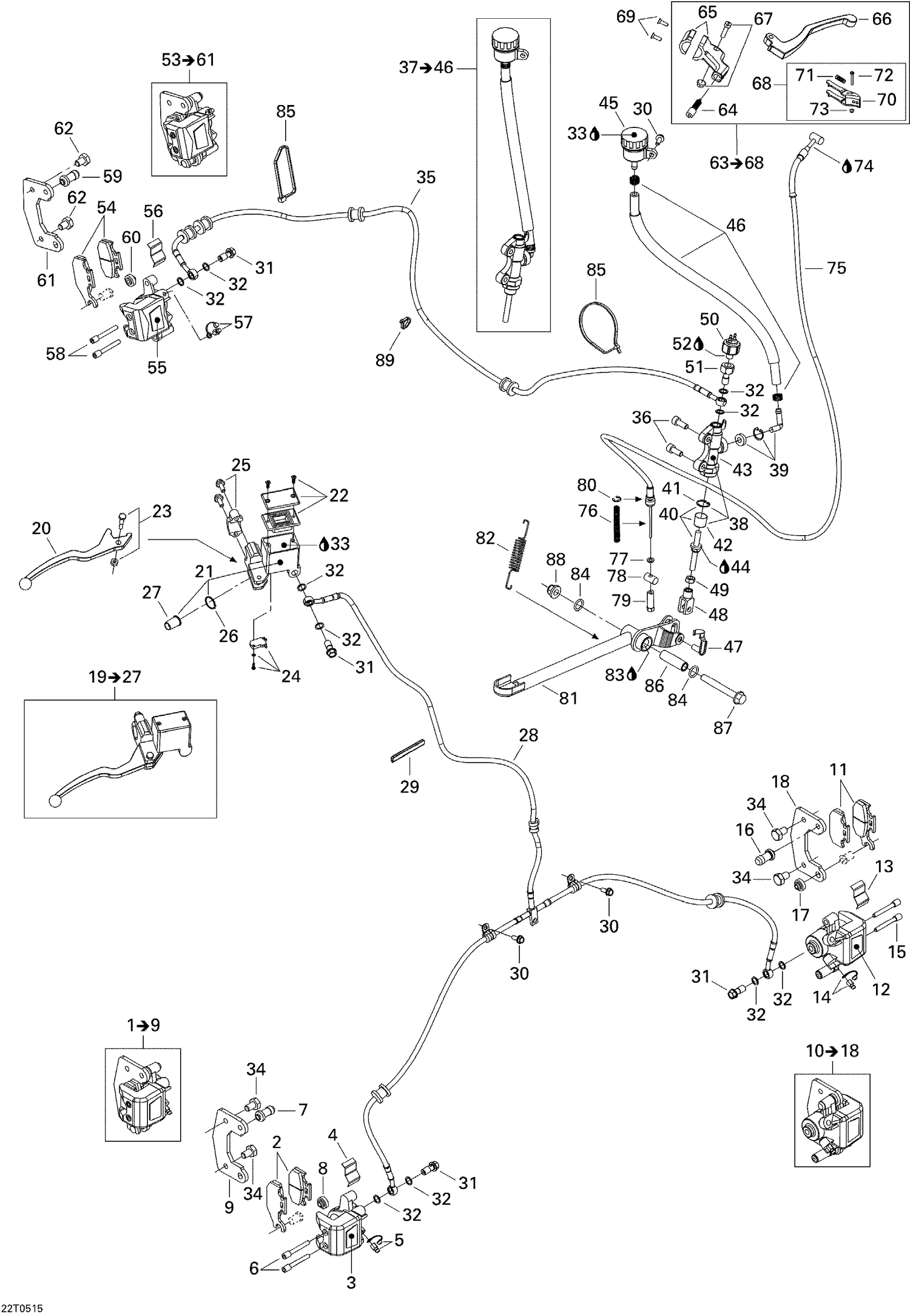

| Ref | Part Number | Description |
|---|
| 2 |
705600004 |
Brake Pad Kit |
| 3 |
705600078 |
Piston Set |
| 4 |
705600079 |
Spring |
| 5 |
705600080 |
Bleeding Screw |
| 6 |
705600081 |
Pin Set (2) |
| 7 |
705600082 |
Compression Boot |
| 8 |
705600083 |
Compression Boot |
| 9 |
Not |
Available As Spare Part - Support Lining |
| 11 |
705600014 |
Brake Pad Kit |
| 12 |
705600078 |
Piston Set |
| 13 |
705600079 |
Spring |
| 14 |
705600080 |
Bleeding Screw |
| 15 |
705600081 |
Pin Set (2) |
| 16 |
705600082 |
Compression Boot |
| 17 |
705600083 |
Compression Boot |
| 18 |
Not |
Available As Spare Part - Support Lining |
| 20 |
705600164 |
LEVER ARM - Call your local BRP dealership |
| 21 |
705600152 |
PISTON KIT - Call your local BRP dealership |
| 22 |
705600084 |
Cap Set |
| 23 |
705600085 |
BOLT KIT - Call your local BRP dealership |
| 24 |
705600148 |
SWITCH KIT - Call your local BRP dealership |
| 25 |
705600087 |
BRACKET KIT - Call your local BRP dealership |
| 26 |
705600088 |
CIRCLIP - Call your local BRP dealership |
| 27 |
705600089 |
COMPRESSION BOOT - Call your local BRP dealership |
| 28 |
705600290 |
Brake Hose |
| 29 |
219704405 |
TRIM 30000MM LONG - Call your local BRP dealership |
| 30 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 31 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) This part replaces 705600396. |
| 32 |
414920600 |
Washer |
| 33 |
293600063 |
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership |
| 33 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 34 |
250000057 |
Hex. Screw M10 X 20, Scotch Grip |
| 35 |
705600378 |
FLEXIBLE HOSE - Call your local BRP dealership |
| 36 |
250000136 |
Socket Head Screw M8 X 20, Scotch Grip |
| 38 |
705600063 |
Piston Set |
| 39 |
705600064 |
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership |
| 40 |
Not |
Available As Spare Part - Rod Ass'y |
| 41 |
705600068 |
Circlip |
| 42 |
705600090 |
Compression Boot |
| 43 |
Not |
Available As Spare Part - Cylinder Master |
| 44 |
Not |
Available As Spare Part - Grease, Therma Lube, 2 G |
| 45 |
705600182 |
Oil Tank, Brake Fluid Reservoir |
| 46 |
705600169 |
OIL HOUSING HOSE - Call your local BRP dealership |
| 47 |
219702305 |
Pin Kit This part replaces 250400007. |
| 48 |
705600100 |
Yoke |
| 49 |
232081414 |
Hex. Nut M8 |
| 50 |
710001345 |
BRAKE SWITCH - Call your local BRP dealership This part replaces 710000734. |
| 51 |
705600092 |
BANJO BOLT - Call your local BRP dealership |
| 52 |
219704454 |
Was 293800013 Loctite 56765 |
| 54 |
705600150 |
Brake Pad Kit |
| 55 |
705600078 |
Piston Set |
| 56 |
705600079 |
Spring |
| 57 |
705600080 |
Bleeding Screw |
| 58 |
705600081 |
Pin Set (2) |
| 59 |
705600082 |
Compression Boot |
| 60 |
705600083 |
Compression Boot |
| 61 |
Not |
Available As Spare Part - Support Lining |
| 62 |
250000163 |
Hex. Screw M10 X 14, Scotch Grip |
| 64 |
250000030 |
Cable Screw |
| 65 |
705600270 |
CLAMP KIT - Call your local BRP dealership |
| 66 |
705600186 |
LEVER - Call your local BRP dealership |
| 67 |
705600187 |
Pivot Kit |
| 68 |
705600188 |
Lever Lock Kit |
| 69 |
205351646 |
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 70 |
705600387 |
LOCK LEVER - Call your local BRP dealership |
| 71 |
705600225 |
SPRING - Call your local BRP dealership |
| 72 |
208032291 |
Screw M3 X 22 |
| 73 |
232531423 |
Elastic Stop Nut M3 |
| 74 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 75 |
705600099 |
REAR BRAKE CABLE - Call your local BRP dealership |
| 76 |
705600144 |
SPRING - Call your local BRP dealership |
| 77 |
705600145 |
FLAT WASHER - Call your local BRP dealership |
| 78 |
705600146 |
CABLE BARREL - Call your local BRP dealership |
| 79 |
705600388 |
NUT - Call your local BRP dealership |
| 80 |
705600272 |
Circlip |
| 81 |
705600385 |
Brake Pedal, Black |
| 82 |
705600107 |
BRAKE PEDAL SPRING - Call your local BRP dealership |
| 83 |
293550010 |
Synthetic Grease, 400 G |
| 84 |
293300053 |
O-RING - Call your local BRP dealership |
| 85 |
293750008 |
Tie Wrap 368 mm |
| 86 |
705600327 |
Spacer |
| 87 |
207608044 |
HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership |
| 88 |
233201414 |
Hex. Flange Elastic Nut M10 |
