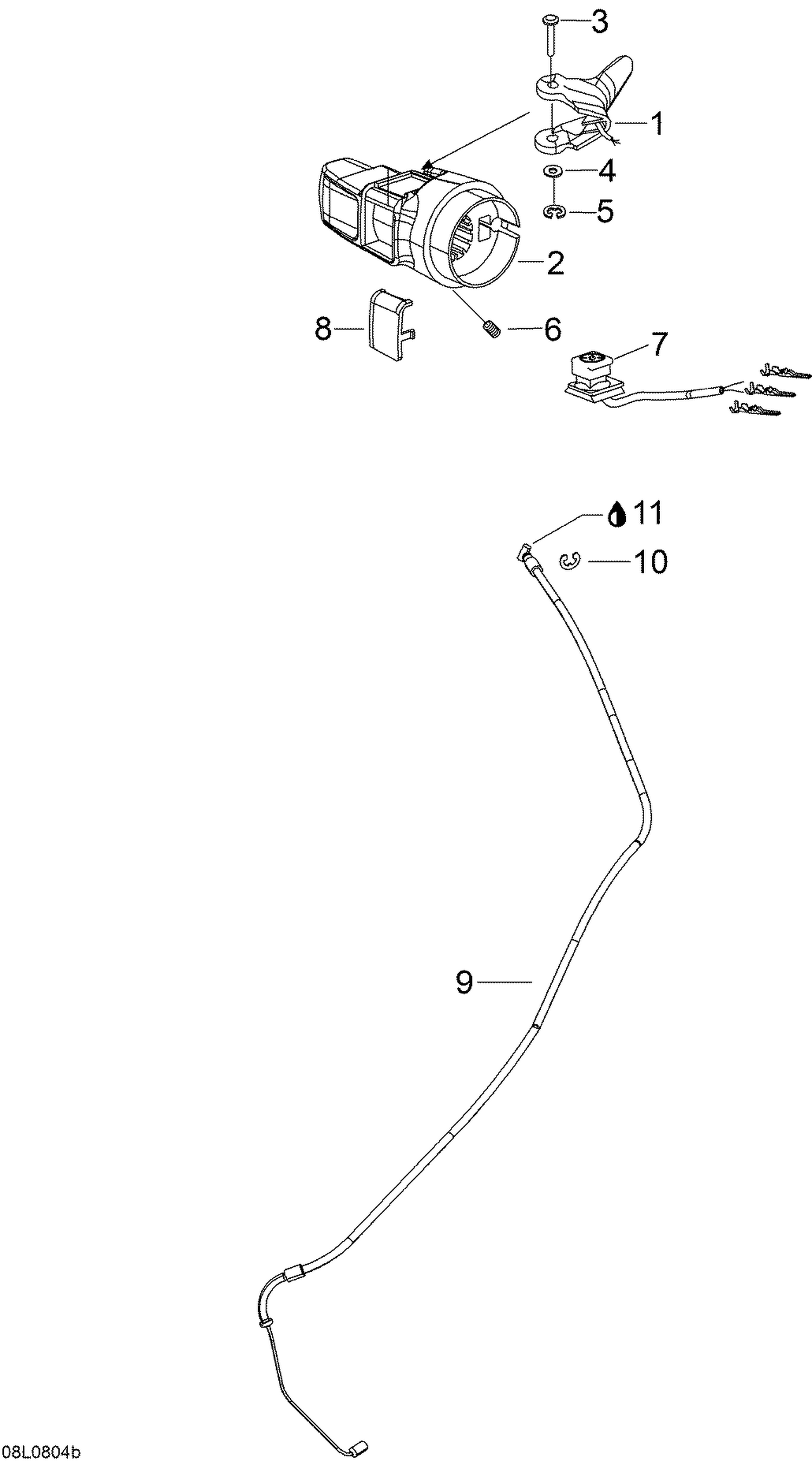

01- Throttle Handle And Housing
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059624 | Handle Ass’Y |
| 2 | 512059489 | THROTTLE HOUSING - Call your local BRP dealership |
| 3 | 414438700 | Lever Pin |
| 4 | 234051600 | Flat Washer M5, Stainless |
| 5 | 414439000 | Circlip |
| 6 | 414440800 | Socket Set Screw M8 X 10 |
| 7 | 515175410 | Kill Switch |
| 8 | 572100901 | Switch Cover |
| 9 | 512059349 | THROTTLE CABLE - Call your local BRP dealership |
| 10 | M31038 | Circlip |
