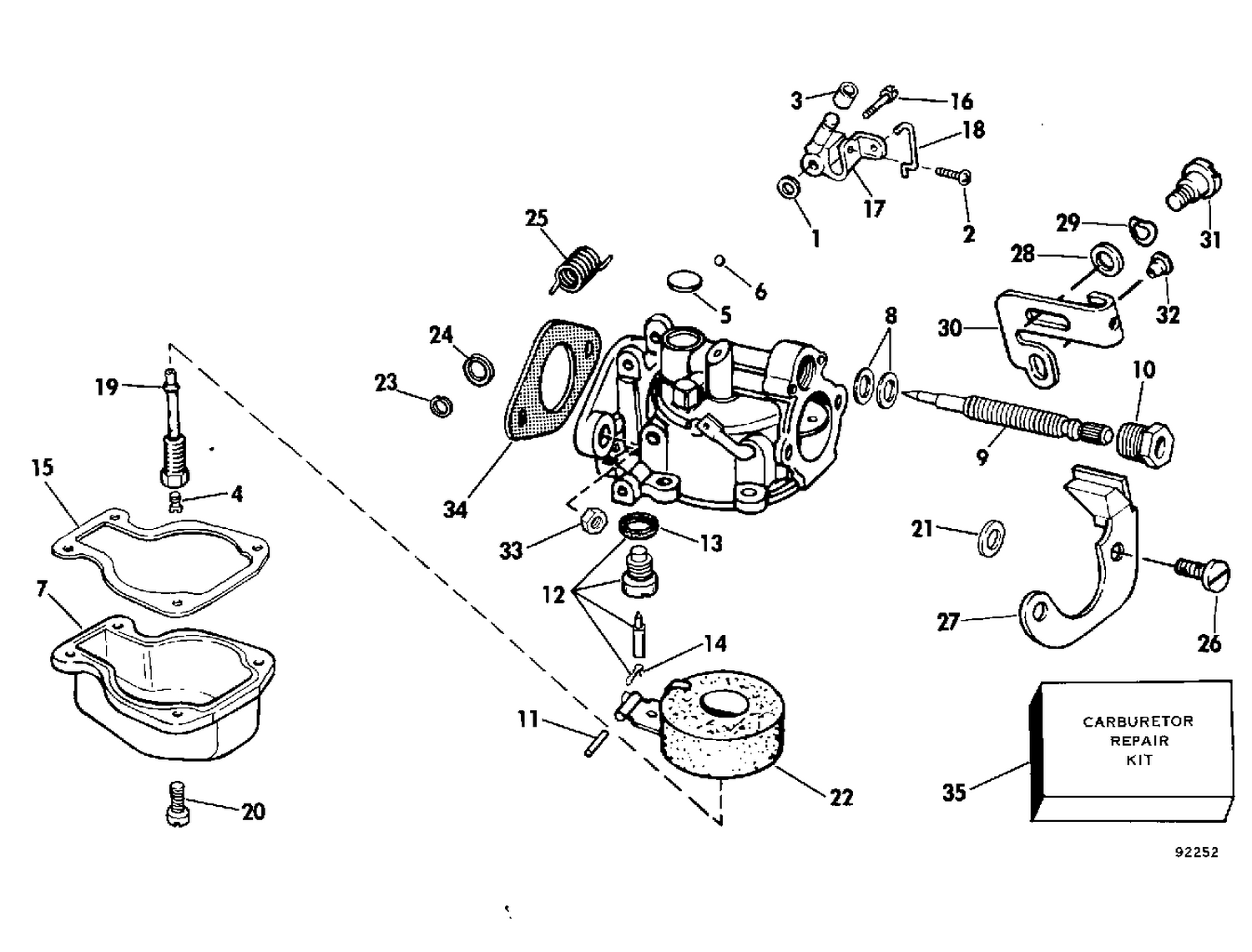

| Ref | Part Number | Description |
|---|
| 7 |
0330881 |
FLOAT CHAMBER This part replaces 0319010. |
| 9 |
0431634 |
NEEDLE VALVE ASSY., Slow speed adjustment This part replaces 0388981. |
| 14 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 15 |
0338878 |
GASKET This part replaces 0319011. |
| 18 |
0323467 |
LINK, Cam follower |
| 19 |
0323410 |
NOZZLE, High speed |
| 20 |
0319008 |
GROMMET, Cable, lower motor cover |
| 23 |
0203949 |
E RING LINK This part replaces 0202755. |
| 26 |
0319547 |
SCREW, Clamp & ground lead |
| 27 |
0319544 |
ADAPTER, Choke plate to carb |
| 28 |
0309164 |
WASHER, Choke plate to adapter |
| 29 |
0309163 |
WAVE WASHER, Choke plate |
| 30 |
0325882 |
CHOKE PLATE |
| 31 |
0554715 |
SCREW, Choke plate to adapter |
| 32 |
0319571 |
PIVOT, Bellcrank to choke |
| 33 |
0328742 |
NUT This part replaces 0306338. |
| 34 |
0323452 |
GASKET |
| 0389618 |
0389618 |
CARBURETOR ASSEMBLY |
