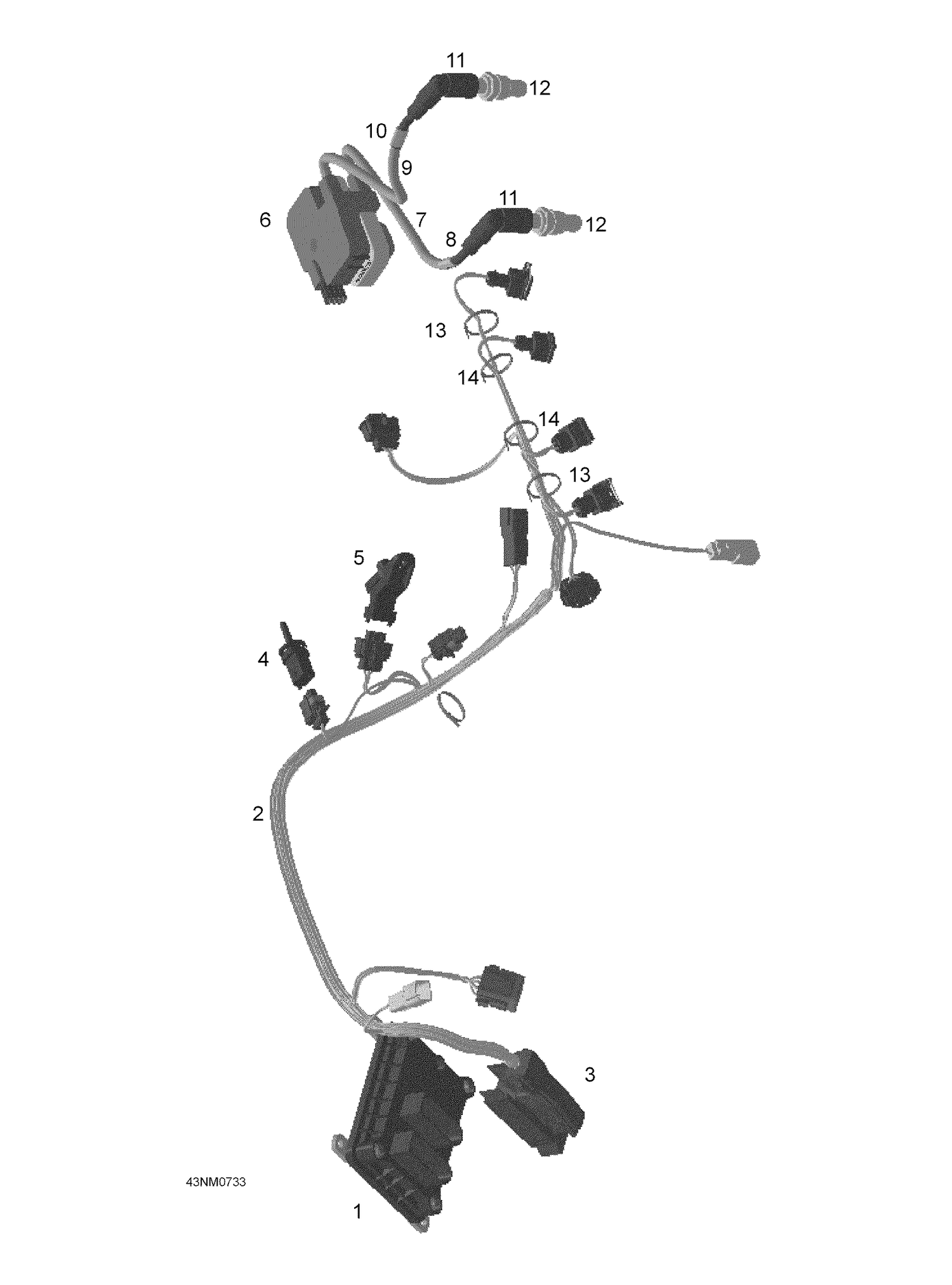

| Ref | Part Number | Description |
|---|
| 1 |
420665199 |
ECM, ENGINE CONTROL MODULE - Call your local BRP dealership |
| 2 |
420664317 |
Wiring harness ass'y |
| 3 |
420664450 |
Connector housing |
| 4 |
420966970 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 5 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 6 |
278001546 |
Double ignition coil This part replaces 420266070. |
| 7 |
420665333 |
Spark Plug Cable This part replaces 420664300. |
| 8 |
420660632 |
SLEEVE, MAG SIDE - Call your local BRP dealership |
| 9 |
420664307 |
SPARK PLUG CABLE, 430 MM, PTO SIDE - Call your local BRP dealership |
| 10 |
420660630 |
SLEEVE, PTO SIDE - Call your local BRP dealership |
| 11 |
420866708 |
Spark plug connector |
| 12 |
512060029 |
Spark Plug NGK BR8ECS |
| 13 |
420866714 |
Tie Rap 142x3,2 MM |
