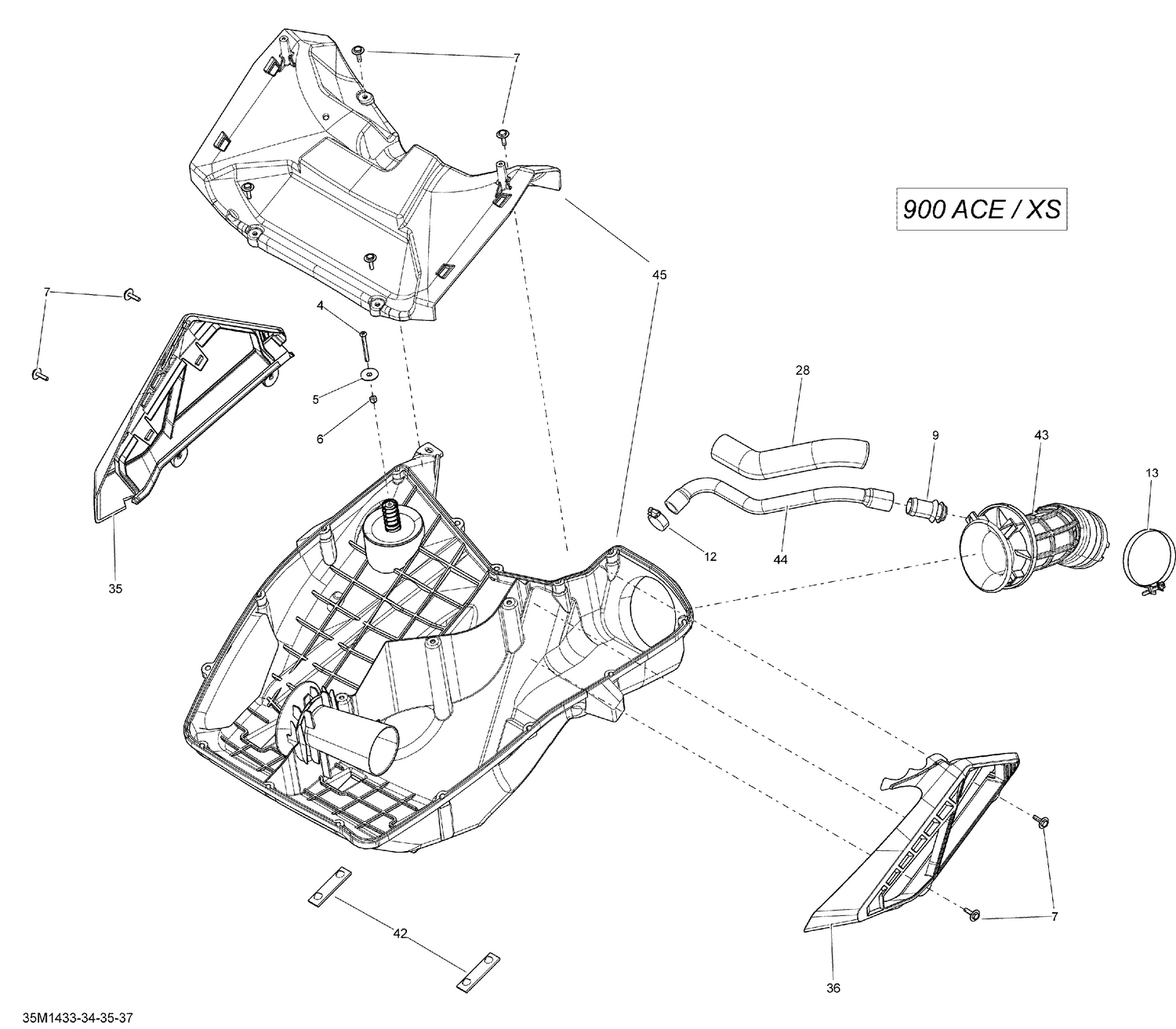

02- Air Intake System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 205444086 | Socket Head Screw M4 X 40 |
| 5 | 224060201 | Flat Washer |
| 6 | 232541414 | Elastic Stop Nut M4 |
| 7 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 9 | 273000234 | Breather Valve |
| 12 | 293650172 | Tridon Gear Clamp |
| 13 | 293650229 | Gemi Clamp |
| 28 | 508000648 | Tube Isolator |
| 35 | 508000730 | RH Air Filter |
| 36 | 508000731 | LH Air Filter |
| 42 | 508000744 | Stopper |
| 43 | 508000827 | Intake Hose This part replaces 508000745. |
| 44 | 508000746 | Hose Vent |
