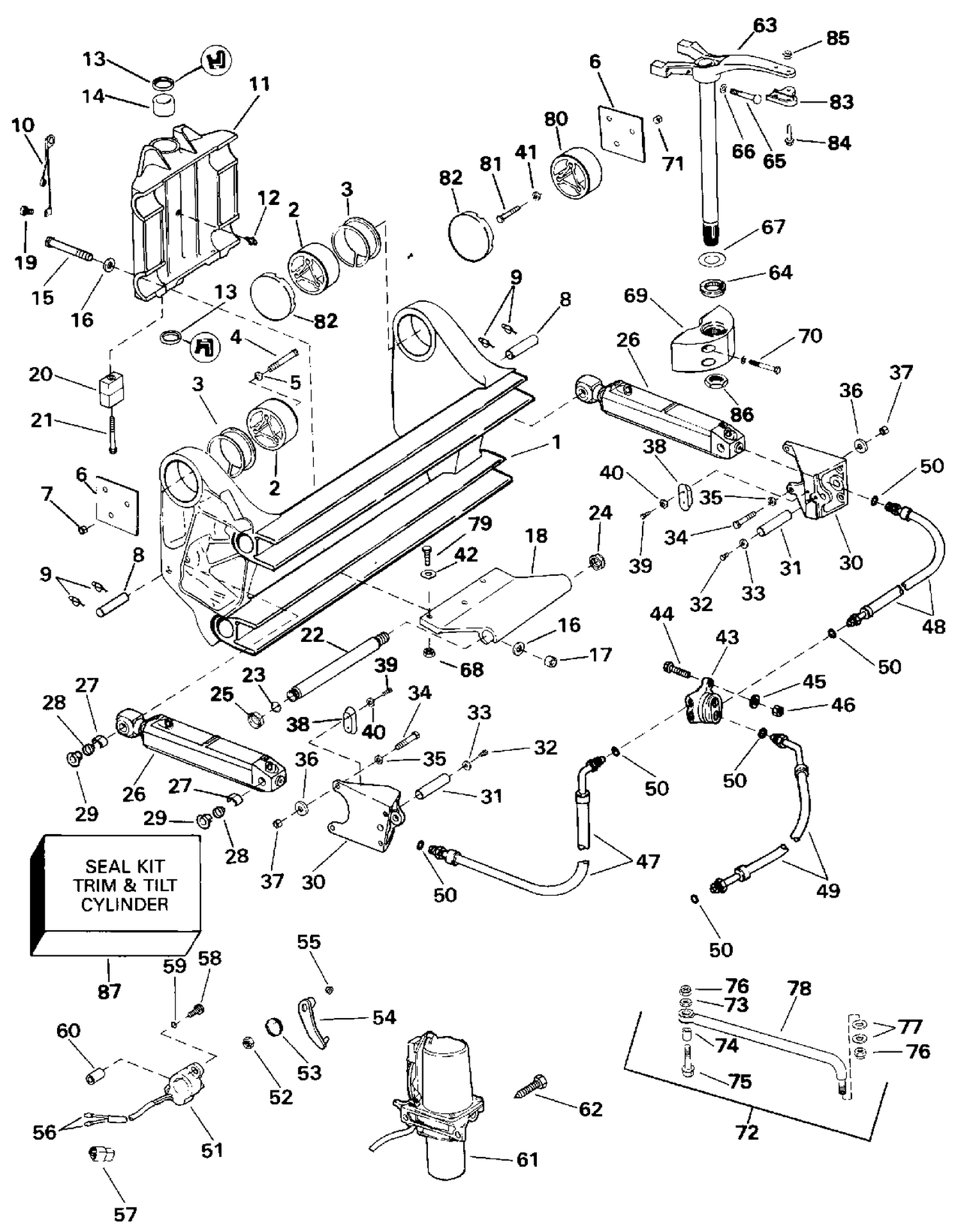

| Ref | Part Number | Description |
|---|
| 1 |
0435458 |
TRANSOM BRACKET |
| 2 |
0340426 |
TRUNNION, Transom bracket |
| 3 |
0337527 |
BUSHING, Trunnion |
| 4 |
0326900 |
SCREW, Exhaust housing |
| 6 |
0339585 |
PLATE, Stop bracket to stringer |
| 8 |
0337066 |
PIN, Tilt cyl. to trans. brkt. |
| 9 |
0334259 |
CLIP |
| 10 |
0584136 |
FIL, masse |
| 11 |
0435945 |
SWIVEL BRACKET |
| 15 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 16 |
0320248 |
RONDELLE, écrou |
| 17 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 18 |
0337502 |
BRACKET |
| 18 |
0340104 |
BRACKET |
| 20 |
0433458 |
ANODE, Port stern bracket |
| 21 |
0333350 |
SCREW, Anode |
| 22 |
0335553 |
TILT TUBE This part replaces 0321052. |
| 22 |
0337499 |
TILT TUBE |
| 23 |
0335469 |
WIPER, Tilt lever |
| 24 |
0323599 |
LOCKNUT |
| 25 |
0322376 |
NUT, Wiper, tilt tube |
| 25 |
0323599 |
LOCKNUT |
| 26 |
0986149 |
CYLINDER ASSY |
| 27 |
0913665 |
SPRING, Ground |
| 28 |
0914719 |
GROMMET, Pin bushing |
| 29 |
0914718 |
BUSHING, Pin |
| 30 |
0337064 |
BRACKET, Tilt cylinder |
| 31 |
0337070 |
PIN, Tilt cyl. to brkt. |
| 34 |
0552899 |
SCREW, Lwr, supp. brkt., short |
| 36 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 38 |
0173029 |
ANODE |
| 43 |
3852559 |
MANIFOLD BLOCK This part replaces 0911822. |
| 45 |
0326609 |
RONDELLE, levier de verrouillage |
| 47 |
0434783 |
OIL LINE, Cylinder, up |
| 47 |
3853855 |
OIL LINE, Starboard, up This part replaces 0985615. |
| 48 |
0434784 |
OIL LINE, Cylinder, down |
| 49 |
3853855 |
OIL LINE, Starboard, up This part replaces 0985615. |
| 51 |
0582501 |
SENDING UNIT ASSY |
| 57 |
0511847 |
CONNECTOR, Sender |
| 58 |
0337766 |
SCREW, Sending unit to stringer |
| 59 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 60 |
0330130 |
ROLLER |
| 61 |
3860879 |
Manifold & Pump Ay This part replaces 0986914. |
| 62 |
3852581 |
LAG SCREW This part replaces 0911975. |
| 63 |
0436982 |
STEERING ARM ASSY. This part replaces 0433282. |
| 64 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 67 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 69 |
0340006 |
BRACKET, Mount This part replaces 0339305. |
| 70 |
0334936 |
SCREW, Mount |
| 72 |
0173700 |
STEERING CONNECTOR KIT - STAINLESS STEEL This part replaces 0436791. |
| 78 |
0173700 |
STEERING CONNECTOR KIT - STAINLESS STEEL This part replaces 0173694. |
| 80 |
0436716 |
BUMPER, Motor stop |
| 81 |
0326900 |
SCREW, Exhaust housing |
| 82 |
0339592 |
COVER, Stop bracket |
| 83 |
0340105 |
ADAPTOR, Steering arm |
| 84 |
0125179 |
SCREW, Bracket to arm |
| 86 |
0320746 |
CROU, support de montage |
