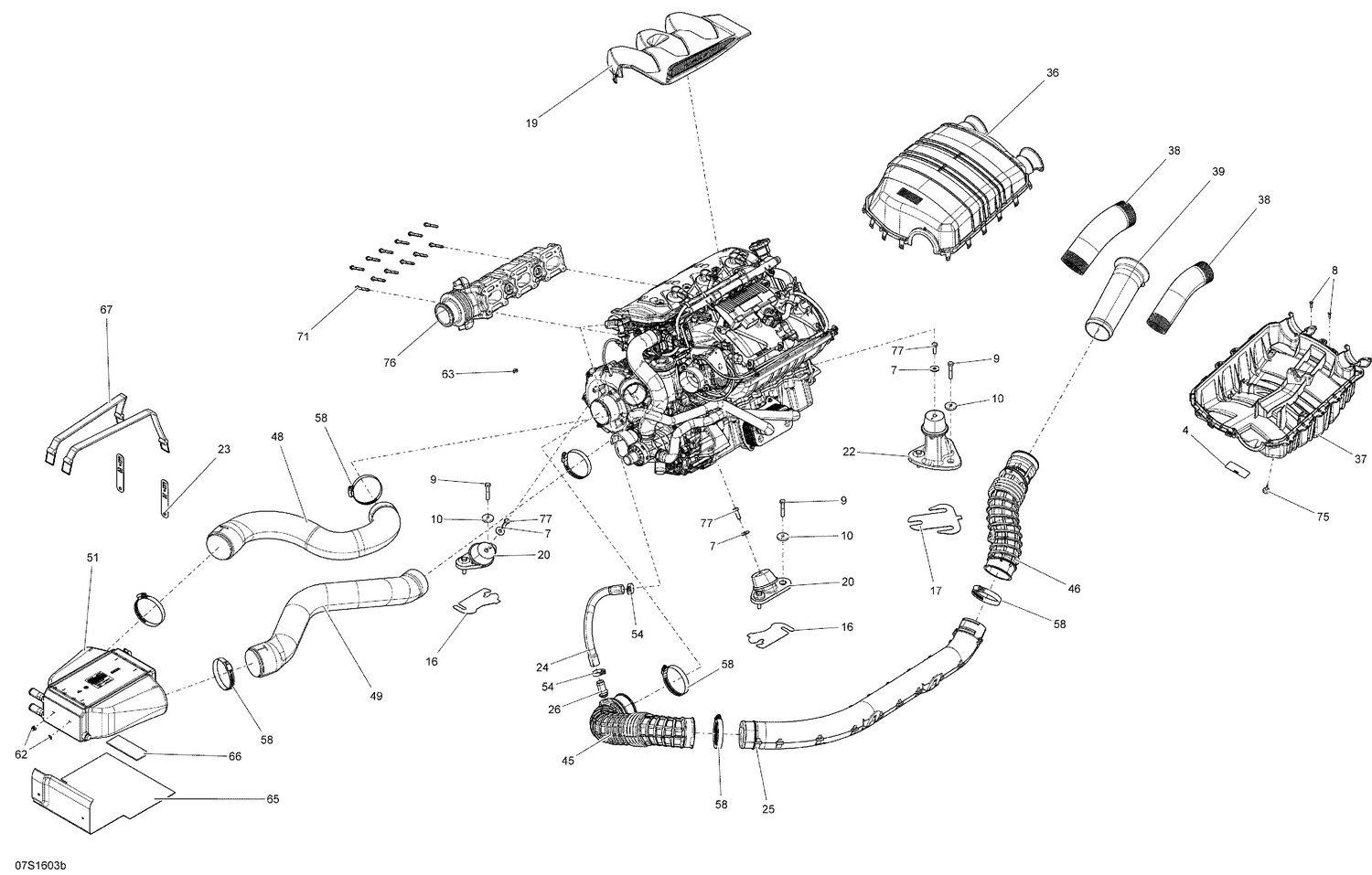

01- Engine - RXT 260
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 219903177 | Air Silencer Notice Decal |
| 7 | 234082600 | Flat Washer 8 mm, Stainless |
| 8 | 250000287 | Flange Torx Screw K40 X 16 |
| 9 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 10 | 250200018 | Cone Washer |
| 16 | 270000762 | Shim 1.3 mm |
| 17 | 270000770 | Shim 1.3 mm |
| 19 | 270000804 | Engine Cover |
| 20 | 270001081 | Engine Support Ass'y This part replaces 270000882. |
| 22 | 270000886 | Rubber Mount |
| 23 | 270000946 | HOLDING STRAP - Call your local BRP dealership |
| 24 | 270000950 | Formed Hose |
| 25 | 273000233 | HOSE INTAKE - Call your local BRP dealership |
| 26 | 273000234 | Breather Valve |
| 36 | 273000372 | SILENCER_INTAKE UP - Call your local BRP dealership This part replaces 273000357. |
| 37 | 273000356 | SILENCER_INTAKE LWR - Call your local BRP dealership |
| 38 | 273000290 | Air Silencer Hose |
| 38 | 273000299 | AIR SILENCER TUBE - Call your local BRP dealership |
| 39 | 273000359 | Intake Hose |
| 45 | 273000328 | Hose Intake, Rear |
| 46 | 273000322 | HOSE CONNECTOR - Call your local BRP dealership |
| 48 | 273000361 | Formed Hose |
| 49 | 273000362 | Formed Hose |
| 54 | 293650051 | Tridon Gear Clamp |
| 58 | 293650179 | Tridon Clamp |
| 58 | 293650244 | Tridon Gear Clamp |
| 62 | 293730016 | Black, Dart |
| 63 | 293750002 | Tie Wrap 142 mm |
| 65 | 293830146 | RUBBER PAD - Call your local BRP dealership |
| 66 | 293830180 | PAD-RUBBER - Call your local BRP dealership |
| 67 | 293850093 | Fuel Tank Strap |
| 71 | 420641198 | Torx Flange Screw M6 X 45 |
| 75 | 708000759 | Rubber Stopper |
| 76 | 296000422 | Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
