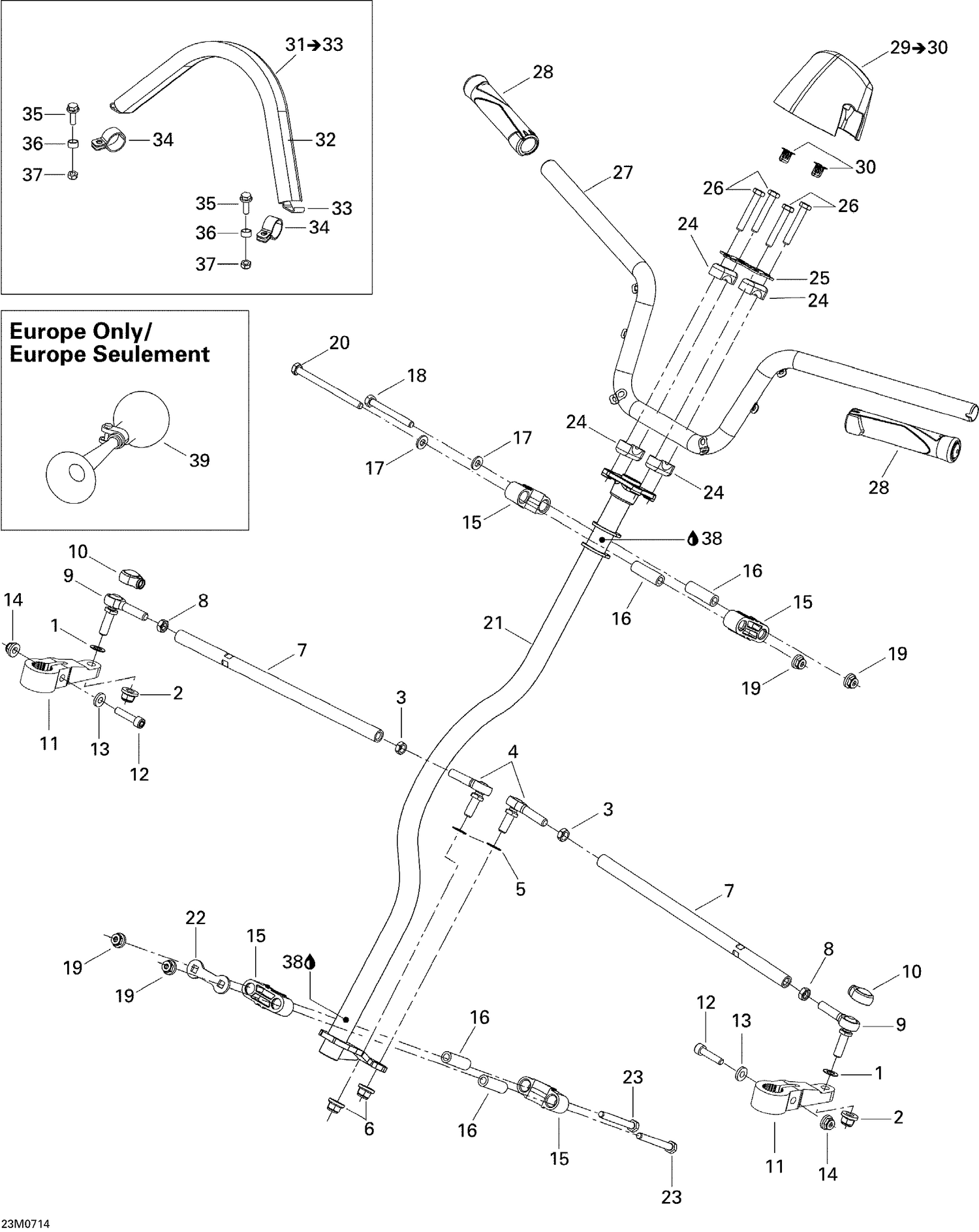

| Ref | Part Number | Description |
|---|
| 1 |
503175800 |
Washer |
| 2 |
250100165 |
Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 3 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 4 |
506151845 |
LH JOINT BALL - Call your local BRP dealership |
| 5 |
503175800 |
Washer |
| 6 |
250100165 |
Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 7 |
506151884 |
TIE ROD - Call your local BRP dealership |
| 8 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 9 |
506152212 |
BALL JOINT - Call your local BRP dealership This part replaces 506152017. |
| 10 |
506151650 |
PROTECTION CAP - Call your local BRP dealership |
| 11 |
506152030 |
Swivel Arm |
| 12 |
207084544 |
Hex. Screw M8 X 45 |
| 13 |
234081410 |
Flat Washer 8 mm |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
506150400 |
Housing Half |
| 16 |
506150500 |
Housing Bushing |
| 17 |
503189157 |
Washer |
| 18 |
207087044 |
Hex. Screw M8 X 70 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
230081044 |
HEX. SCREW M8 X 110 - Call your local BRP dealership |
| 21 |
506152009 |
STEERING MAIN TUBE - Call your local BRP dealership |
| 22 |
506150600 |
Stopper Plate |
| 23 |
207087044 |
Hex. Screw M8 X 70 |
| 24 |
709400919 |
Steering Support This part replaces 506151622. |
| 25 |
506151547 |
REINFORCEMENT - Call your local BRP dealership |
| 26 |
250000082 |
HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership |
| 27 |
506151986 |
HANDLE BAR - Call your local BRP dealership |
| 28 |
506152238 |
Handle Grip This part replaces 506152116. |
| 30 |
517302785 |
Edge Clip |
| 32 |
506152115 |
Strap Ass'y This part replaces 415090200. |
| 33 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 34 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 35 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 36 |
506152156 |
Bushing |
| 37 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 38 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
