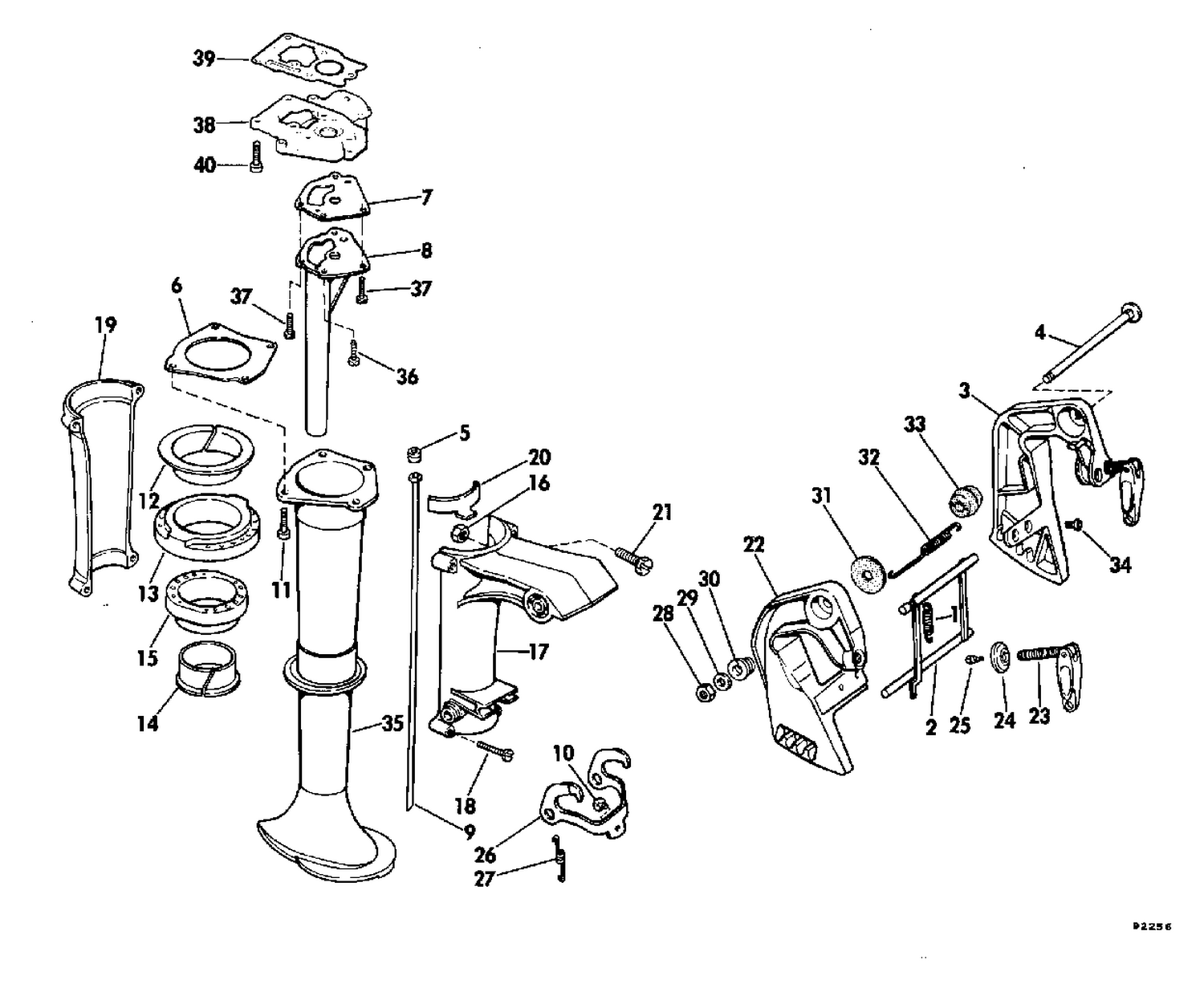

| Ref | Part Number | Description |
|---|
| 1 |
0202021 |
SPRING, Link to shallow water drive |
| 2 |
0381816 |
LEVER,Titl adj. |
| 3 |
0391956 |
STERN BRACKET ASSY., Port (incl. item 23) This part replaces 0390016. |
| 4 |
0326134 |
BOLT, Tilting This part replaces 0304277. |
| 5 |
0323286 |
GROMMET, Water tube |
| 6 |
0315338 |
GASKET, Exh housing |
| 7 |
0323936 |
GASKET, Housing to cover |
| 8 |
0323939 |
HOUSING, Exhaust |
| 9 |
0323416 |
WATER TUBE |
| 9 |
0323417 |
WATER TUBE |
| 10 |
0315451 |
BUMPER REVERSE LOCK |
| 11 |
0308707 |
SCREW |
| 12 |
0314866 |
PICOT BEARING, Upper |
| 13 |
0314930 |
DAMENER,Vibration,upper |
| 14 |
0314865 |
PIVOT BEARING, Lower |
| 15 |
0314929 |
DAMPENER, Vibration pivot bearing, lower |
| 17 |
0314788 |
SWIVEL BRACKET ASS, Front |
| 19 |
0314787 |
SWIVEL BRACKET, Rear |
| 20 |
0314947 |
BLOCK, Friction |
| 21 |
0314946 |
SCREW, Friction block |
| 22 |
0391955 |
STERN BRACKET ASSY This part replaces 0388033. |
| 23 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0388346. |
| 26 |
0314801 |
LOCK, Reverse |
| 27 |
0315040 |
SPRING, Reverse lock |
| 29 |
0306433 |
WASHER |
| 30 |
0302051 |
SPRING Tilting bolt |
| 31 |
0304278 |
WASHER |
| 32 |
0311279 |
SPRING, Long |
| 33 |
0301983 |
CONICAK WASHER,Stern brkt |
| 34 |
0901889 |
SCREW This part replaces 0303396. |
| 35 |
0314791 |
EXHAUST HOUSING |
| 35 |
0318479 |
EXHAUST HOUSING |
| 36 |
0132679 |
SCREW, Handle adjustment |
| 37 |
0313776 |
SCREW, Knob to link This part replaces 0315341. |
| 38 |
0324709 |
ADAPTER, Exhaust housing |
| 39 |
0324829 |
GASKET, Adapter to powerhead |
