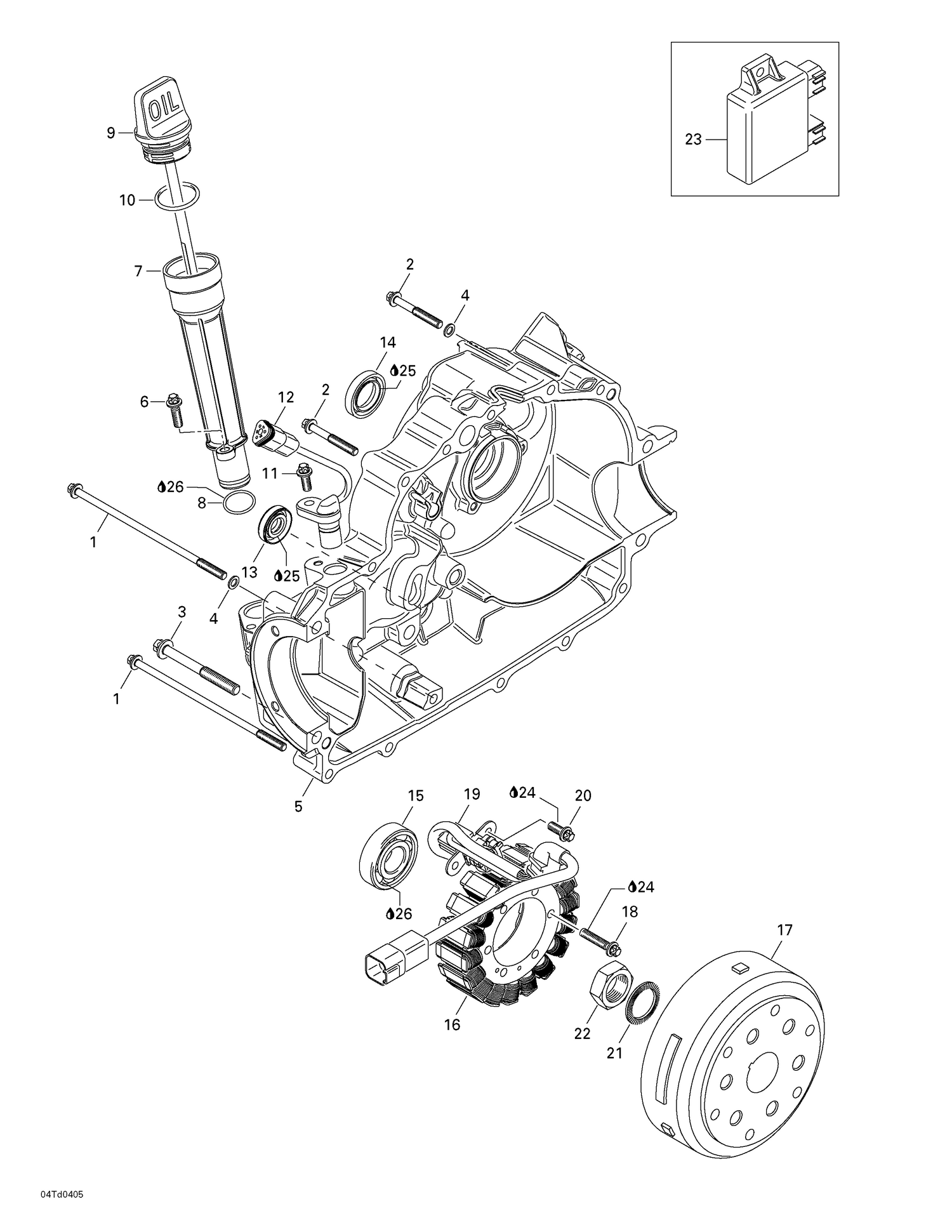

| Ref | Part Number | Description |
|---|
| 1 |
420440982 |
Torx Flange Screw M6 X 130 |
| 3 |
420440402 |
Torx Flange Screw M8 X 65 |
| 4 |
404146600 |
Sealing Washer |
| 5 |
Not |
Available As Spare Part - Magneto Cover (See Crankcase) |
| 6 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 7 |
420956980 |
Dipstick Tube |
| 8 |
420630430 |
O-RING - Call your local BRP dealership |
| 9 |
420956895 |
OIL DIPSTICK - Call your local BRP dealership |
| 10 |
420430590 |
O-ring |
| 11 |
420440162 |
Torx Flange Screw M6 X 16 |
| 12 |
420265727 |
Camshft Position Sensor Ass'y This part replaces 420265622. |
| 13 |
Not |
Available As Spare Part - Oil Seal (See Crankcase) |
| 14 |
Not |
Available As Spare Part - Oil Seal (See Crankcase) |
| 15 |
Not |
Available As Spare Part - Ball Bearing (See Crankcase) |
| 16 |
420296630 |
GENERATOR - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - Rotor |
| 18 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 19 |
420260870 |
Cable Cover |
| 20 |
420440162 |
Torx Flange Screw M6 X 16 |
| 21 |
420845510 |
Disc |
| 22 |
420242012 |
Hex. Nut M24 This part replaces 420242950. |
| 23 |
420265820 |
Amplifier Box |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293550030 |
Grease, Super Lube |
