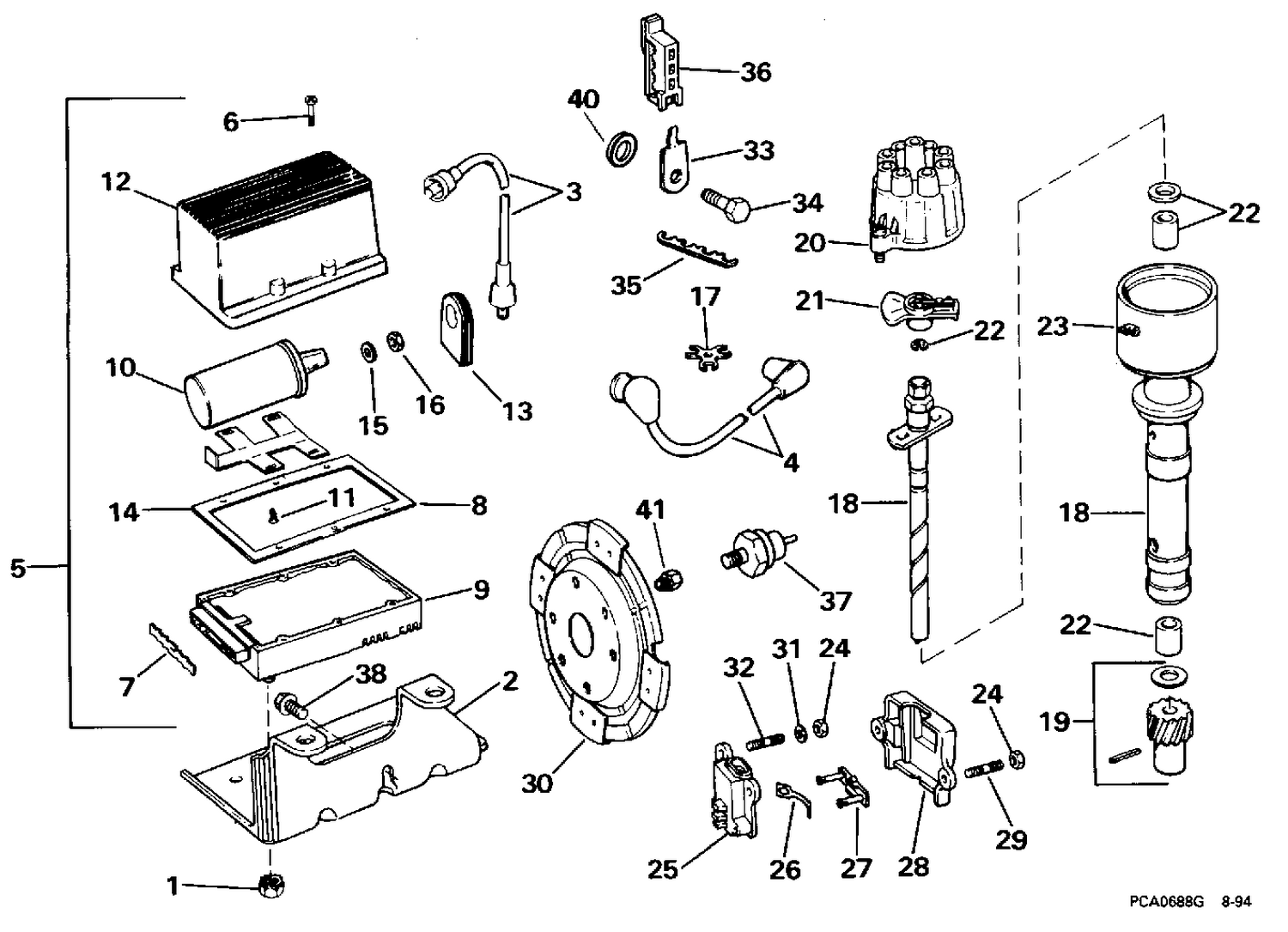

| Ref | Part Number | Description |
|---|
| 1 |
0311375 |
NUT This part replaces 3852099. |
| 2 |
3853377 |
BRACKET, Ignition module |
| 3 |
3853549 |
LEAD, Coil to distributor |
| 4 |
3853829 |
LEAD, Distributor to #1 & 2 |
| 4 |
3853830 |
LEAD, Distributor to #7 & 8 |
| 4 |
3853831 |
LEAD, Distributor to #3 & 4 |
| 4 |
3853832 |
LEAD, Distributor to #5 & 6 |
| 5 |
3854230 |
MODULE ASSY., Ignition |
| 6 |
3853298 |
SCREW, Ignition module |
| 8 |
3853297 |
GASKET, Ignition module |
| 9 |
MODULE, |
Ignition |
| 10 |
3853548 |
COIL, Ignition module |
| 11 |
3853552 |
SCREW, Coil bracket |
| 12 |
3853553 |
COVER, Ignition module |
| 13 |
3853554 |
GROMMET, Ignition module |
| 14 |
3853555 |
BRACKET, Ignition module |
| 17 |
3852492 |
RETAINER, 3 wire |
| 18 |
3854128 |
DISTRIBUTOR |
| 19 |
3853888 |
GEAR, Collar & parts pkg. |
| 20 |
3853815 |
CAP ASSY., Distributor |
| 21 |
3854134 |
ROTOR |
| 22 |
3853795 |
BEARING |
| 23 |
3853812 |
BRACKET |
| 24 |
0311375 |
NUT This part replaces 3852099. |
| 25 |
3853990 |
SENSOR, Crankshaft |
| 26 |
3853259 |
SPRING, Sensor locator |
| 27 |
3853260 |
LOCATOR, Ignition sensor |
| 28 |
3852828 |
COVER, Sensor |
| 29 |
3853300 |
STUD, Sensor cover |
| 30 |
3852952 |
RING, Ignition timing |
| 32 |
3853300 |
STUD, Sensor cover |
| 33 |
3852827 |
BRACKET, Ignition leads |
| 34 |
3853154 |
SCREW, Bracket to cylinder head |
| 34 |
3853389 |
SCREW, Bracket to engine |
| 35 |
3852491 |
RETAINER, 4 Wire |
| 36 |
3852619 |
RETAINER |
| 37 |
3853956 |
SENSOR, Engine knock |
| 38 |
3853428 |
SCREW, Anchor bracket |
| 40 |
0312972 |
WASHER, Alternator brkt This part replaces 3852116. |
