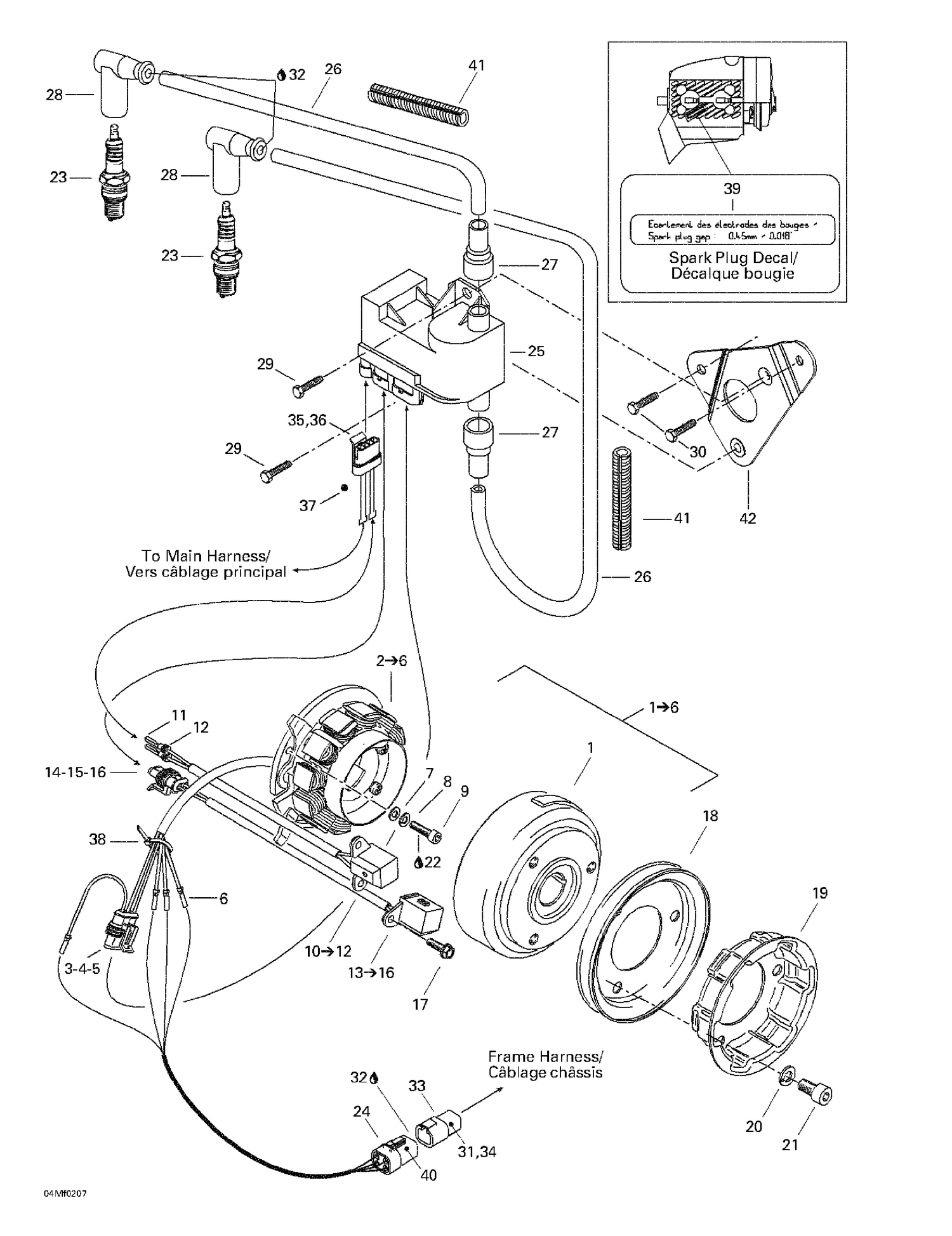

| Ref | Part Number | Description |
|---|
| 1 |
420889376 |
Flywheel This part replaces 420889370. |
| 3 |
409209600 |
Female Housing, 3 Circuits |
| 4 |
278001014 |
Female Terminal |
| 5 |
278001013 |
Wire Seal |
| 6 |
515175567 |
Female Terminal |
| 7 |
420927574 |
Washer 5.3 This part replaces 420927571. |
| 8 |
420945750 |
Lock Washer |
| 9 |
420840515 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 11 |
278001014 |
Female Terminal |
| 12 |
278001013 |
Wire Seal |
| 14 |
409209500 |
Female Housing, 2 Circuits |
| 15 |
278001014 |
Female Terminal |
| 16 |
278001013 |
Wire Seal |
| 17 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 18 |
420980486 |
V-Belt Pulley |
| 19 |
420852414 |
Rope Sheave |
| 20 |
420845311 |
Lock Washer |
| 21 |
420841522 |
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership This part replaces 420841521. |
| 22 |
293800060 |
Loctite 243, 10 ml |
| 23 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 24 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 25 |
512059520 |
Calibration Module |
| 26 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 27 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 28 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 29 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 30 |
209561640 |
Hex. Screw M6 X 16 |
| 31 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 33 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 34 |
Not |
Available As Spare Part - Male Terminal |
| 35 |
409209700 |
Female Housing, 4 Circuits |
| 36 |
278001014 |
Female Terminal |
| 37 |
278001013 |
Wire Seal |
| 38 |
293750001 |
Tie Wrap 94 mm |
| 39 |
516000986 |
Spark Plug Decal |
| 40 |
278001474 |
Female Lock, 4 Circuits |
| 41 |
219704399 |
Was 409901700 Tubing (9 mm) |
