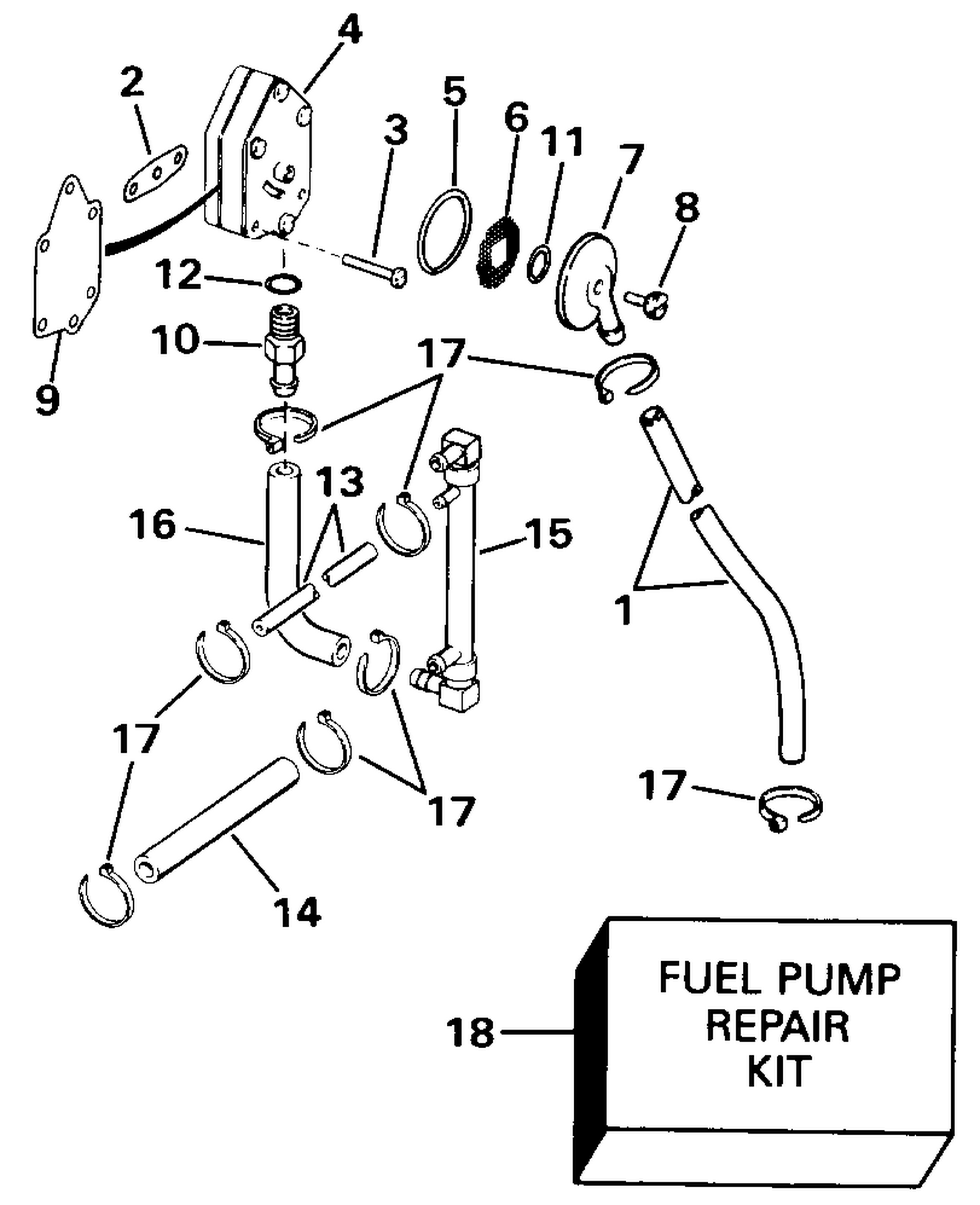

FUEL PUMP - 88 MODELS
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | HOSE, | Connector to filter, 11 1/2 in. (292mm) |
| 2 | 0303615 | GASKET |
| 4 | 0438556 | FUEL PUMP ASSY. This part replaces 0433387. |
| 13 | HOSE, | Manifold to primer, 13" (159mm) |
| 14 | HOSE, | Carb. to manifold, 4 1/2" (165mm) |
| 15 | 0390465 | FUEL MANIFOLD ASSY. |
| 16 | 0333407 | FLEXIBLE, filtre à carburant vers pompe à carburant |
| 17 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
