Parts Catalog

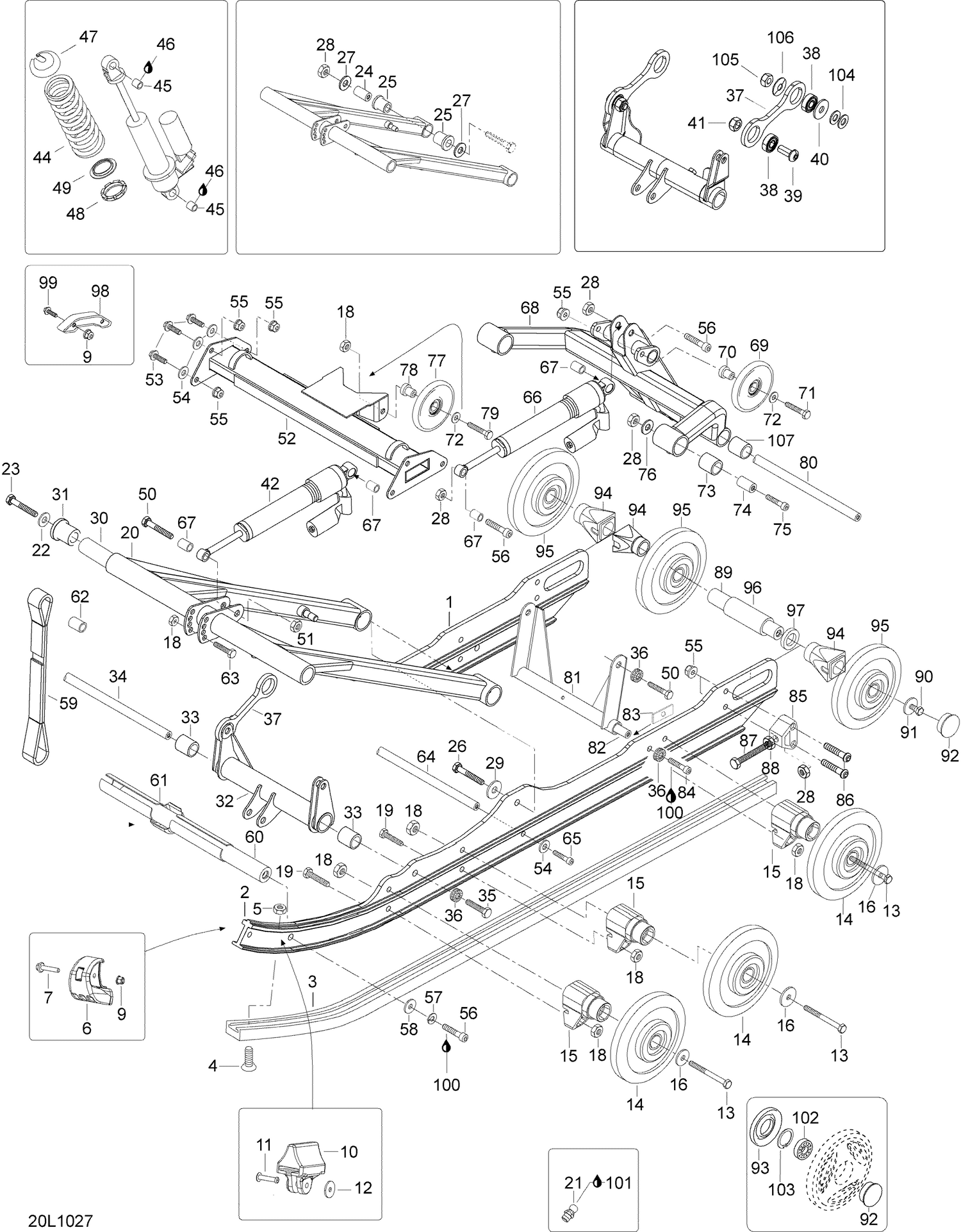

08- Rear Suspension

Parts (105)

Ref	Part Number	Description
1	503191978	R.H. Runner
2	503191978	L.H. Runner
3	503192189	Shoe
4	40845	Socket head screw M6 x 25
5	33010	Lock Nut M6 (1=10Pcs)
6	503192299	Runner Protector
7	207652544	Hex. Flange Screw M5 X 25
9	233251434	Flanged Elastic Nut M5 This part replaces 233251414.
10	503192106	Rubber Stopper
11	293150142	Pop Rivet 3/16"
12	503191273	Washer
13	207667044	Hex Flange Screw M6 x 65
14	503192197	Idler wheel, 141
15	503193894	Casted Support This part replaces 503191833.
16	503191820	Wheel Cup M6
18	233261414	Hex. Flange Elastic Nut M6 x 1.0
19	207662544	Hex. Flange Screw M6 X 25
20	503191989	Front arm
21	408200700	Grease Fitting
22	250200005	Conical Spring Washer M12
23	207026044	HEX. SCREW M12 X 60 - Call your local BRP dealership
24	605354157	Shaft
25	31065	Bushing
26	40021	Hex. screw M10 x 70
27	605355801	Washer
28	33012	Elastic stop nut M10
29	503183300	Washer
30	503192046	Shaft
31	31024	Cushion
32	605355772	Swing
33	31024	Cushion
34	605355800	Shaft
35	205005547	Screw M10 x 55
36	20068	Lock washer D10 (Nordlock)
37	605254159	Link plate
38	605631003	Ball bearing
39	205402546	Socket Screw BN.HD.ISO.7380
40	234002600	Flat Washer 10 mm, Stainless
41	232500416	Elastic Stop Nut M10
42	619330003	Shock, front arm (503192200)
43	619330005	Shock, rear arm (503192058)
44	250500011	Spring, front arm
44	503192356	Spring, rear arm
45	31094	Cushion
46	32161	Loctite 641, 50ml
47	605354631	Guide
48	Not	Available As Spare Part - Nut
49	Not	Available As Spare Part - Spring guide
50	40016	Hex. screw M10 x 45
51	33012	Elastic stop nut M10
52	503192100	Middle beam
53	40037	He. screw M8 x 25
54	234081410	Flat Washer 8 mm
55	233281414	Hex. Flange Elastic Nut M8
56	205005044	Socket head screw M10 x 50
57	33012	Elastic stop nut M10
58	20005	WASHER M10 - Call your local BRP dealership
59	605355116	Stopper strap
60	605353958	Shaft
61	605355096	Limiter
62	605455335	Sleeve
63	207084544	Hex. Screw M8 X 45
64	5343471	Shaft
65	205005044	Socket head screw M10 x 50
66	619330005	Shock rear arm (503192303)
67	5446652	Bushing
68	605354962	Rear arm
69	46100	Idler wheel 133/black
70	605454461	Sleeve
71	207084544	Hex. Screw M8 X 45 This part replaces 40008.
72	20077	M8 Washer
73	31065	Cushion
74	503191927	Shaft
75	205027544	SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership
76	20040	Washer A12
77	572043500	Idler Wheel
78	605454167	Sleeve
79	207083544	Hex. Screw M8 X 35
80	605355118	Shaft
81	605353953	Swing
82	605355119	Shaft
83	503192045	Support plate
84	205005547	Socket head screw M10 x 55, 12.9
85	5341633	Tensioner
86	205484546	Socket Head Screw M8 X 45
87	230100044	HEX. SCREW M10 X 100 - Call your local BRP dealership
88	232006414	Hex. Nut M10
89	503190429	Rear Axle
90	40050	Hex. screw M10 x 35
91	503190439	Washer
92	570063600	Wheel Cap
93	503190434	Labyrinth Seal
94	503190428	Rear Wheel Spacer
95	503192195	Idler wheel 165
96	503196317	Spacer This part replaces 503190430.
97	503190432	Washer
98	503192731	SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
99	207764044	BOLT CARRIAGE DIN.603 - Call your local BRP dealership
100	293800005	Loctite 271, 10 ml
101	293550033	SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
102	503190396	Ball Bearing
103	415129371	Retaining Ring
104	234001410	Flat Washer 10 mm
105	233401414	Lock Spring Nut M10
106	25004	Cup Spring
