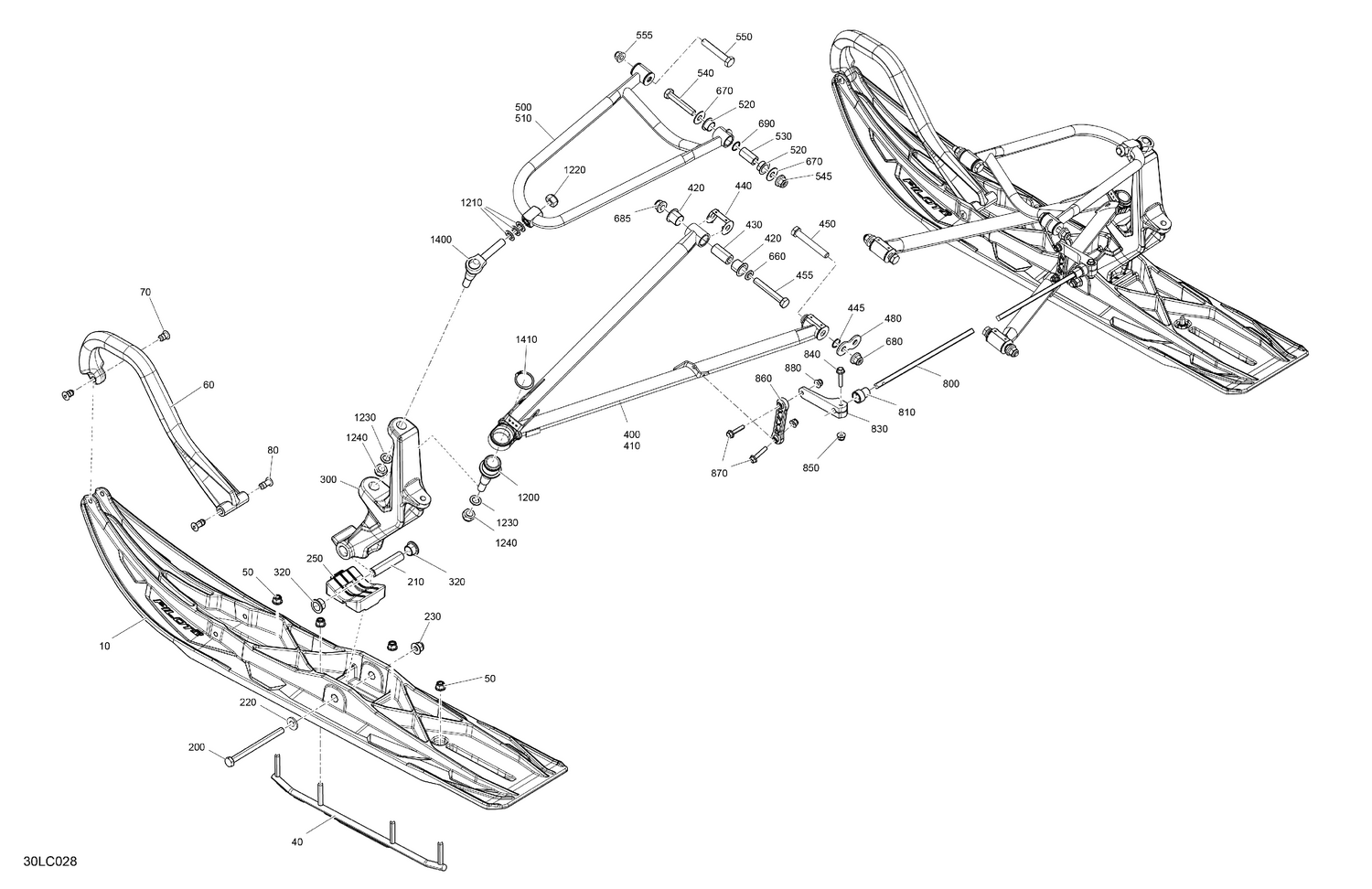

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 10 |
505074670 |
Black, Racing Ski |
| 27 |
0341281 |
SEAL |
| 28 |
0305123 |
O RING |
| 40 |
860201697 |
Runner Kit |
| 50 |
0341280 |
SEAL |
| 50 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 58 |
5000624 |
DRIVESHAFT Assembly, Upper This part replaces 0435769. |
| 59 |
0335510 |
SHIFT ROD |
| 60 |
505073138 |
Black, Handle |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 70 |
505071812 |
Retainer 17mm long |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 80 |
505072133 |
Retainer 23mm Long |
| 83 |
0331188 |
O-Ring |
| 85 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 87 |
PROPELLER |
Ref: 88 0387157 *BUSHING Assy, Prop, (std) 0387157 |
| 95 |
5006373 |
GEARCASE SEAL KIT This part replaces 0437753. |
| 96 |
5001595 |
Water Pump Repair Kit This part replaces 0435929. |
| 200 |
250000703 |
Hex. Screw M10 X 130 |
| 210 |
506133300 |
Spacer / Ski-axle |
| 220 |
503192496 |
Washer |
| 230 |
233201464 |
Hex. Elast. Flanged Nut M10 x 1.5 |
| 250 |
505072594 |
Ski Stopper |
| 300 |
505074688 |
Viper Red, RH Ski Leg RS |
| 320 |
505072690 |
Leg Bushing |
| 400 |
505074655 |
RH Lower Arm |
| 410 |
505074654 |
LH Lower Arm |
| 420 |
503191766 |
Cushion |
| 430 |
505072401 |
Aluminum Bushing |
| 440 |
505072634 |
Wear Plate |
| 445 |
505072448 |
O-Ring |
| 450 |
250001024 |
Screw Hex. M10 X 70 |
| 455 |
250001024 |
Screw Hex. M10 X 70 |
| 480 |
505074424 |
Rear Reinforcement |
| 500 |
505074899 |
LH Upper Arm |
| 510 |
505074900 |
RH Upper Arm |
| 520 |
505073018 |
Bushing |
| 530 |
505075322 |
Bushing |
| 540 |
250001023 |
Screw Hex. M10 X 60 |
| 545 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 550 |
250001023 |
Screw Hex. M10 X 60 |
| 555 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 660 |
503189564 |
Washer |
| 670 |
505072392 |
Washer |
| 680 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 685 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 690 |
505072448 |
O-Ring |
| 800 |
505074719 |
Stabiliser |
| 810 |
505072064 |
Bushing |
| 830 |
505073731 |
Stabilisator Lever |
| 840 |
207663056 |
Hex Flange Screw M6 X 1.0 X 30 |
| 850 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 860 |
505072204 |
Sway Bar Double Joint Link |
| 870 |
207663056 |
Hex Flange Screw M6 X 1.0 X 30 |
| 880 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 1200 |
505074133 |
Ball Joint |
| 1210 |
503189276 |
Washer |
| 1220 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 1230 |
503192491 |
Washer |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 |
| 1400 |
505072257 |
Upper Ball Joint |
| 0438051 |
5004639 |
G-Case .44 Std Os This part replaces 0438051. |
