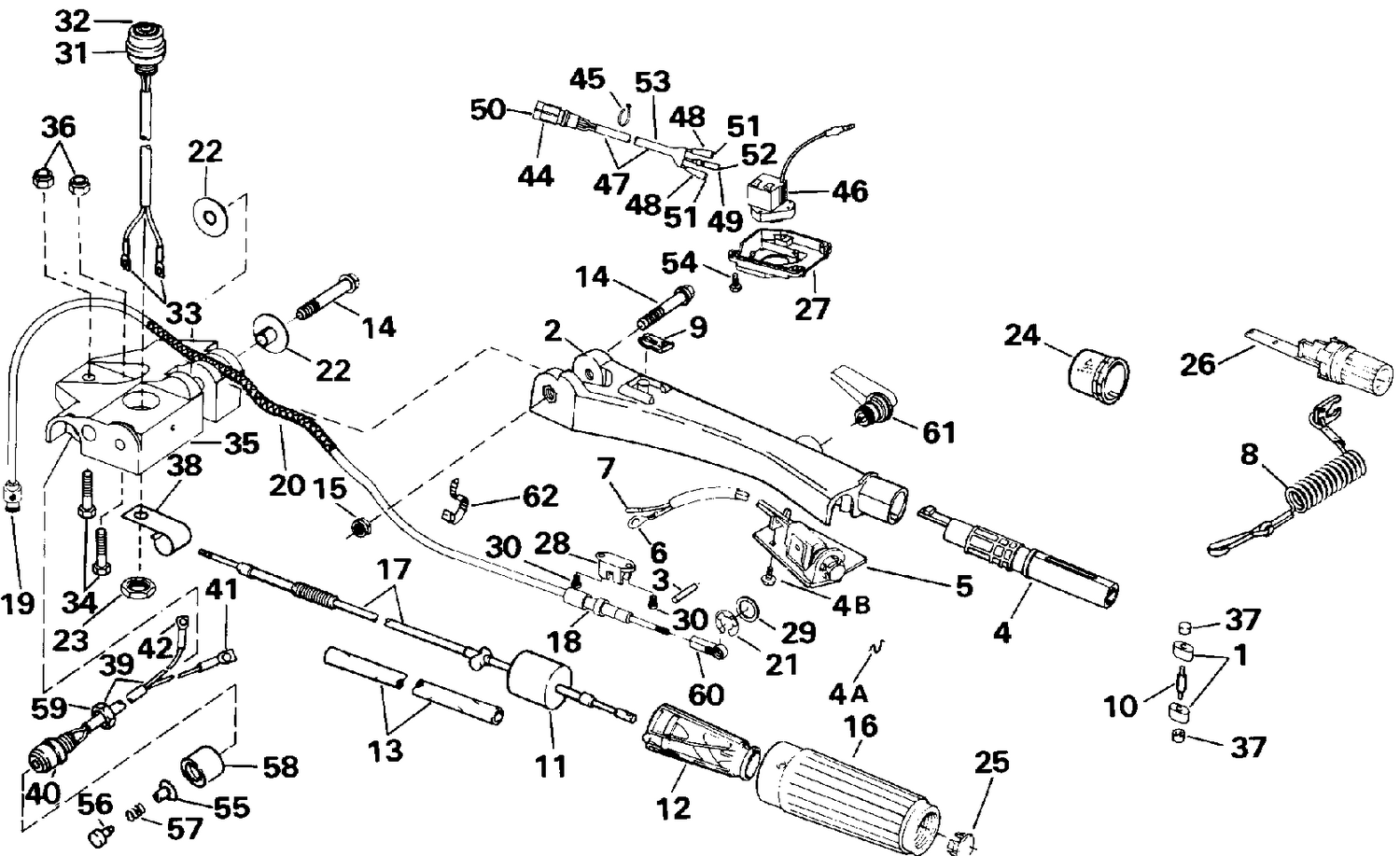

STEERING AND SHIFT HANDLE "M" MODEL NUMBER SUFFIX ONLY
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0434102 | STEERING HANDLE ASSY. |
| 5 | 0585133 | INTERRUPTEUR D'ARRÊT This part replaces 0584260. |
| 12 | 0329882 | GRIP&HELIX AY |
| 16 | 0433657 | GRIP ASSY |
| 18 | 0434674 | CABLE AY., Tilt assist |
| 21 | 0328260 | E-RING |
| 27 | 0334942 | COVER, Cable & horn |
| 28 | 0334161 | ANCHOR BLOCK |
| 29 | 0334162 | WASHER |
| 30 | 0306014 | VIS, ancrage |
| 31 | 0584399 | SWITCH AY., Primer |
| 35 | 0334642 | BRACKET, Steering handle |
| 46 | 0585992 | HORN This part replaces 0584212. |
| 47 | 0583935 | CABLE ASSEMBLY |
| 49 | 0513136 | SLEEVE |
| 53 | 0510772 | SLEEVE |
| 57 | 0313584 | SPRING |
| 61 | 0431941 | LEVER |
