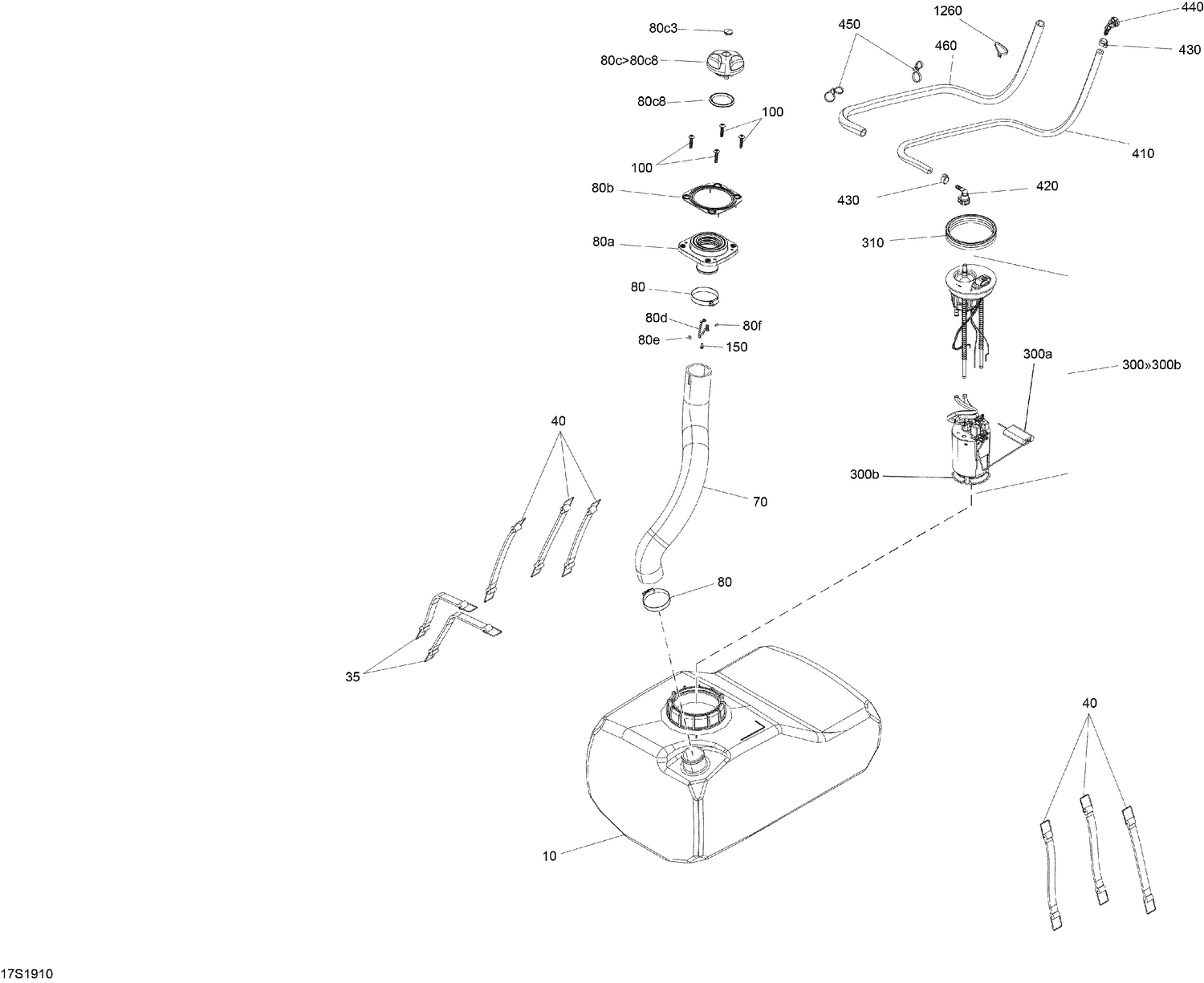

02- Fuel System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 275500962 | Fuel Tank |
| 35 | 293850087 | Fuel Tank Strap |
| 40 | 293850087 | Fuel Tank Strap |
| 70 | 275500969 | Formed Hose |
| 80 | 293650081 | Norma Clamp This part replaces 293650278. |
| 80a | 275500986 | Filler Neck |
| 80b | 293250434 | Gasket |
| 80c3 | 293000034 | Black, Snap Cap |
| 80c8 | 293250417 | Gasket |
| 80d | 275500507 | Fuel Cap Chain |
| 80e | 234032600 | Flat Washer M3, Stainless |
| 80f | 390407900 | Pop Rivet 1/8" |
| 100 | 250001007 | Screw Torx M6.81 X 30 |
| 150 | 241140060 | Screw K40 X 10 |
| 300a | 275500780 | Sensor Lever |
| 300b | 270600113 | Fuel Filter |
| 310 | 293250173 | Gasket |
| 420 | 275500921 | Quick Disconnect |
| 430 | 293650053 | Crimp Clamp |
| 440 | 293710105 | Elbow Fitting 90° |
| 450 | 293750053 | Tie Rap 300mm |
| 460 | 219704408 | Tubing 16 Mm 1000Mm Long |
