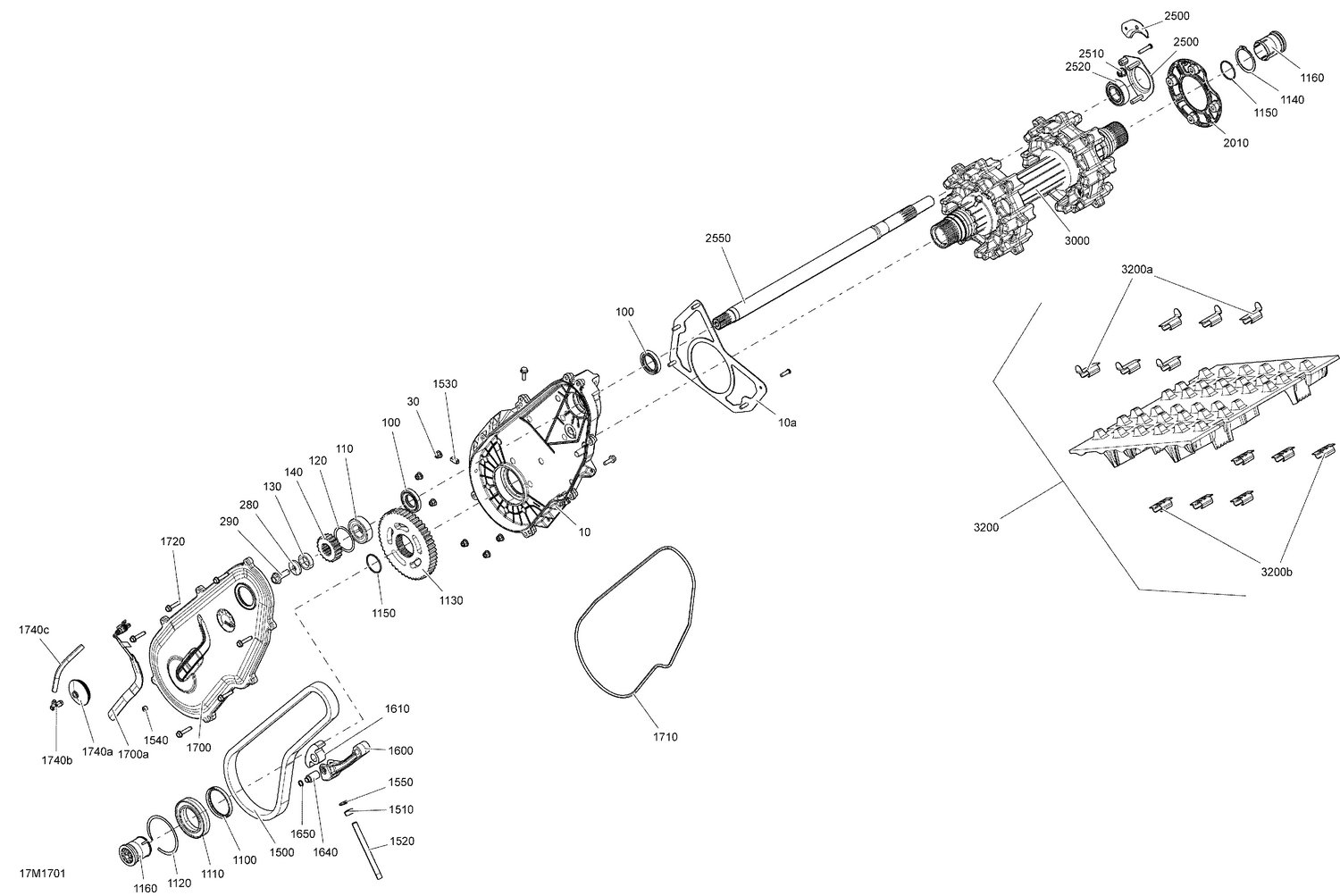

05- Drive System - All Models
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 518325816 | Plate |
| 100 | 293200168 | Oil Seal This part replaces 293250175. |
| 110 | 293350115 | Ball Bearing This part replaces 293350055. |
| 120 | 504152576 | Circlip |
| 130 | 504152628 | Shim |
| 140 | 504152031 | Sprocket, 19 Teeth |
| 280 | 504152784 | Spring Washer M10 |
| 290 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 1100 | 293200159 | Oil Seal This part replaces 504152571. |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1130 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 1140 | 504152572 | Circlip |
| 1150 | 293300122 | O-Ring |
| 1160 | 504152619 | Magnetic Cap |
| 1500 | 504152579 | Drive Chain, 102 Links |
| 1510 | 232006414 | Hex. Nut M10 X 1.5 |
| 1520 | 504152602 | Adjustment Screw |
| 1530 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 1550 | 250200100 | Bonded Washer |
| 1600 | 504153429 | Tensioner chain |
| 1610 | 504152739 | Slider Chain |
| 1640 | 504152841 | Tensioner Axle |
| 1650 | 504152282 | Circlip |
| 1700a | 504152896 | Rotation Sensor |
| 1710 | 293300130 | Tight Seal |
| 1720 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1740a | 504152860 | Cap |
| 1740b | 414580700 | Male Connector |
| 1740c | 219704410 | Polyurethane Hose 10000Mm Long |
| 2010 | 504153886 | Retaining Ring This part replaces 504152949. |
| 2500 | 504153185 | Bearing Housing |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2520 | 293350074 | Ball Bearing |
| 2550 | 504153000 | Countershaft |
| 3000 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
| 3200a | 415129528 | Track Guide This part replaces 415129222. |
