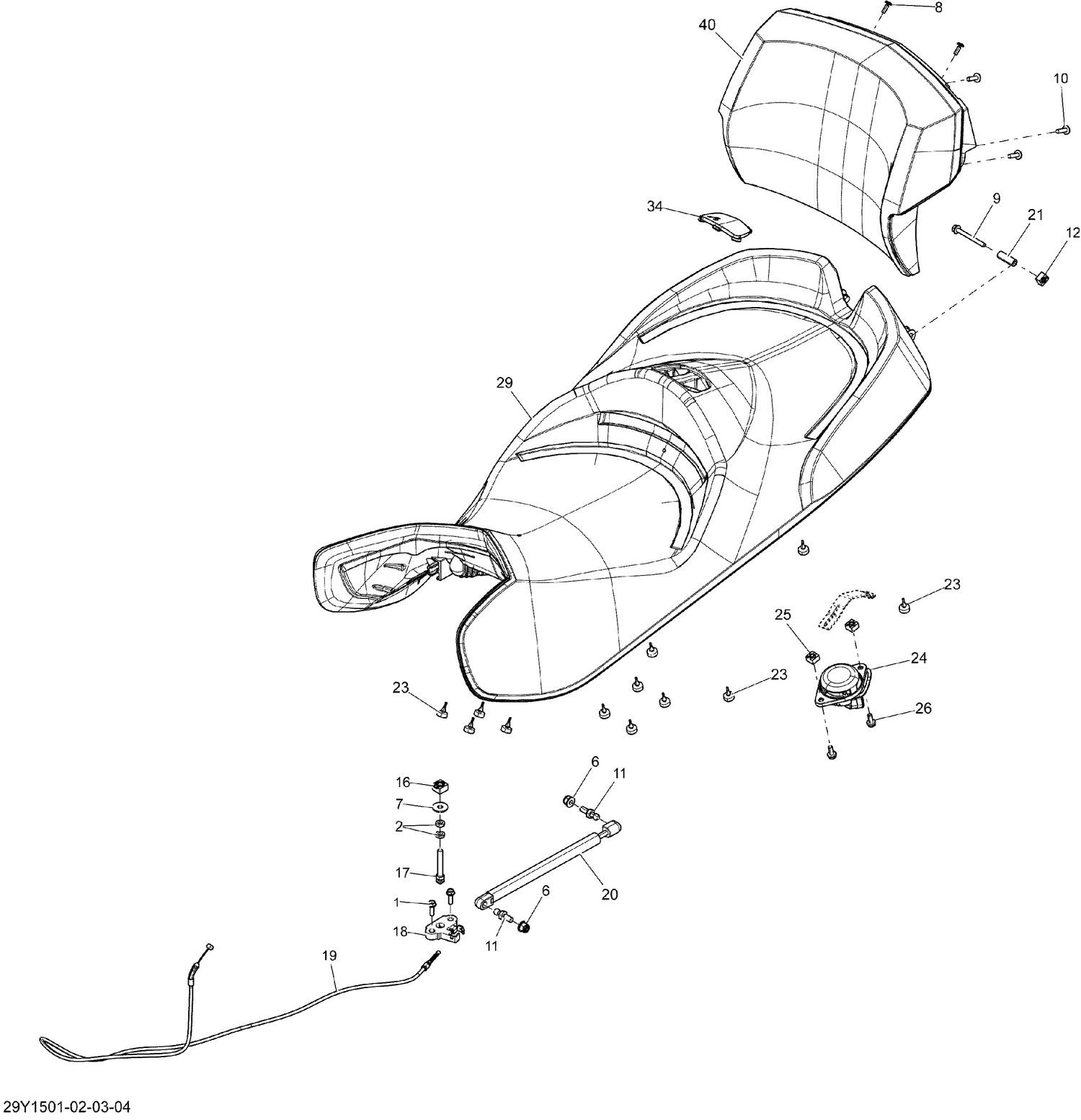

09- Seat _29Y1501
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 2 | 232180600 | Hex. Jam Nut M8 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 234082410 | Flat Washer 8 mm |
| 8 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 9 | 250000778 | Hex. Flange Screw M6 X 60 This part replaces 250000397. |
| 10 | 250000488 | Torx Truss Screw M6 X 20 |
| 11 | 250300039 | Ball Head Stud |
| 12 | 269500725 | M6 Nut Housing Ass'y |
| 16 | 269501943 | Elastic Nut Housing M8 |
| 17 | 705002223 | Lug |
| 18 | 705007379 | Latch |
| 19 | 708001743 | Seat Cable |
| 20 | 708000658 | Gaz Shock |
| 21 | 708000664 | Spacer |
| 23 | 708000759 | Rubber Stopper |
| 24 | 710008103 | Passenger Detection Switch This part replaces 710001346. |
| 25 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 26 | 207661644 | Hex. Flange Screw M6 X 16 |
| 29 | 708001570 | BLACK SEAT ASS'Y - Call your local BRP dealership |
| 34 | 708001633 | Black Cap |
