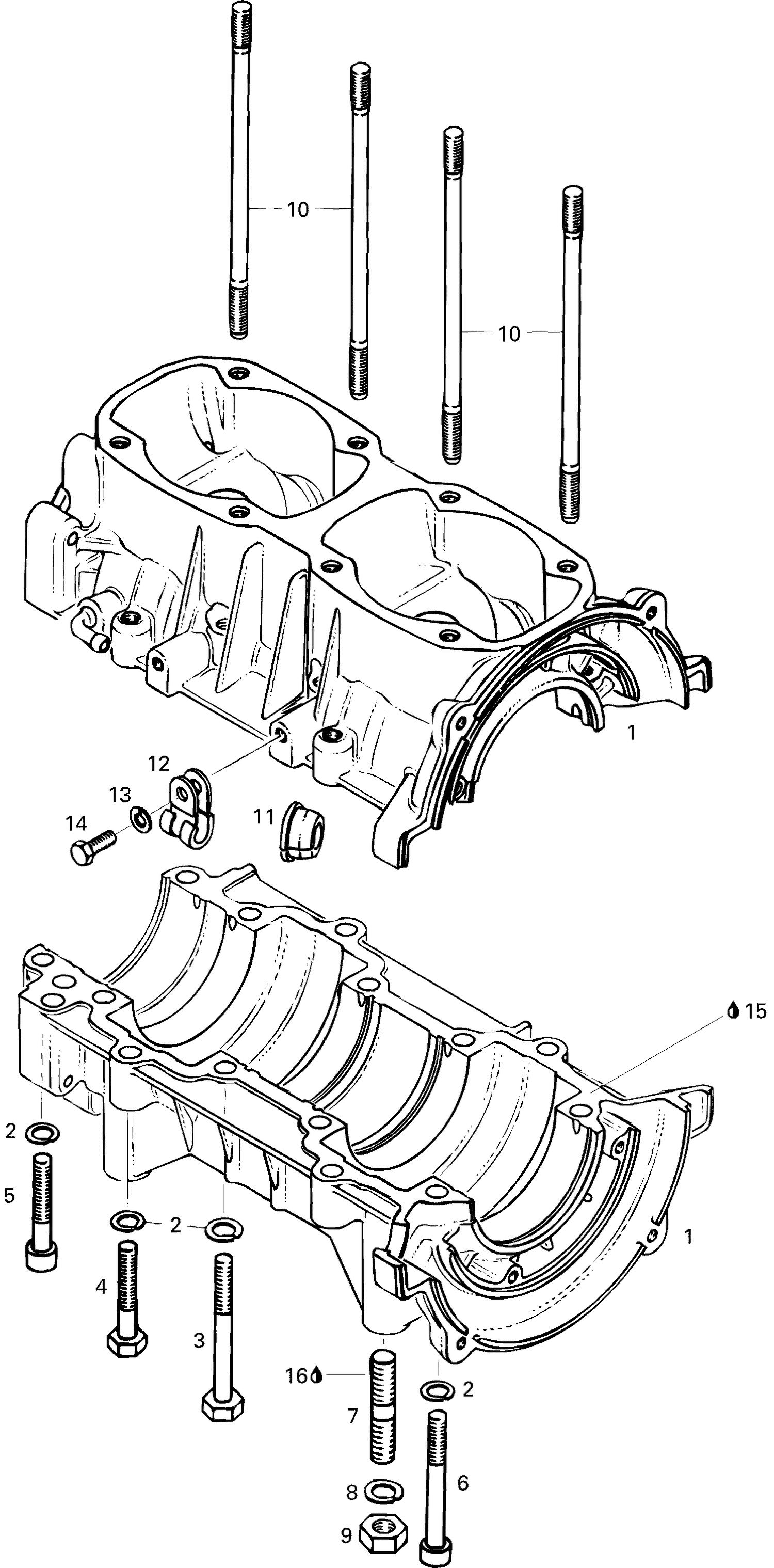

| Ref | Part Number | Description |
|---|
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
420841201 |
Hex. Screw M8 X 70 |
| 4 |
207084544 |
Hex. Screw M8 X 45 This part replaces 222084565. |
| 5 |
420841561 |
Socket Head Screw M8 X 45 |
| 6 |
420841841 |
SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership |
| 7 |
420940400 |
Stud M10 x 25 |
| 8 |
420945753 |
Lock Washer |
| 9 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 10 |
420840556 |
Stud M8 X 173.5 This part replaces 420840555. |
| 11 |
420960287 |
Cable Grommet |
| 12 |
414176000 |
Open Clamp |
| 13 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 15 |
413707100 |
Sealant, 100 gr |
