Home / BRP / Can-Am ATV / 2024 / 002 - ATV - North America - Outlander PRO Series / 001 - Outlander PRO HD5 4X4 - North America, 2024 / North America - Outlander PRO HD5 4X4 - 1HRA - STD Package - Desert Tan, 2024 0001HRA00 / 04- Drive - Front Wheels

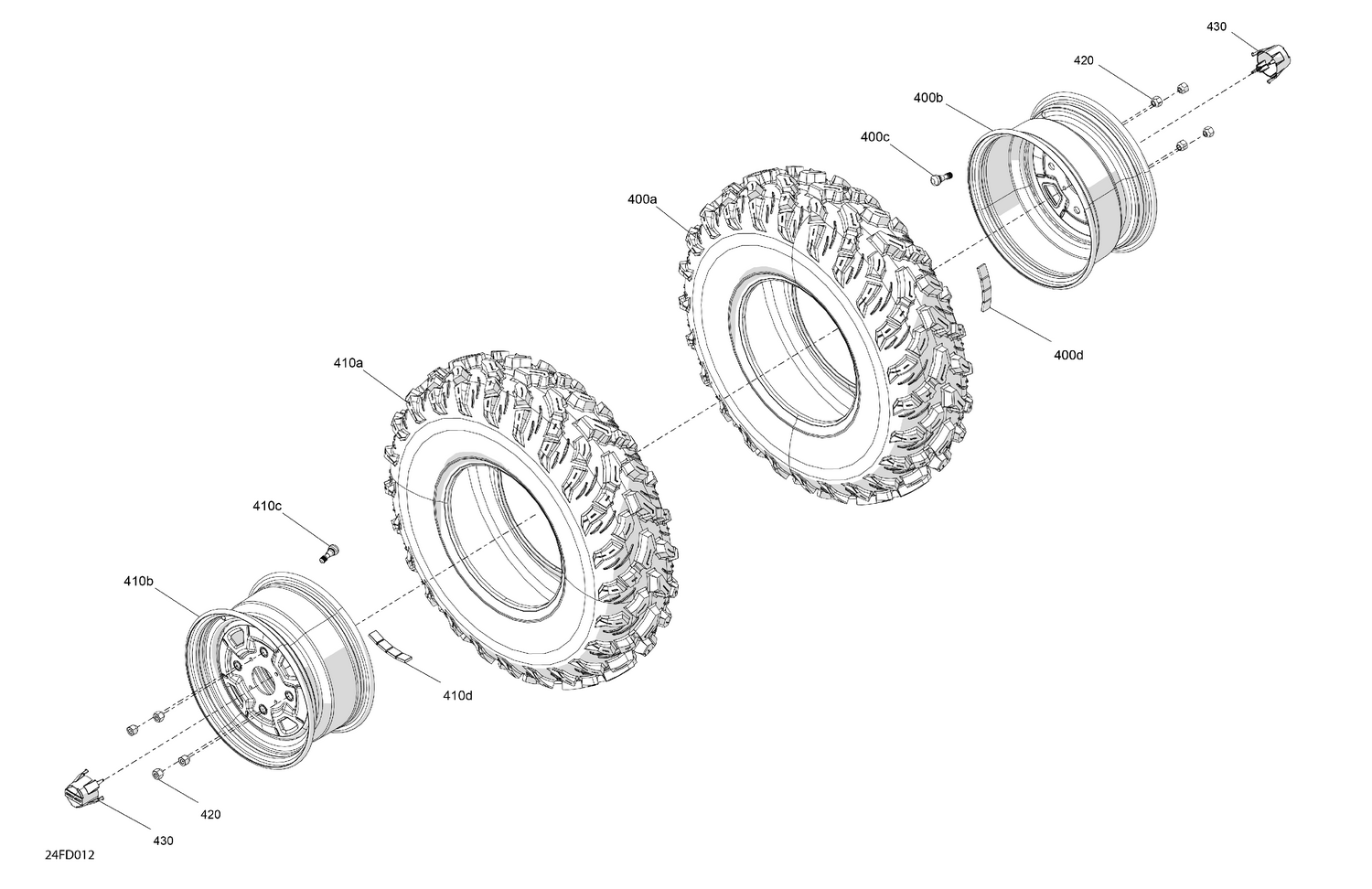

04- Drive - Front Wheels

04- Drive - Front Wheels

Parts (7)

RefPart NumberDescription
400a 705403489 Tire 26 X 8-12
400b 705401199 Black,12" X 6 Rim
400c 705402595 Tire Valve Ass'y
410a 705403489 Tire 26 X 8-12
410b 705401199 Black,12" X 6 Rim
410c 705402595 Tire Valve Ass'y
420 250100042 Steel Wheel Nut
