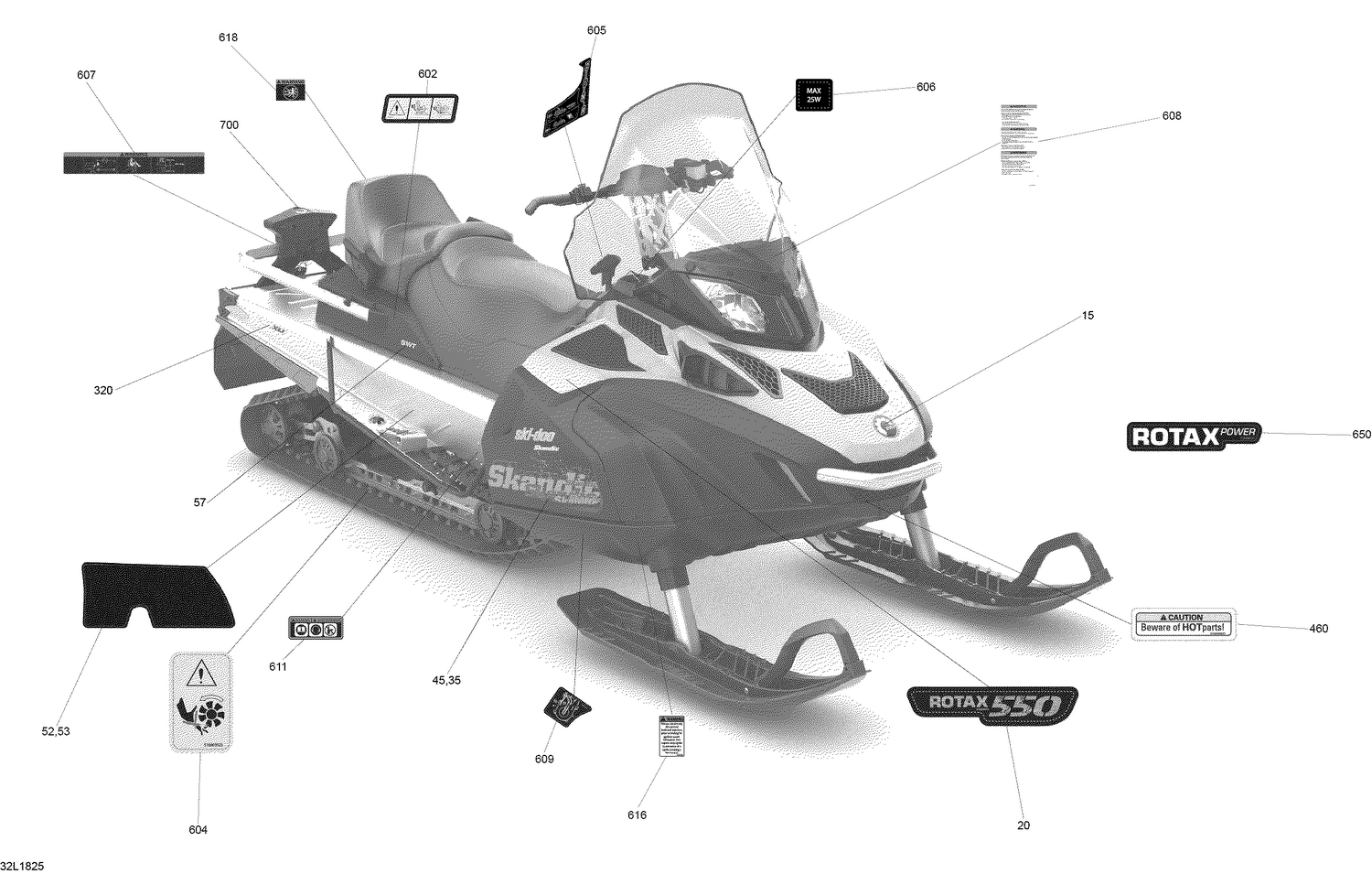

09- Decals Scandic - SWT - 550F
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm This part replaces 516006888. |
| 20 | 516004543 | Hood Decal "Rotax 550" |
| 35 | 516006799 | LH Side Panel Decal " Ski-Doo Skandic " |
| 45 | 516006800 | RH Sidepanel Decal "Ski-Doo Skandic" |
| 52 | 516005121 | RH Tunnel Decal |
| 53 | 516005122 | LH Tunnel Decal |
| 57 | 516005048 | Decal " SWT " |
| 320 | 516007167 | REV XU Decal |
| 460 | 516006903 | Hot Parts Decal |
| 602 | 516005111 | Instruction Decal, Back Seat Locking |
| 604 | 516003923 | WARNING DECAL - Call your local BRP dealership |
| 605 | 516004305 | Instruction Label, Transmission |
| 606 | 516003918 | Power Outlet Decal (25W) |
| 607 | 516008675 | Warning Label |
| 608 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 609 | 516003925 | Checking Label, Transmission |
| 611 | 516002703 | Decal, Europe |
| 616 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 618 | 516007584 | Warning Decal |
| 650 | 516006331 | Decal ROTAX POWER |
