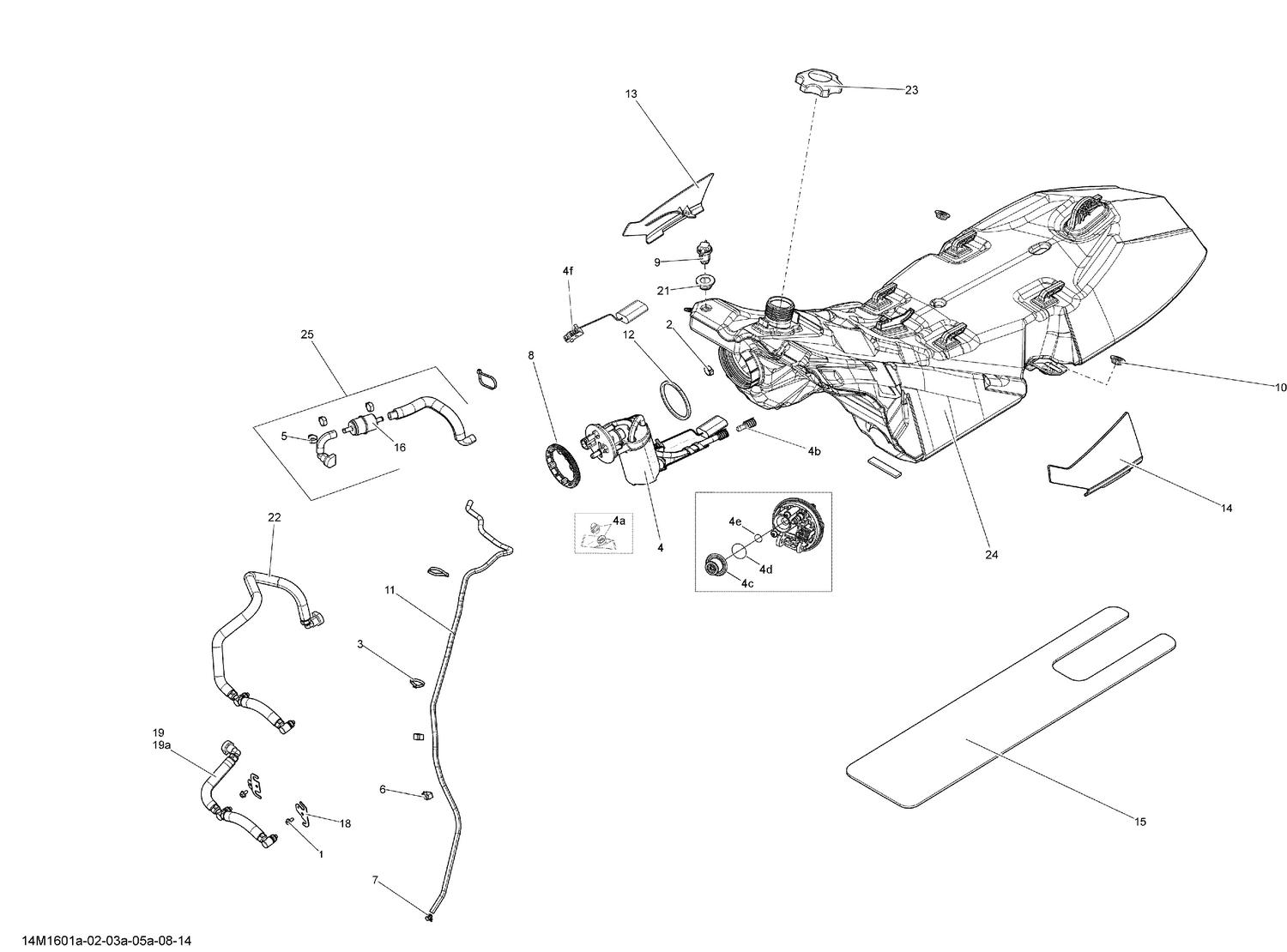

02- Fuel System
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207551044 | Hex. Flange Screw M5 X 10 |
| 2 | 293650053 | Crimp Clamp |
| 3 | 293750008 | Tie Wrap 368 mm |
| 3 | 414115200 | Tie-Rap 180 mm |
| 4 | 513034258 | PUMP FUEL This part replaces 513033822. |
| 4a | 415129451 | Fuel Filter |
| 4b | 414872100 | Fuel Filter Strainer |
| 4c | 415129821 | Regulator |
| 4d | 415129822 | O-Ring |
| 4e | 415129823 | O-Ring |
| 4f | 415130108 | Fuel Level Sensor This part replaces 415129671. |
| 5 | 293650125 | Oetiker Clamp |
| 6 | 414227300 | Clip |
| 8 | 513033180 | Ring |
| 9 | 513033842 | Check Valve This part replaces 513033188. |
| 10 | 513033326 | Shoulder Bushing |
| 11 | 219704410 | Polyurethane Hose 10000Mm Long |
| 12 | 513033334 | Gasket |
| 13 | 513033418 | RH Cap |
| 14 | 513033419 | LH Cap |
| 15 | 513033588 | Insulating Foam |
| 16 | 513034047 | Fuel Filter This part replaces 513033719. |
| 18 | 513033542 | Bracket |
| 19 | 513033594 | Hose Ass'y |
| 19a | 513033135 | Locking Clip |
| 21 | 513033596 | Grommet |
| 22 | 513033648 | Fuel Hose Ass'y |
| 23 | 513033722 | Fuel Tank Cap 91 Octane |
| 24 | 513033667 | Fuel Tank |
