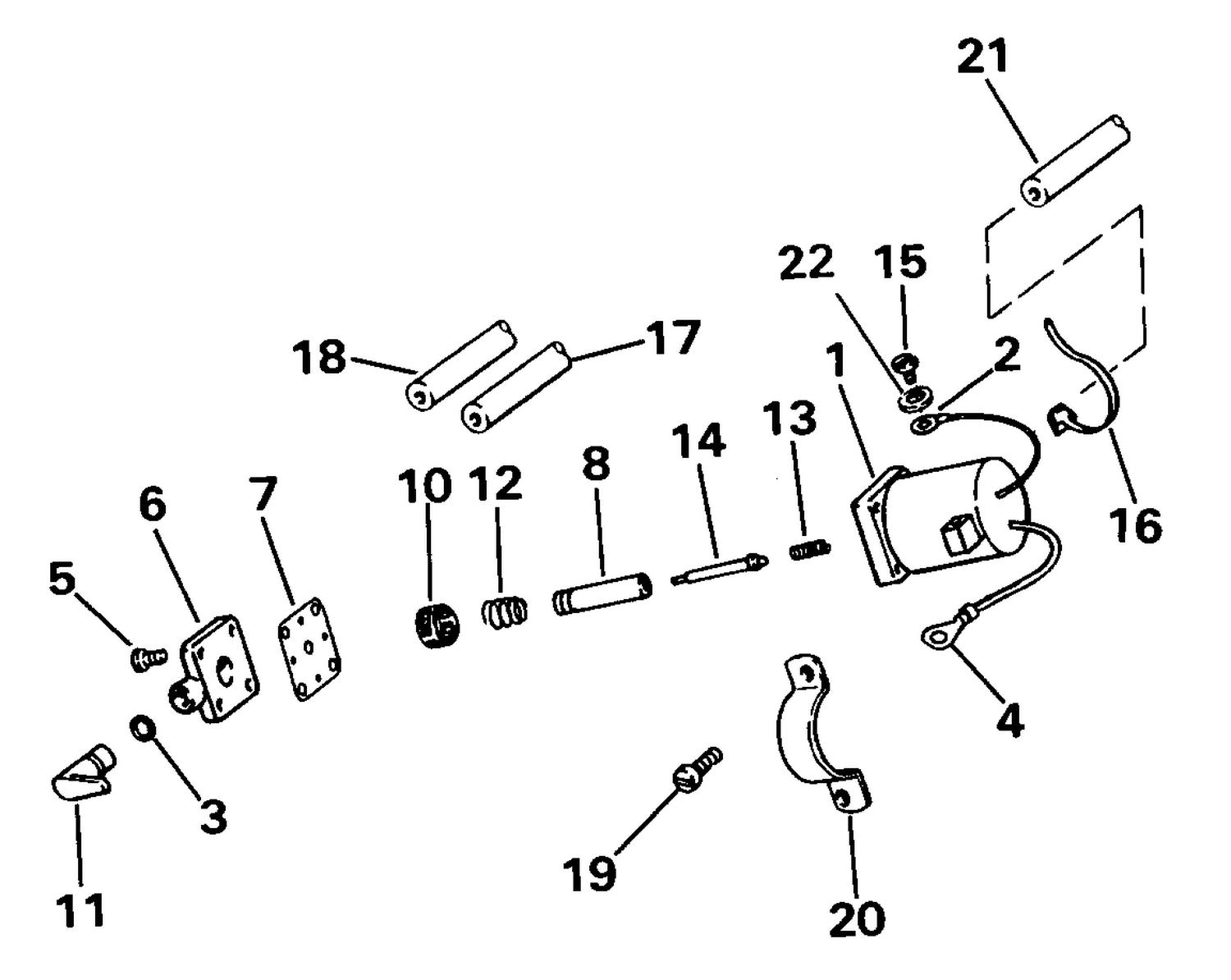

PRIMER SYSTEM - ELECTRIC START
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0397909. |
| 6 | 0511807 | COVER&GASKET AY |
| 7 | 0333448 | GASKET |
| 15 | 0329182 | VIS, borne |
| 17 | HOSE, | Primer solenoid to lower carb., 7 in. (178mm) |
| 18 | HOSE, | Primer solenoid to upper carb., 10 1/2 in. (267mm) |
| 20 | 0330118 | CLAMP |
| 21 | HOSE, | Fuel manifold to primer solenoid 8 1/2 in. (216mm) |
